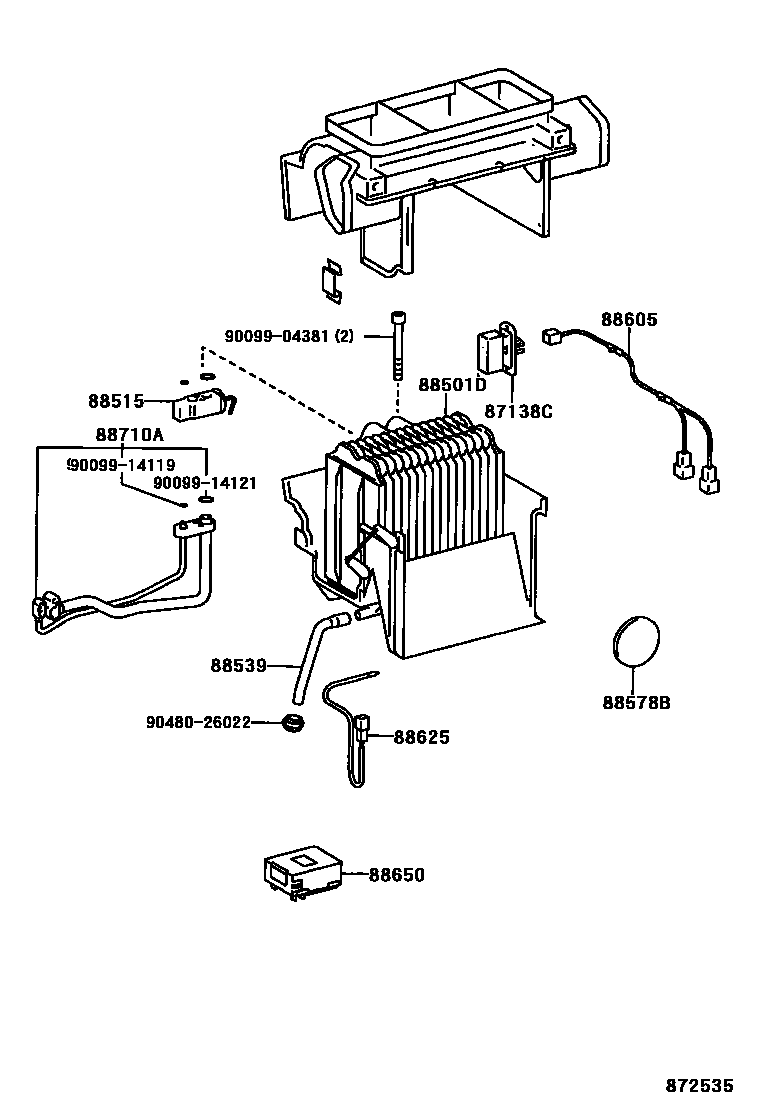

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87138CRESISTOR, BLOWER

main87138-20310iAT190,CT190,ST191..UKP199601-199710

88501DEVAPORATOR SUB-ASSY, COOLER, NO.2

main88501-05010iAT190,CT190,ST191..UKP199601-199710

main88501-20291iST191..UKP;AT190..UKP..RHD199601-199710

DEALER OPTION

88515VALVE, COOLER EXPANSION

main88515-20100iAT190,CT190,ST191..UKP199601-199710

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20270iAT190,ST191..UKP..RHD199601-199710

main88539-20280iAT190,CT190,ST191..UKP..LHD199601-199710

88578BPACKING, COOLING UNIT, NO.1

main88578-20490iAT190,ST191..UKP..RHD199601-199710

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-2D180iAT190,ST191..UKP..RHD199601-199710

main88605-2D230iAT190,CT190,ST191..UKP..LHD199601-199710

88625THERMISTOR, COOLER, NO.1

main88625-20390iAT190,ST191..UKP..RHD199601-199710

main88625-20400iAT190,CT190,ST191..UKP..LHD199601-199710

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-05030iAT190..UKP199601-199710

main88650-05040iST191..UKP199601-199710

main88650-2B390iCT190..UKP199601-199710

88710ATUBE ASSY, AIR CONDITIONER

main88710-20380iAT190,ST191..UKP..RHD199601-199710

main88710-20590iAT190,CT190,ST191..UKP..LHD199601-199710

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9048026022

main90480-26022

13 parts on this diagram · 2 diagrams in section
