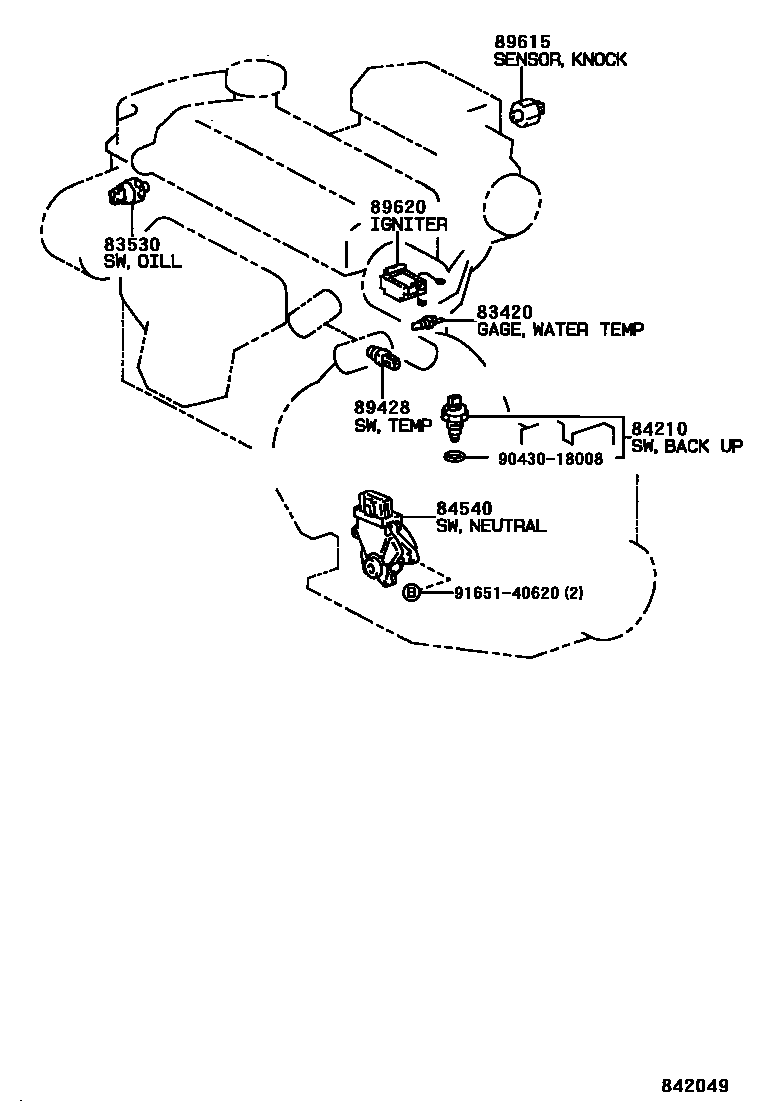

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL SWITCH 0006 1INSTRUMENT PANEL SWITCH 0007 1COWL 0008 1COWL 0009 1COMBINATION SWITCH 0010 1ROOF,DOOR,FLOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-05010iAT190..UKP199601-199710

JAEGER

main83420-20020iCT190..UKP199601-199710

main83420-20040iAT190,ST191..UKP199601-199710

YAZAKI

main83420-AA010iST191..UKP199605-199710

TMMK

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iAT190..UKP199601-199710

JAEGER

main83530-30060iCT190..UKP199601-199710

sub83530-60030

main83530-30090iAT190..UKP199601-199710

YAZAKI

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT190,CT190,ST191..UKP..MTM199601-199710

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAT190..UKP..ATM199601-199710

TOKAIRIKA

main84540-12210iAT190..UKP..ATM199601-199710

MATUSITA

main84540-16050iST191..UKP..ATM199601-199710

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAT190..UKP199601-199710

main89428-33010iCT190,ST191..UKP199601-199710

89615SENSOR, KNOCK CONTROL

main89615-33020iST191..UKP199601-199710

sub89615-32030

89620IGNITER ASSY

main89620-12440iAT190..UKP199601-199708

main89620-16260iAT190..UKP199708-199710

main89621-16020iST191..UKP199601-199710

sub89621-26010

9043018008

main90430-18008

9165140620

main91651-40620

9 parts on this diagram · 10 diagrams in section
