E
EPC Data

REAR DOOR PANEL & GLASS

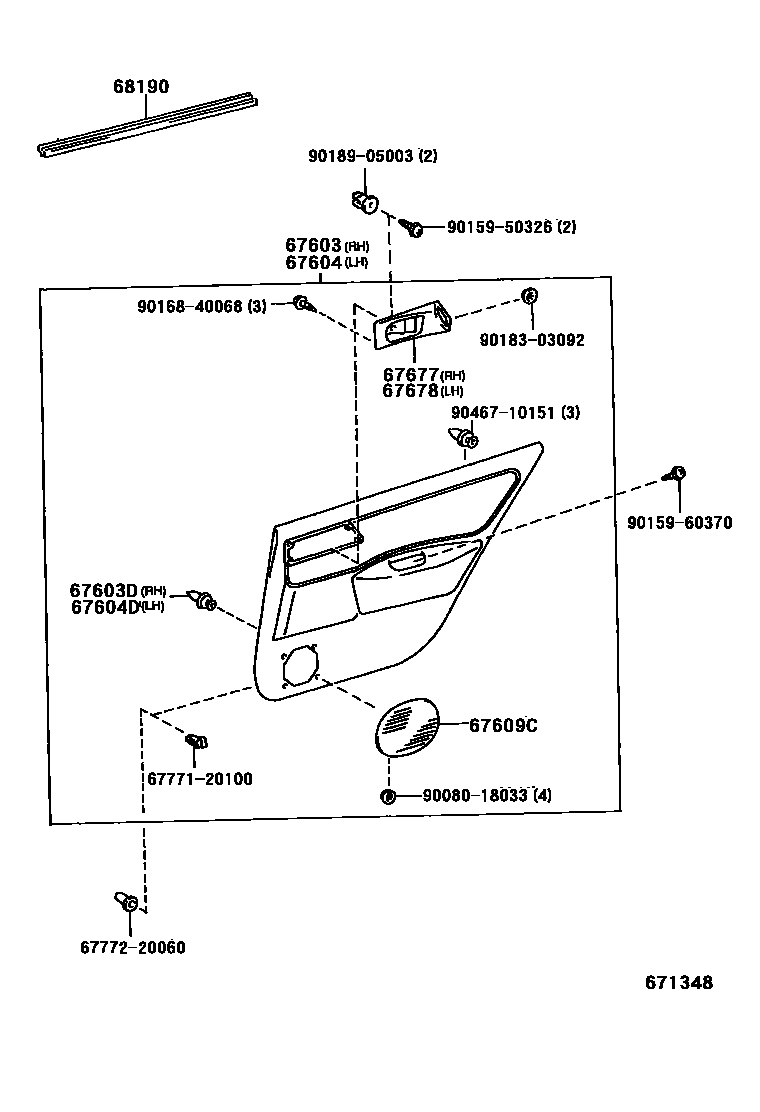

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-05390-B1i199601-199710
SHADOW GRAY,TRIM1#
main67630-05390-J1i199601-199710
DK.BLUE,TRIM8#
main67630-05430-B1i199601-199710
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67630-05430-J1i199601-199710
W(POWER WINDOW),DK.BLUE,TRIM8#
main67630-05440-B1i199601-199710
SHADOW GRAY,TRIM1#
main67630-05440-J1i199601-199710
DK. BLUE,TRIM8#
67603DRETAINER, REAR DOOR TRIM, RH
main67771-20110i199601-199710
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-05390-B1i199601-199710
SHADOW GRAY,TRIM1#
main67640-05390-J1i199601-199710
DK.BLUE,TRIM8#
main67640-05430-B1i199601-199710
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67640-05430-J1i199601-199710
W(POWER WINDOW),DK.BLUE,TRIM8#
main67640-05440-B1i199601-199710
SHADOW GRAY,TRIM1#
main67640-05440-J1i199601-199710
DK. BLUE,TRIM8#
67604DRETAINER, REAR DOOR TRIM, LH
main67771-20110i199601-199710
67609CGRILLE SUB-ASSY, REAR DOOR SPEAKER
main67653-05020-B0i199601-199710
SHADOW GRAY,TRIM1#
main67653-05020-J0i199601-199710
DK. BLUE,TRIM8#
67677COVER, SIDE TRIM BOARD, REAR RH
main67677-05020-B0i199601-199710
SHADOW GRAY,TRIM1#
main67677-05020-J0i199601-199710
DK.BLUE,TRIM8#
67678COVER, SIDE TRIM BOARD, REAR LH
main67678-05020-B0i199601-199710
SHADOW GRAY,TRIM1#
main67678-05020-J0i199601-199710
DK.BLUE,TRIM8#
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
main68173-05010i199601-199604
RH
sub68173-05030
main68173-05030i199604-199710
RH
main68174-05010i199601-199604
LH
sub68174-05030
main68174-05030i199604-199710
LH
6777120100WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20100
6777220060WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20060
9008018033
main90080-18033
9015950326
main90159-50326
9015960370
main90159-60370
9016840068
main90168-40068
9018303092
main90183-03092
9018905003
main90189-05003
9046710151
main90467-10151

17 parts on this diagram · 2 diagrams in section
