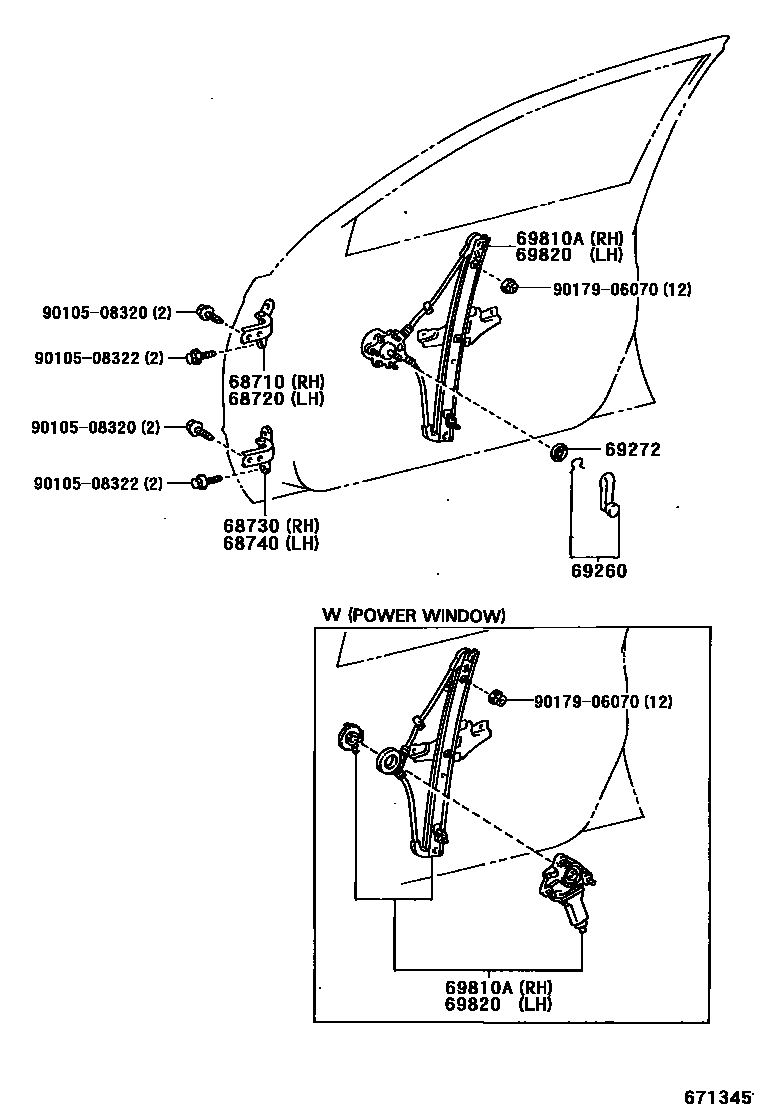

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-05010iAT190,CT190,ST191..UKP199601-199710

sub68710-12150

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-05010iAT190,CT190,ST191..UKP199601-199710

sub68720-12150

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-05010iAT190,CT190,ST191..UKP199601-199710

sub68730-12110

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-05010iAT190,CT190,ST191..UKP199601-199710

sub68740-12110

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-05010-B0×2iAT190..UKP199601-199710

SHADOW GRAY,TRIM1#

main69260-05010-J0×2iAT190..UKP199601-199710

DARK BLUE,TRIM8#

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iAT190..UKP199601-199710

NATURAL WHITE,TRIM1#,8#

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-05010iAT190..UKP199601-199710

main69810-05020iCT190,ST191..UKP199601-199710

W(POWER WINDOW)

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-05010iAT190..UKP199601-199710

main69820-05020iCT190,ST191..UKP199601-199710

W(POWER WINDOW)

9010508320

main90105-08320

9010508322

main90105-08322

9017906070

main90179-06070

11 parts on this diagram · 1 diagram in section
