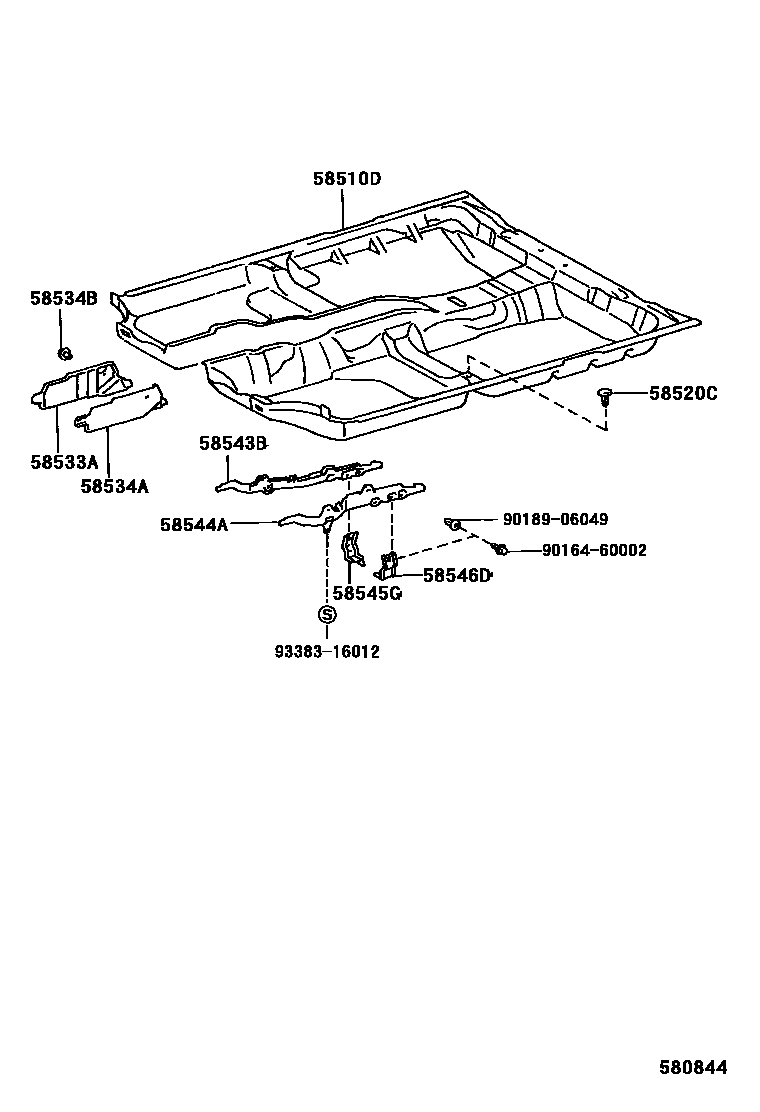

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-05014-B0iAT190,ST191..UKP..RHD199601-199608

GRAY,TRIM1#

main58510-05014-J0iAT190,ST191..UKP..RHD199601-199608

DK. BLUE,TRIM8#

main58510-05024-B0iAT190,CT190,ST191..UKP..LHD199601-199608

GRAY,TRIM1#

sub58510-05140

main58510-05024-J0iAT190,CT190,ST191..UKP..LHD199601-199608

DK. BLUE,TRIM8#

sub58510-05140

main58510-05130-B0iAT190,ST191..UKP..RHD199608-199710

GRAY,TRIM1#

main58510-05130-J0iAT190,ST191..UKP..RHD199608-199710

DK. BLUE,TRIM8#

main58510-05140-B0iAT190,CT190,ST191..UKP..LHD199608-199710

GRAY,TRIM1#

main58510-05140-J0iAT190,CT190,ST191..UKP..LHD199608-199710

DK. BLUE,TRIM8#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0iAT190,CT190,ST191..UKP199601-199710

BLACK,TRIM1#,8#

sub90467-06016

sub90467-07049

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-05010iAT190,CT190,ST191..UKP..LHD199601-199710

58534AMAT, TRANSMISSION COVER

main58534-05010iAT190,ST191..UKP..RHD199601-199710

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-07042-C0iAT190,CT190,ST191..UKP199601-199710

BLACK,TRIM1#,8#

sub90467-07042

sub90467-06175

58543BBRACKET, FLOOR CARPET, RH

main58543-05010iAT190,ST191..UKP..RHD199601-199710

main58543-05020iAT190,CT190,ST191..UKP..LHD199601-199710

58544ABRACKET, FLOOR CARPET, LH

main58544-05010iAT190,ST191..UKP..RHD199601-199710

main58544-05020iAT190,CT190,ST191..UKP..LHD199601-199710

58545GBRACKET, FLOOR CARPET, NO.2 RH

main58545-20010iAT190,CT190,ST191..UKP199601-199710

58546DBRACKET, FLOOR CARPET, NO.2 LH

main58546-20010iAT190,CT190,ST191..UKP199601-199710

9016460002

main90164-60002

9018906049

main90189-06049

9338316012

main93383-16012

12 parts on this diagram · 1 diagram in section
