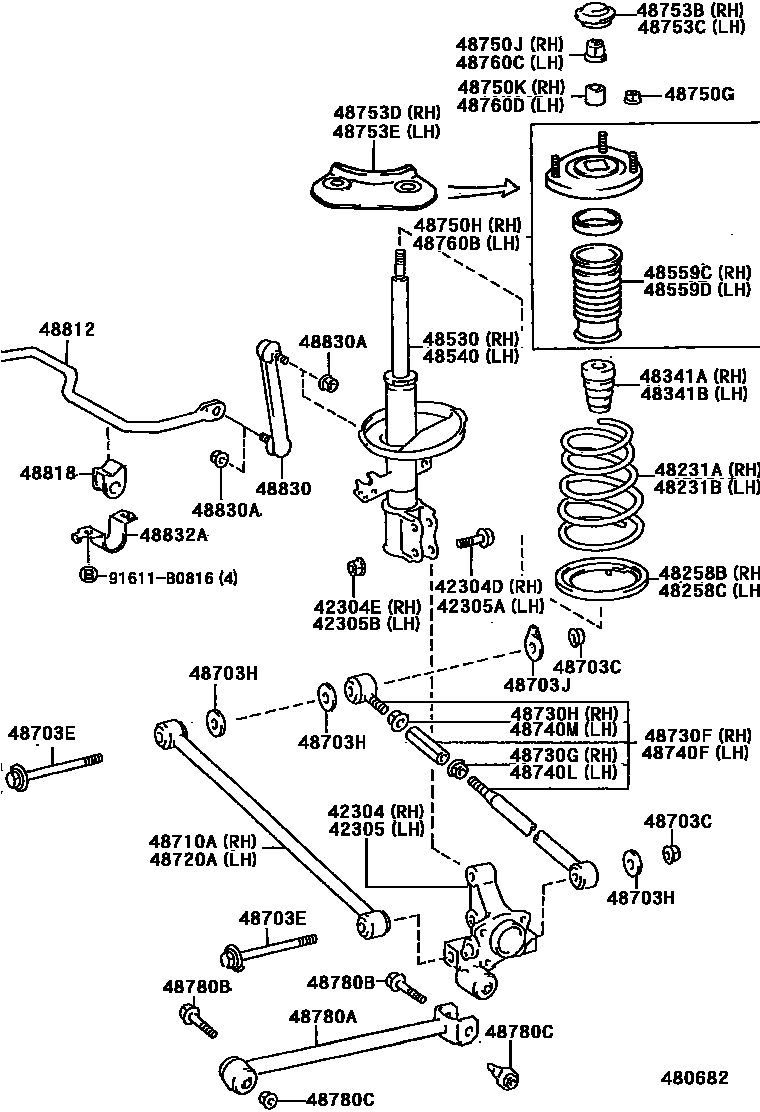

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-05031iAT190,CT190,ST191..UKP¥16,300199601-199710

sub42304-20320¥16,300

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001iAT190,CT190,ST191..UKP¥410199601-199710

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-15001iAT190,CT190,ST191..UKP¥350199601-199710

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-05031iAT190,CT190,ST191..UKP¥16,300199601-199710

sub42305-20320¥16,300

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001iAT190,CT190,ST191..UKP¥410199601-199710

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-15001iAT190,CT190,ST191..UKP¥350199601-199710

48231ASPRING, COIL, REAR RH

main48231-05111iAT190,ST191..UKP¥10,200199601-199611

sub48231-05112¥10,200

main48231-05112iAT190,ST191..UKP¥10,200199611-199710

main48231-05130iCT190..UKP199601-199606

ROUGH ROAD PACKAGE

sub48231-05131¥8,700

main48231-05131iAT190,ST191..UKP¥8,700199606-199710

ROUGH ROAD PACKAGE

48231BSPRING, COIL, REAR LH

main48231-05111iAT190,ST191..UKP¥10,200199601-199611

sub48231-05112¥10,200

main48231-05112iAT190,ST191..UKP¥10,200199611-199710

main48231-05130iAT190,ST191..UKP199601-199606

ROUGH ROAD PACKAGE

sub48231-05131¥8,700

main48231-05131iAT190,ST191..UKP¥8,700199606-199710

ROUGH ROAD PACKAGE

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-05010iAT190,CT190,ST191..UKP199601-199710

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-05010iAT190,CT190,ST191..UKP199601-199710

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-05010iAT190,CT190,ST191..UKP199601-199710

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-05010iAT190,CT190,ST191..UKP199601-199710

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09130iAT190,CT190,ST191..UKP¥27,300199601-199710

main48530-09140iAT190,CT190,ST191..UKP¥28,400199601-199710

ROUGH ROAD PACKAGE

sub48530-09130¥27,300

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-09130iAT190,CT190,ST191..UKP¥27,300199601-199710

main48540-09140iAT190,CT190,ST191..UKP¥28,400199601-199710

ROUGH ROAD PACKAGE

sub48540-09130¥27,300

48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1

main48754-05010iAT190,CT190,ST191..UKP199601-199710

48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1

main48754-05010iAT190,CT190,ST191..UKP199601-199710

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-14019iAT190,CT190,ST191..UKP¥130199601-199710

48703EBOLT(FOR REAR SUSPENSION ARM)

main90901-09001iAT190,CT190,ST191..UKP¥1,460199601-199710

*14-1.50PX260-26,BODY SIDE

main90901-19001iAT190,CT190,ST191..UKP¥1,260199601-199710

*14-1.50PX260-26,CARRIER SIDE

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017iAT190,CT190,ST191..UKP¥310199601-199710

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-20020iAT190,CT190,ST191..UKP¥3,780199601-199710

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-05030iAT190,CT190,ST191..UKP¥7,300199601-199710

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-05030iAT190,CT190,ST191..UKP¥7,300199601-199710

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-05040iAT190,CT190,ST191..UKP¥7,300199601-199710

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16022iAT190,CT190,ST191..UKP¥240199601-199710

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16021iAT190,CT190,ST191..UKP¥230199601-199710

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-05040iAT190,CT190,ST191..UKP199601-199710

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16022iAT190,CT190,ST191..UKP¥240199601-199710

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16021iAT190,CT190,ST191..UKP¥230199601-199710

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122iAT190,CT190,ST191..UKP¥440199601-199710

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-05010iAT190,CT190,ST191..UKP199601-199710

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-14015iAT190,CT190,ST191..UKP¥130199601-199710

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iAT190,CT190,ST191..UKP¥270199601-199710

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-20040iAT190,CT190,ST191..UKP¥660199601-199710

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-20040iAT190,CT190,ST191..UKP¥660199601-199710

48753DCOVER, REAR SUSPENSION SUPOPORT, NO.2 RH

main48753-20070iAT190,CT190,ST191..UKP¥850199601-199710

48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH

main48753-20070iAT190,CT190,ST191..UKP¥850199601-199710

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-05010iAT190,CT190,ST191..UKP199601-199710

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-14015iAT190,CT190,ST191..UKP¥130199601-199710

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iAT190,CT190,ST191..UKP¥270199601-199710

48780AROD ASSY, STRUT, REAR

main48780-05010iAT190,CT190,ST191..UKP199601-199710

48780BBOLT(FOR STRUT ROD)

main90119-12131iAT190,CT190,ST191..UKP¥390199601-199710

48780CNUT(FOR STRUT ROD)

main90179-12091iAT190,CT190,ST191..UKP¥120199601-199710

CARRIER SIDE

main90179-12114iAT190,CT190,ST191..UKP¥260199601-199710

BODY SIDE

48812BAR, STABILIZER, REAR

main48812-05010iAT190,CT190,ST191..UKP199601-199710

48818BUSH, STABILIZER, REAR

main48818-05010iAT190,CT190,ST191..UKP199601-199710

48830LINK ASSY, REAR STABILIZER

main48830-05011iAT190,CT190,ST191..UKP199601-199706

main48830-20010iAT190,CT190,ST191..UKP¥5,400199706-199710

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054iAT190,CT190,ST191..UKP¥110199601-199710

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20080iAT190,CT190,ST191..UKP¥530199601-199710

91611B0816

main91611-B0816¥140

48 parts on this diagram · 1 diagram in section
