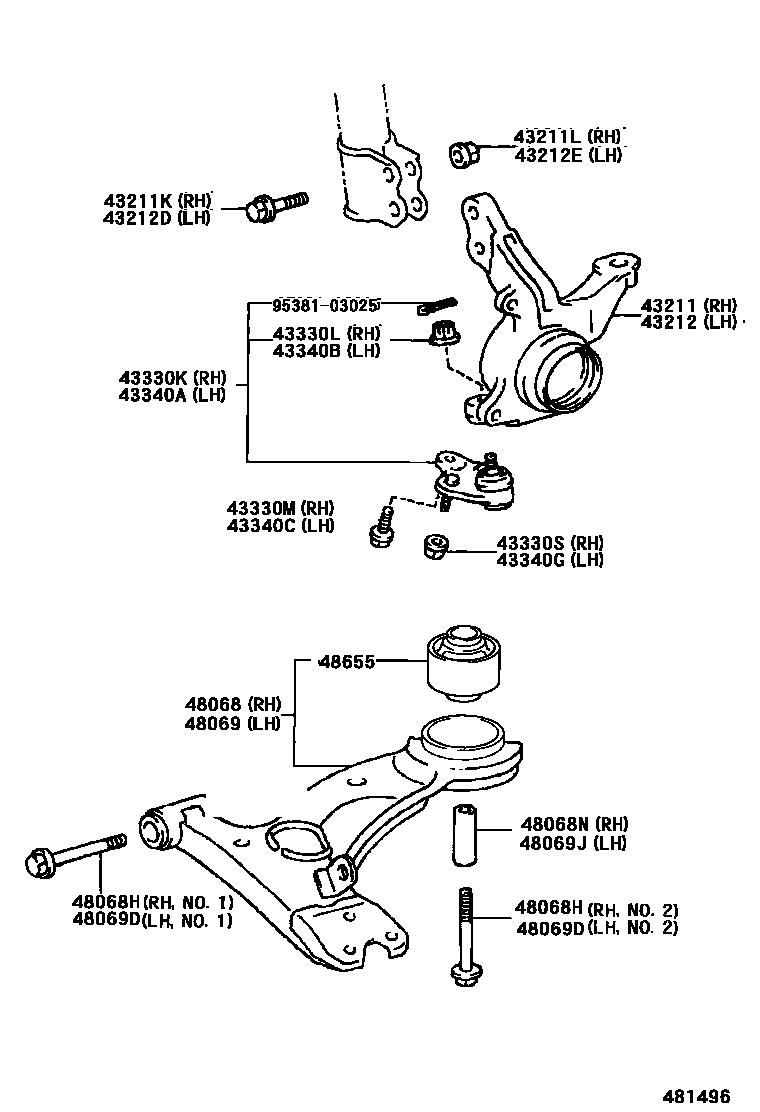

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15.0
OD=13.9
OD=13.3
OD=12.4
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15.0
OD=13.9
OD=13.3
OD=12.4
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
43330SNUT (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
43340GNUT (FOR FRONT LOWER BALL JOINT LH)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
ARM NO.1
ARM NO.2
48068NCOLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
ARM NO.1
ARM NO.2
48069JCOLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48655BUSH, LOWER ARM, NO.2
sub48655-20140
9538103025
main95381-03025
22 parts on this diagram · 2 diagrams in section
