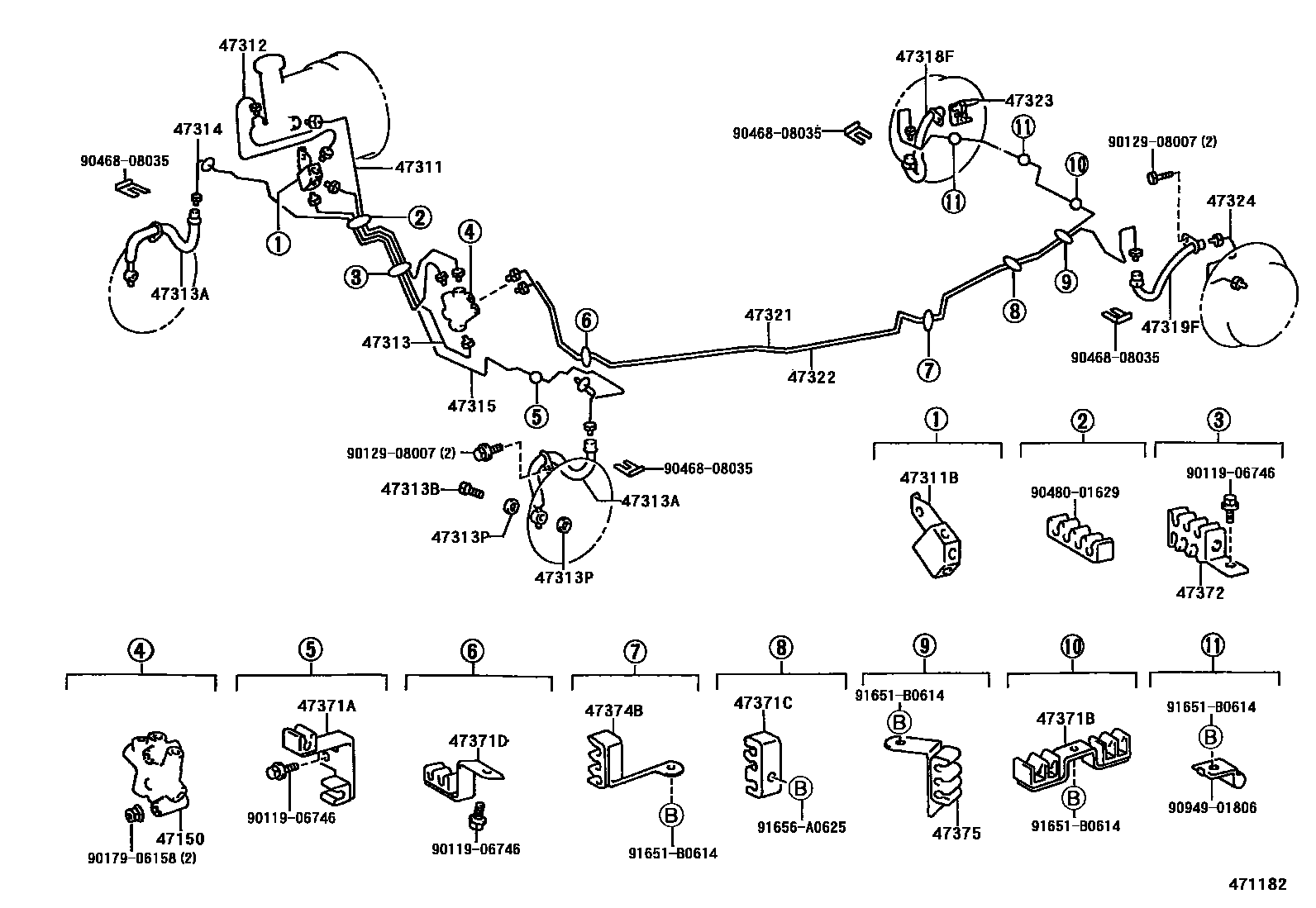

BRAKE TUBE & CLAMP

0001 1 0002 1

47150VALVE ASSY, PROPORTIONING

main47150-12080iAT190,CT190,ST191..UKP199601-199710

47311TUBE, FRONT BRAKE, NO.1

main47311-05020iAT190,CT190,ST191..UKP..LHD199601-199710

main47311-05100iAT190,ST191..UKP..RHD199601-199710

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-05010iAT190,ST191..UKP..RHD199601-199710

main47391-05020iAT190,CT190,ST191..UKP..LHD199601-199710

47312TUBE, FRONT BRAKE, NO.2

main47311-05050iAT190,CT190,ST191..UKP..LHD199601-199710

main47312-05010iAT190,ST191..UKP..RHD199601-199710

47313TUBE, FRONT BRAKE, NO.3

main47313-05020iAT190,CT190,ST191..UKP..LHD199601-199710

main47313-05090iAT190,ST191..UKP..RHD199601-199710

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94001iAT190,CT190,ST191..UKP199601-199710

RH

main90080-94015iAT190,CT190,ST191..UKP199601-199710

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAT190,CT190,ST191..UKP199601-199710

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iAT190,CT190,ST191..UKP199601-199710

47314TUBE, FRONT BRAKE, NO.4

main47314-05010iAT190,ST191..UKP..RHD199601-199710

main47314-05020iAT190,CT190,ST191..UKP..LHD199601-199710

47315TUBE, FRONT BRAKE, NO.5

main47315-05020iAT190,CT190,ST191..UKP..LHD199601-199710

main47315-05080iAT190,ST191..UKP..RHD199601-199710

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94016iAT190,CT190,ST191..UKP199601-199710

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94017iAT190,CT190,ST191..UKP199601-199710

47321TUBE, REAR BRAKE, NO.1

main47321-05030iAT190,CT190,ST191..UKP199601-199710

47322TUBE, REAR BRAKE, NO.2

main47322-05030iAT190,CT190,ST191..UKP199601-199710

47323TUBE, REAR BRAKE, NO.3

main47323-05010iAT190,CT190,ST191..UKP199601-199710

47324TUBE, REAR BRAKE, NO.4

main47324-05010iAT190,CT190,ST191..UKP199601-199710

47371ACLAMP, BRAKE TUBE, NO.1

main47371-20311iAT190,ST191..UKP..RHD199601-199710

main47371-20340iAT190,CT190,ST191..UKP..LHD199601-199710

47371BCLAMP, BRAKE TUBE, NO.6

main47371-20500iAT190,CT190,ST191..UKP199601-199710

47371CCLAMP, BRAKE TUBE, NO.7

main47371-20380iAT190,CT190,ST191..UKP199601-199710

47371DCLAMP, BRAKE TUBE, NO.8

main47371-20600iAT190,CT190,ST191..UKP199601-199710

47372CLAMP, BRAKE TUBE, NO.2

main47371-20200iAT190,ST191..UKP..RHD199601-199710

47374BCLAMP, BRAKE TUBE, NO.4

main47371-20291iAT190,CT190,ST191..UKP199601-199710

47375CLAMP, BRAKE TUBE, NO.5

main47371-20351iAT190,CT190,ST191..UKP199601-199710

9011906746

main90119-06746

9012908007

main90129-08007

9017906158

main90179-06158

9046808035

main90468-08035

9048001629

main90480-01629

9094901806

main90949-01806

91651B0614

main91651-B0614

91656A0625

main91656-A0625

31 parts on this diagram · 2 diagrams in section
