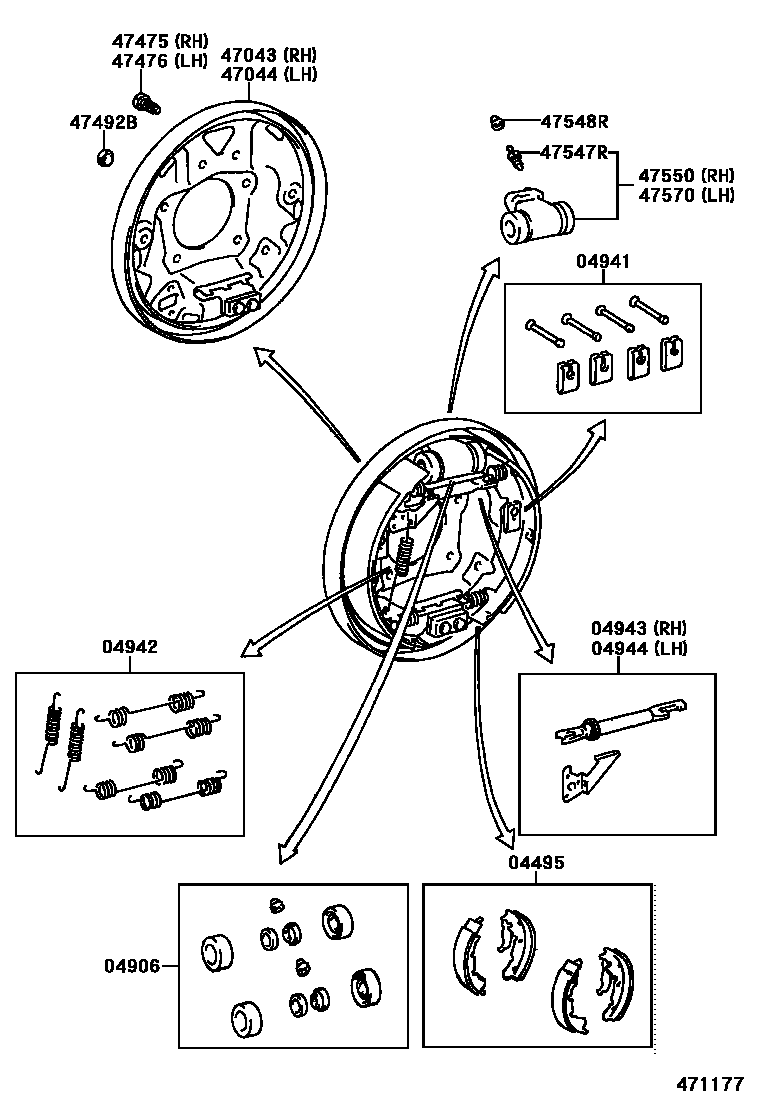

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-05010iAT190,CT190,ST191..UKP199601-199710

sub04495-02110

04906CUP KIT, REAR WHEEL CYLINDER

main04906-05020iAT190,CT190,ST191..UKP199601-199710

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-05010iAT190,CT190,ST191..UKP199601-199710

04942SPRING KIT, REAR BRAKE

main04942-05010iAT190,CT190,ST191..UKP199601-199710

04943STRUT KIT, REAR BRAKE, RH

main04943-05010iAT190,CT190,ST191..UKP199601-199710

04944STRUT KIT, REAR BRAKE, LH

main04944-05010iAT190,CT190,ST191..UKP199601-199710

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-05010iAT190,CT190,ST191..UKP199601-199710

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-05010iAT190,CT190,ST191..UKP199601-199710

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-05010×4iAT190,CT190,ST191..UKP199601-199710

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47553-05010×4iAT190,CT190,ST191..UKP199601-199710

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-05010×4iAT190,CT190,ST191..UKP199601-199710

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-05010×2iAT190,CT190,ST191..UKP199601-199703

main47547-05011×2iAT190,CT190,ST191..UKP199703-199710

sub47547-05012

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-05010×2iAT190,CT190,ST191..UKP199601-199611

main31478-30010×2iAT190,CT190,ST191..UKP199611-199710

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-05020iAT190,CT190,ST191..UKP199601-199710

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-05020iAT190,CT190,ST191..UKP199601-199710

15 parts on this diagram · 1 diagram in section
