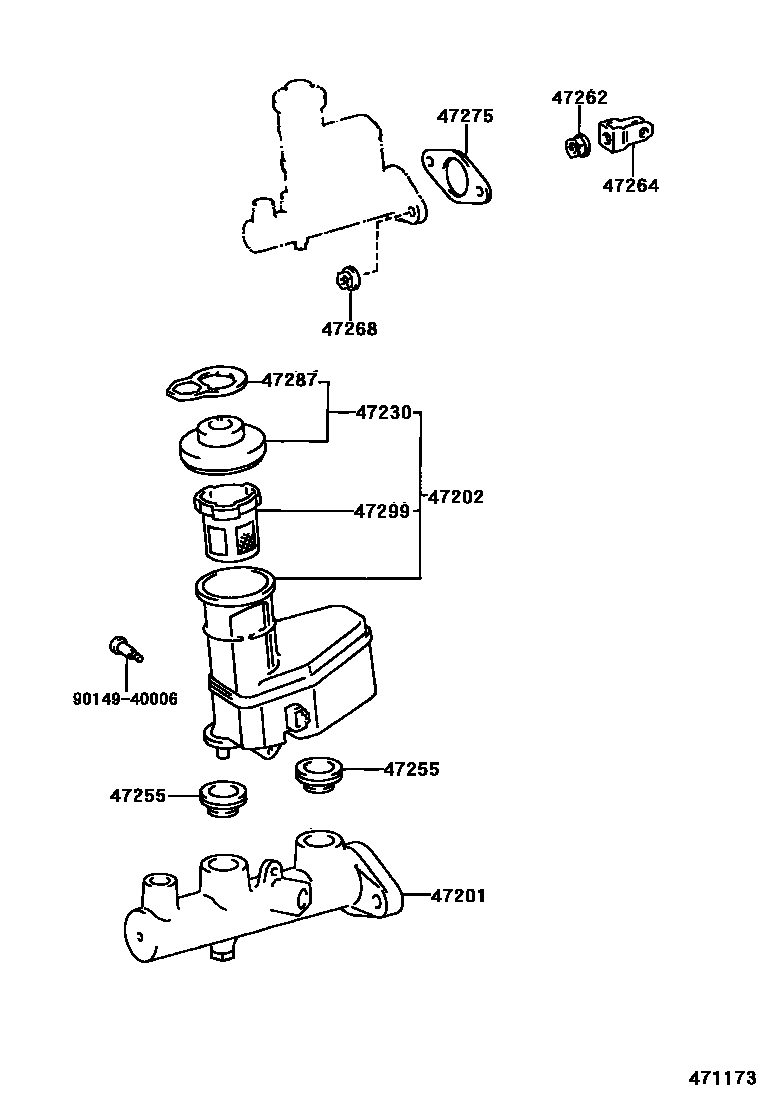

BRAKE MASTER CYLINDER

0001 1TEVES 0002 1TEVES

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-05010iAT190,ST191..UKP..RHD199601-199710

main47201-05020iAT190,CT190,ST191..UKP..LHD199601-199710

sub47201-05010

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20500iAT190,ST191..UKP..RHD199601-199710

main47202-20510iAT190,CT190,ST191..UKP..LHD199601-199701

sub47220-20200

main47220-20200iAT190,CT190,ST191..UKP..LHD199701-199710

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAT190,CT190,ST191..UKP199601-199710

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAT190,CT190,ST191..UKP199601-199710

47262NUT, MASTER CYLINDER PUSH ROD

main47262-05010iAT190,ST191..UKP..RHD199601-199710

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-33010iAT190,ST191..UKP..RHD199601-199710

47268RING, MASTER CYLINDER BOOT RETAINING

main47268-05010iAT190,CT190,ST191..UKP199601-199710

47275GASKET, BRAKE MASTER CYLINDER

main47275-05010iAT190,CT190,ST191..UKP199601-199710

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iAT190,CT190,ST191..UKP199601-199710

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iAT190,CT190,ST191..UKP199601-199710

9014940006

main90149-40006

11 parts on this diagram · 2 diagrams in section
