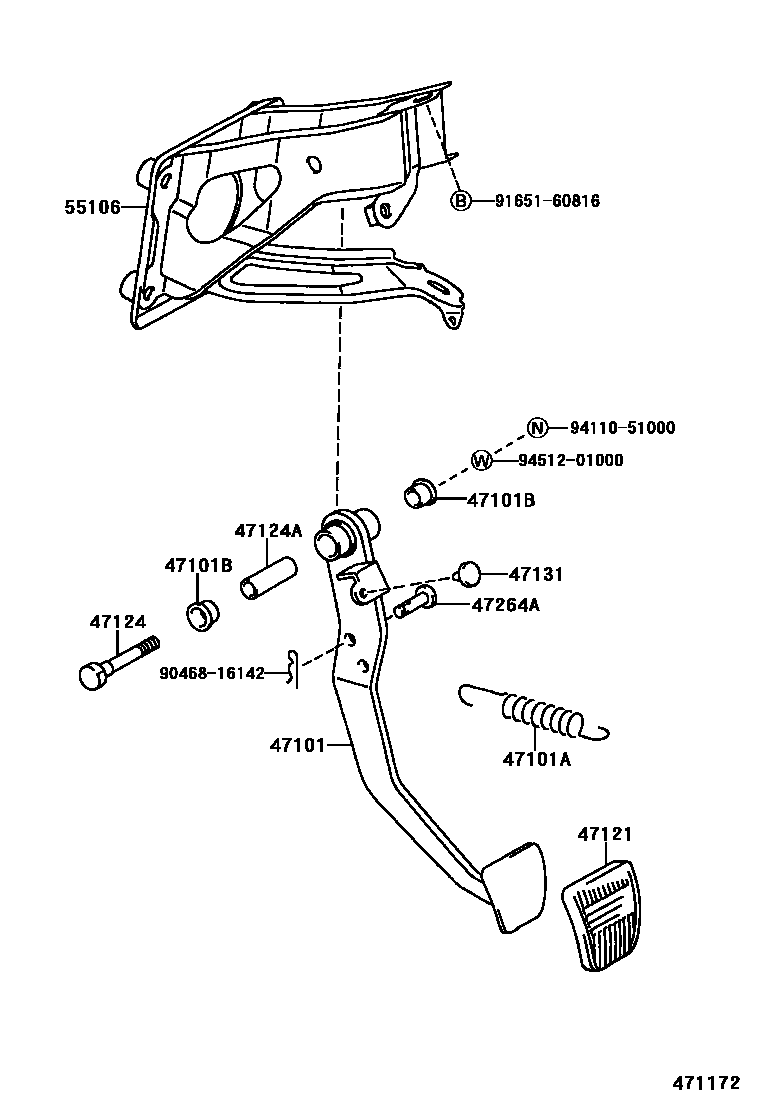

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-05010iAT190,ST191..UKP..RHD..MTM199601-199710

main47101-05020iAT190,CT190,ST191..UKP..LHD..MTM199601-199710

main47101-20460iST191..UKP..RHD..ATM199601-199710

main47101-20480iAT190,ST191..UKP..LHD..ATM199601-199710

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07002iAT190,CT190,ST191..UKP199601-199710

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAT190,CT190,ST191..UKP199601-199710

47121PAD, BRAKE PEDAL

main31321-14020iAT190,CT190,ST191..UKP..MTM199601-199710

main47121-14010iAT190,ST191..UKP..ATM199601-199710

47124SHAFT, BRAKE PEDAL

main90101-10015iAT190,CT190,ST191..UKP199601-199710

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAT190,CT190,ST191..UKP199601-199710

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAT190,CT190,ST191..UKP199601-199710

47264APIN(FOR PUSH ROD)

main47148-12050iAT190,CT190,ST191..UKP199601-199710

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-05011iAT190,ST191..UKP..RHD199601-199710

main55106-05020iAT190,CT190,ST191..UKP..LHD199601-199710

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 2 diagrams in section
