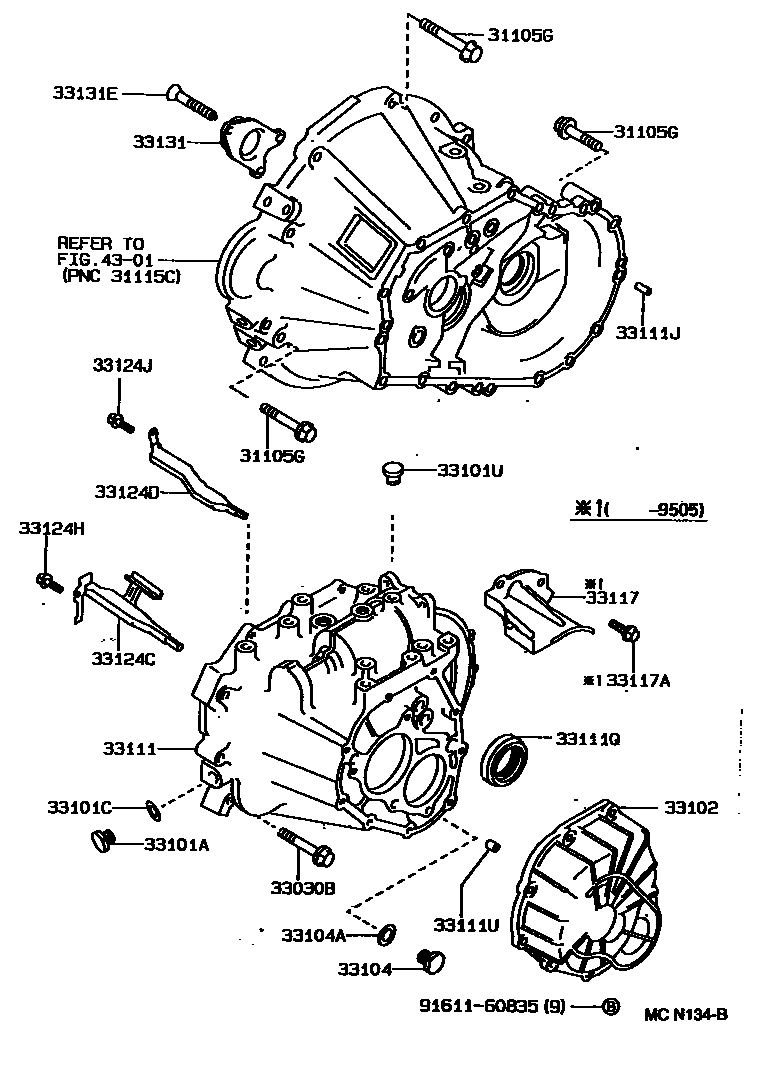

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50,C52 0002 1S50,S55

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCT190,ST191..UKP..MTM199601-199710

*8-1.25PX18-15

sub91641-H0820

main90105-10077iAT190,CT190,ST191..UKP..MTM199601-199710

*10-1.25PX43-26

main90119-12042iAT190..UKP..MTM199601-199710

*12-1.25PX75-30

main90119-12168iAT190..UKP..MTM199601-199710

*12-1.25PX55-30

main91651-41022iST191..UKP..MTM199601-199710

*10-1.25PX22-22

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCT190,ST191..UKP..MTM199601-199710

*8-1.25PX45-27.5

sub90105-08430

main90105-08064iAT190..UKP..MTM199601-199710

*8-1.25PX51-28

sub90105-08353

main90105-08086iAT190..UKP..MTM199601-199710

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAT190,CT190,ST191..UKP..MTM199601-199710

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT190,CT190,ST191..UKP..MTM199601-199710

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iAT190,CT190,ST191..UKP..MTM199601-199710

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iAT190..UKP..MTM199601-199710

main33102-33020iCT190,ST191..UKP..MTM199601-199710

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT190,CT190,ST191..UKP..MTM199601-199710

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT190,CT190,ST191..UKP..MTM199601-199710

33111CASE, MANUAL TRANSMISSION

main33111-16061iAT190..UKP..MTM199601-199704

sub33111-16062

sub90109-12073

main33111-16062iAT190..UKP..MTM199704-199710

sub33111-16063

sub90109-18005

sub90430-18008

main33111-32030iCT190,ST191..UKP..MTM199704-199710

main33111-33031iCT190,ST191..UKP..MTM199601-199704

sub33111-32030

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iCT190,ST191..UKP..MTM199601-199710

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34017iAT190..UKP..MTM199601-199710

sub90311-34028

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAT190..UKP..MTM199601-199710

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-32011iCT190,ST191..UKP..MTM199601-199710

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iCT190,ST191..UKP..MTM199601-199710

sub91641-H0820

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12012iAT190..UKP..MTM199601-199710

sub33124-20050

main33124-33010iCT190,ST191..UKP..MTM199601-199710

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iAT190..UKP..MTM199601-199710

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iAT190..UKP..MTM199601-199710

sub91611-G0820

main91651-60618iCT190,ST191..UKP..MTM199601-199710

33124JBOLT, W/WASHER

main91611-60820iAT190..UKP..MTM199601-199710

sub91611-G0820

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAT190..UKP..MTM199601-199607

sub33131-12080

main33131-12080iAT190..UKP..MTM199607-199710

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAT190..UKP..MTM199601-199710

4301

9161160835

main91611-60835

22 parts on this diagram · 2 diagrams in section
