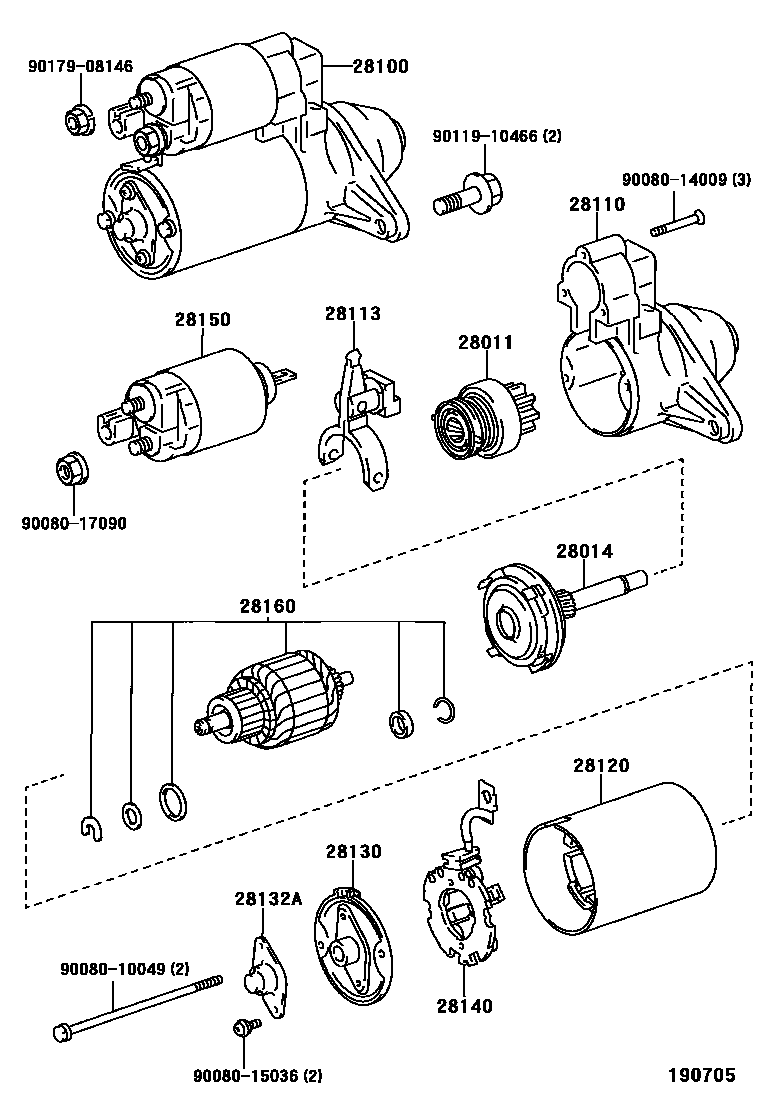

STARTER

0001 112V 1.2KW(BOSCH) 0002 112V 1.2KW 0003 112V 2.2KW(BOSCH)

28011CLUTCH SUB-ASSY, STARTER

main28011-02010i4AFE..AT190..UKP199601-199710

main28011-0B010i2CT..CT190..UKP199601-199710

main28011-74070i3SFE..ST191..UKP199601-199710

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-02010i4AFE..AT190..UKP199601-199710

main28014-0B010i2CT..CT190..UKP199601-199710

28100STARTER ASSY

main28100-02040i4AFE..AT190..UKP199601-199710

12V 1.1KW

sub28100-02080

main28100-0B010i2CT..CT190..UKP199601-199710

12V 2.2KW

sub28100-0B020

main28100-74130i3SFE..ST191..UKP199601-199710

12V 1.2KW

sub28100-74140

28110HOUSING ASSY, STARTER DRIVE

main28110-02050i4AFE..AT190..UKP199601-199710

sub28110-02080

main28110-0B010i2CT..CT190..UKP199601-199710

main28110-74100i3SFE..ST191..UKP199601-199710

28113LEVER, STARTER PINION DRIVE

main28113-02010i4AFE..AT190..UKP199601-199710

main28113-0B010i2CT..CT190..UKP199601-199710

28120YOKE ASSY, STARTER

main28120-02020i4AFE..AT190..UKP199601-199710

main28120-0B010i2CT..CT190..UKP199601-199710

main28120-16180i3SFE..ST191..UKP199601-199710

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-02050i4AFE..AT190..UKP199601-199710

main28130-0B010i2CT..CT190..UKP199601-199710

main28130-74120i3SFE..ST191..UKP199601-199710

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-04010i4AFE..AT190..UKP199601-199710

sub28132-0X040

main28132-0B010i2CT..CT190..UKP199601-199710

28140HOLDER ASSY, STARTER BRUSH

main28140-02020i4AFE..AT190..UKP199601-199710

main28140-74120i3SFE..ST191..UKP199601-199710

28150SWITCH ASSY, MAGNET STARTER

main28150-02040i4AFE..AT190..UKP199601-199708

sub28150-02080

main28150-02080i4AFE..AT190..UKP199708-199710

main28150-0B010i2CT..CT190..UKP199601-199710

main28150-74140i3SFE..ST191..UKP199601-199710

28160ARMATURE ASSY, STARTER

main28160-02020i4AFE..AT190..UKP199601-199710

sub28160-02080

main28160-0B010i2CT..CT190..UKP199601-199710

main28160-76060i3SFE..ST191..UKP199601-199710

9008010049

main90080-10049

9008014009

main90080-14009

9008015036

main90080-15036

9008017090

main90080-17090

9011910466

main90119-10466

9017908146

main90179-08146

17 parts on this diagram · 3 diagrams in section
