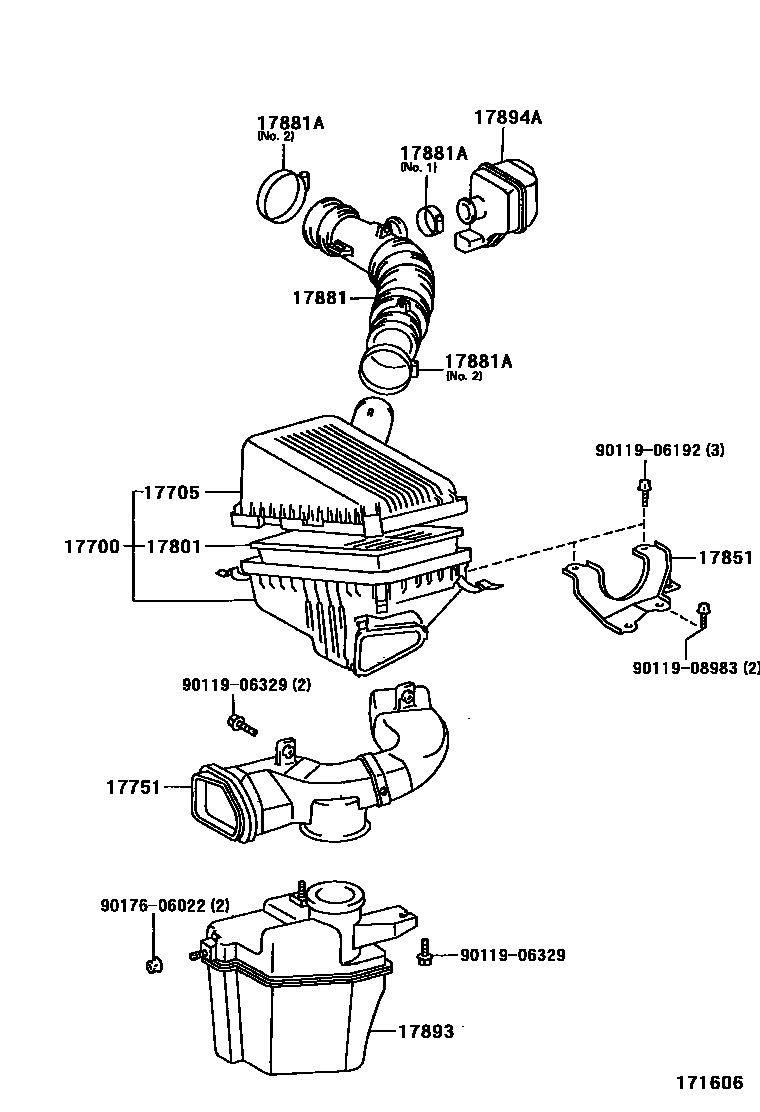

AIR CLEANER

0001 1 0002 1 0003 1

17700CLEANER ASSY, AIR

main17700-02050i4AFE..AT190..UKP199601-199710

main17700-03070i3SFE..ST191..UKP199601-199710

main17700-0B010i2CT..CT190..UKP199601-199710

17705CAP SUB-ASSY, AIR CLEANER

main17705-02050i4AFE..AT190..UKP199601-199710

main17705-03060i3SFE..ST191..UKP199601-199710

main17705-0B010i2CT..CT190..UKP199601-199710

17751INLET, AIR CLEANER, NO.1

main17751-02031i4AFE..AT190..UKP199601-199710

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-02040i4AFE..AT190..UKP199601-199710

sub17801-02050

main17801-0B010i2CT..CT190..UKP199601-199710

sub17801-0B020

17851BRACKET, AIR CLEANER SUPPORT

main17851-02010i4AFE..AT190..UKP199601-199710

17881HOSE, AIR CLEANER, NO.1

main17881-02050i4AFE..AT190..UKP199601-199710

main17881-03080i3SFE..ST191..UKP199601-199710

main17881-64290i2CT..CT190..UKP199601-199710

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90080-46198i4AFE..AT190..UKP199601-199710

NO.1

main90460-65007i2CT..CT190..UKP199601-199710

sub90460-65002

main96111-10590i3SFE..ST191..UKP199601-199710

main96111-10730i4AFE..AT190..UKP199601-199710

NO.2

17893RESONATOR, INTAKE AIR

main17893-02020i4AFE..AT190..UKP199601-199710

NO.2

main17893-03030i3SFE..ST191..UKP199601-199710

NO.1

sub17893-74240

17894ARESONATOR, INTAKE AIR, NO.2

main17894-02060i4AFE..AT190..UKP199601-199710

main17894-64050i2CT..CT190..UKP199601-199710

9011906192

main90119-06192

9011906329

main90119-06329

9011908983

main90119-08983

9017606022

main90176-06022

13 parts on this diagram · 3 diagrams in section
