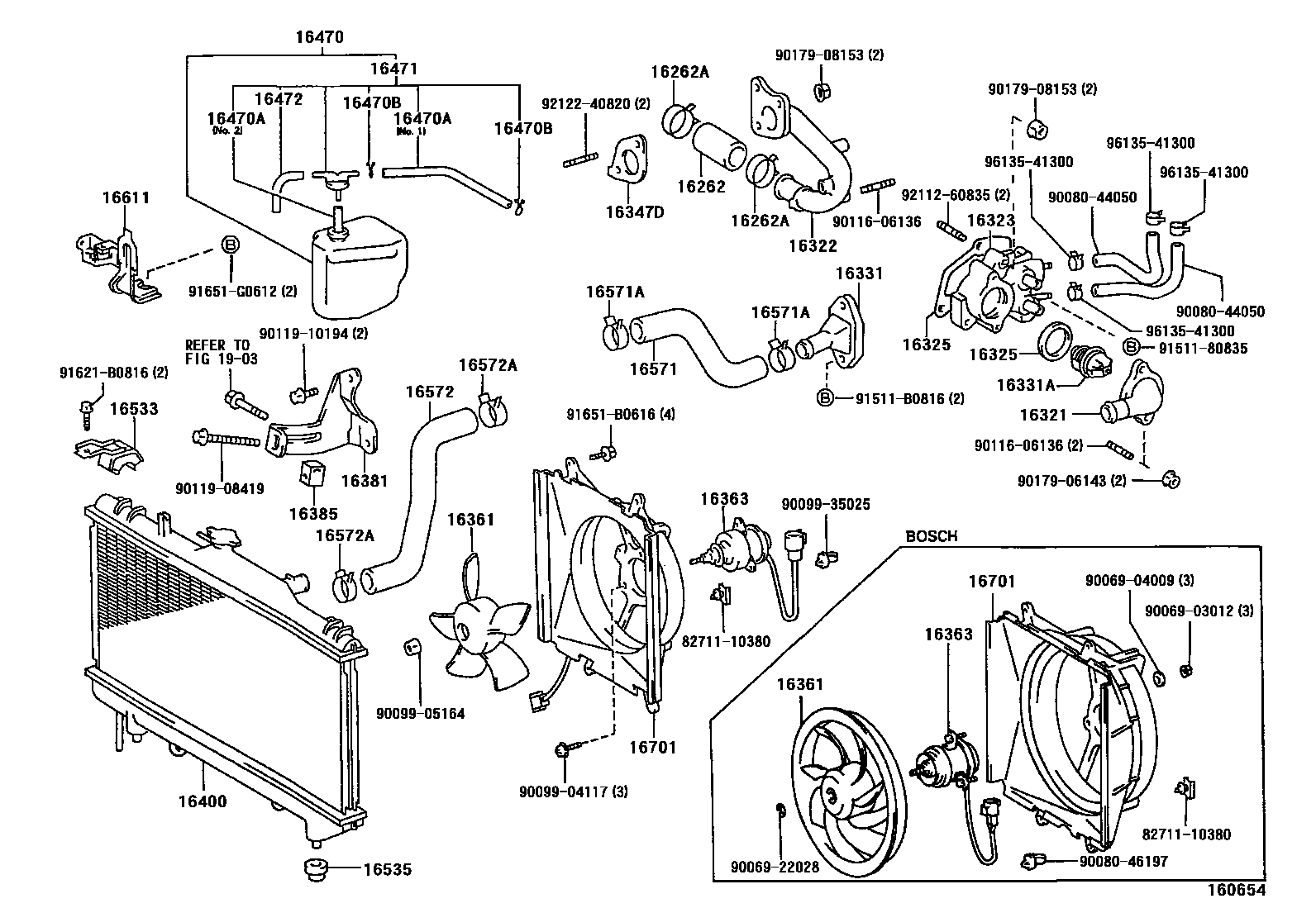

RADIATOR & WATER OUTLET
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
sub90467-37005
16321INLET, WATER
16322PIPE, WATER INLET
sub16322-02021
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
CYLINDER HEAD SIDE
THERMOSTAT SIDE
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
*WAX 82-95
16347DGASKET, WATER BY-PASS
16361FAN
W(0IL COOLER)
16363MOTOR, COOLING FAN
W(0IL COOLER)
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
W(0IL COOLER)
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
*H,L=435,NO.1
*H,L=110,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
W(0IL COOLER)
16535SUPPORT, RADIATOR, LOWER
W(0IL COOLER)
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
W(0IL COOLER)
1903
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9006903012
main90069-03012
9006904009
main90069-04009
9006922028
main90069-22028
9008044050
main90080-44050
9008046197
main90080-46197
9009904117
main90099-04117
9009905164
main90099-05164
9009935025
main90099-35025
9011606136
main90116-06136
9011908419
main90119-08419
9011910194
main90119-10194
9017906143
main90179-06143
9017908153
main90179-08153
9151180835
main91511-80835
91511B0816
main91511-B0816
91621B0816
main91621-B0816
91651B0616
main91651-B0616
91651G0612
main91651-G0612
9211260835
main92112-60835
9212240820
main92122-40820
9613541300
main96135-41300
50 parts on this diagram · 6 diagrams in section
