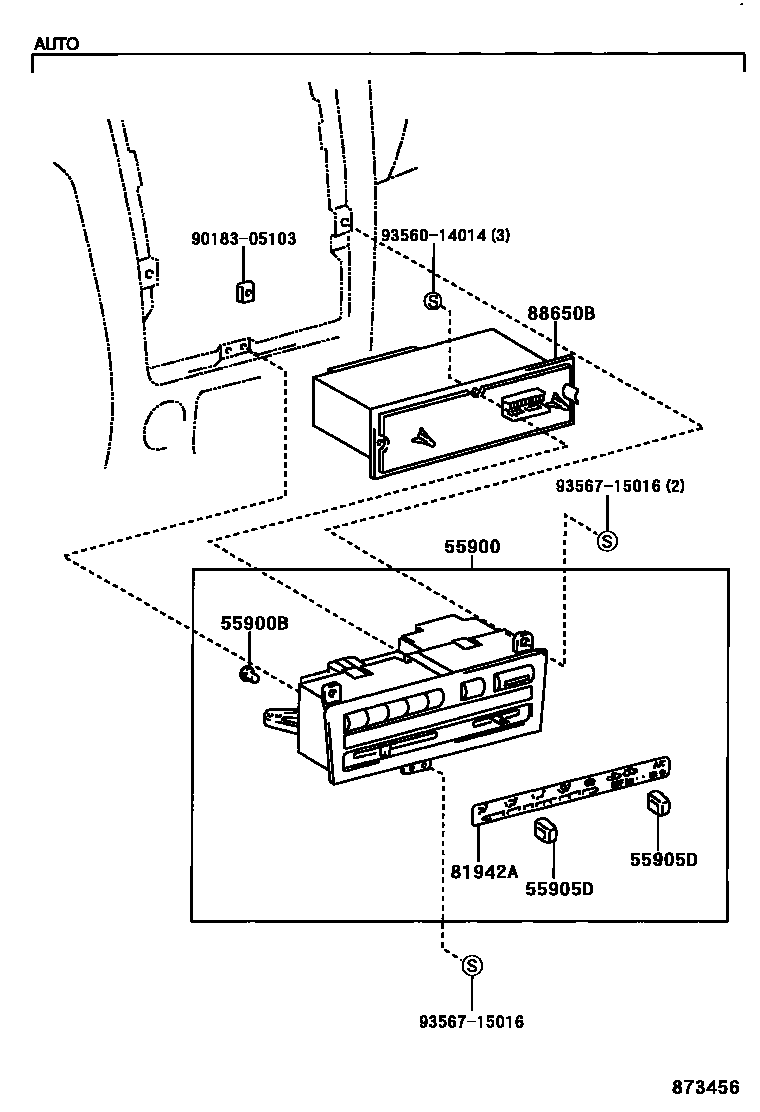

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1CONTROL 0003 1AIR DUCT 0004 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-2B120iAT210199712-199808

main55900-2B360iAT210,ST210199601-199712

main55900-2B370iST210199712

55900BBULB, AIR CONDITIONER CONTROL

main84999-70012iAT210,ST210199601-199605

14V 1.4W,W(CAP)

main84999-70018iAT210,ST210199605-199712

14V 1.4W,W(CAP)

main90010-05101iAT210,ST210199712-199808

14V1.12W,W/GREEN CAP

55905DKNOB SUB-ASSY, CONTROL

main55905-20380iAT210,ST210199601-199712

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-20500iAT210,ST210199601-199712

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-21070iAT210199712-199808

main88650-2B510iST210199601-199712

main88650-2B520iAT210199601-199712

main88650-2B600iST210199712

9018305103

main90183-05103

9356014014

main93560-14014

9356715016

main93567-15016

8 parts on this diagram · 4 diagrams in section
