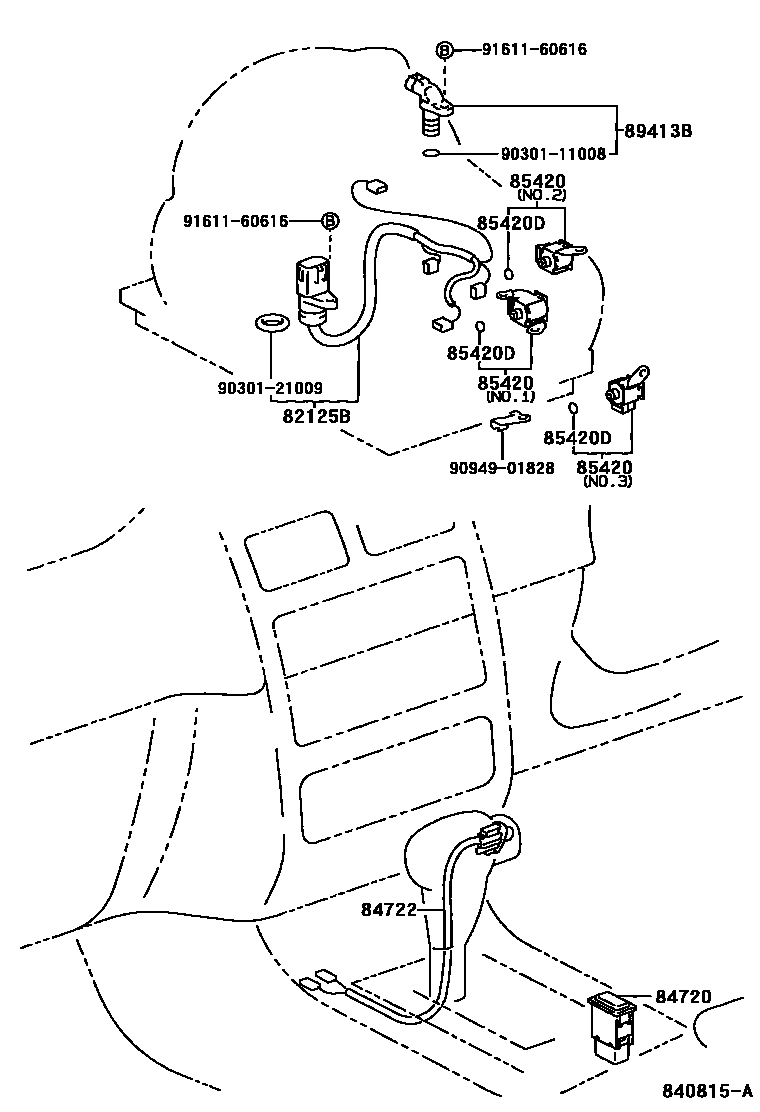

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

82125BWIRE, TRANSMISSION

main82125-12350iAT210,ST210..ATM199712

main82125-20220iST210199601-199712

main82125-20230iAT210..ATM199601-199712

84720SWITCH ASSY, PATTERN SELECT

main84720-20160iAT210,ST210..ATM199601

84722SWITCH, TRANSMISSION CONTROL

main84722-20170-C0iAT210,ST210..ATM199601-199712

BLACK,TRIM1#,4#

main84722-20170-C0iAT210,ST210..ATM199712

BLACK,TRIM11,17

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iAT210..ATM199601-199809

NO.2

sub85420-21010

main85420-12120iAT210,ST210..ATM199601-199809

NO.3

sub85420-21030

main85420-12140iAT210,ST210..ATM199712-199809

NO.1

sub85420-21050

main85420-20140iST210199601-199712

NO.1

sub85420-21070

main85420-20160iAT210..ATM199601-199712

NO.1

sub85420-21110

main85420-21010iAT210,ST210..ATM199809

NO.2,DENSO

main85420-21020iAT210,ST210..ATM199809

NO.2,AISIN

sub85420-21010

main85420-21030iAT210,ST210..ATM199809

NO.3,DENSO

sub85420-21040

main85420-21040iAT210,ST210..ATM199809

NO.3,AISIN

main85420-21050iAT210,ST210..ATM199809

NO.1,DENSO

sub85420-21060

main85420-21060iAT210,ST210..ATM199809

NO.1,AISIN

main85420-30200iST210199601-199712

NO.2

sub85420-21090

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iAT210..ATM199601-199712

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iAT210..ATM199601-199712

sub89413-32011

9030111008

main90301-11008

9030121009

main90301-21009

9094901828

main90949-01828

9161160616

main91611-60616

10 parts on this diagram · 3 diagrams in section
