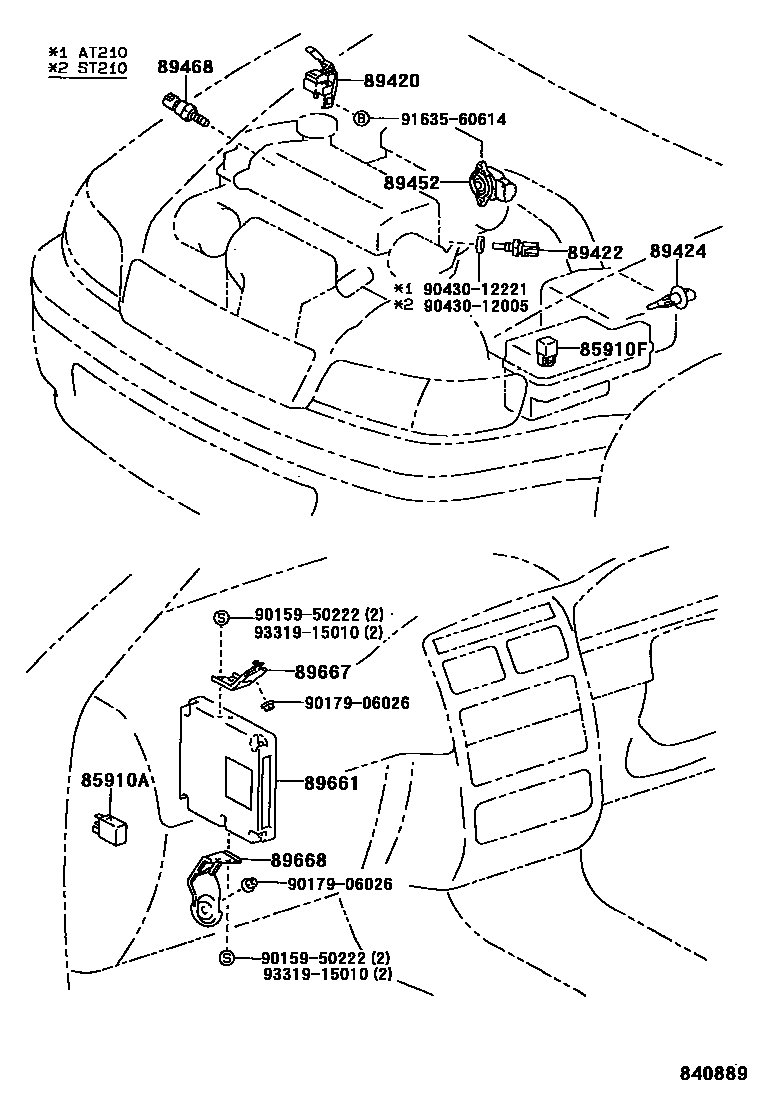

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iAT210,ST210..ATM199806-200002

BLACK

main90987-02012iAT210,ST210199601-199806

main90987-02015iAT210,ST210199806-200002

GREEN

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iAT210,ST210199601-199712

main90987-02012iAT210,ST210..ATM199806-200002

BLACK

main90987-02012iAT210,ST210199712-199806

main90987-02015iAT210,ST210..ATM199806-200002

GREEN

89420SENSOR ASSY, VACUUM

main89420-20250iAT210,ST210199601-199808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iST210199601-199712

HONG KONG SPEC

main89422-20010iAT210199601-199808

main89422-35010iST210199601-199808

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAT210,ST210199601-199808

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iST210199601-199808

main89452-22090iST210199601-199712

HONG KONG SPEC

main89452-33030iAT210..ATM199607-199712

89468SENSOR, COMBUSTION PRESSURE

main89468-20020iAT210199601-199808

89661COMPUTER, ENGINE CONTROL

main89661-2B600iST210199601-199712

HONG KONG SPEC

main89661-2D550iAT210..MTM199601-199608

sub89661-2D551

main89661-2D551iAT210..MTM199608-199712

main89661-2D560iAT210..ATM199601-199608

sub89661-2D561

main89661-2D561iAT210..ATM199608-199712

main89661-2D590iST210199601-199712

main89661-2G170iAT210..MTM199712-199808

main89661-2G180iAT210..ATM199712-199808

main89661-2G240iST210199712

main89661-2G310iAT210..ATM199808

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20380iAT210,ST210199601-199808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20340iAT210,ST210199601-199808

9015950222

main90159-50222

9017906026

main90179-06026

9043012005

main90430-12005

9043012221

main90430-12221

9163560614

main91635-60614

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
