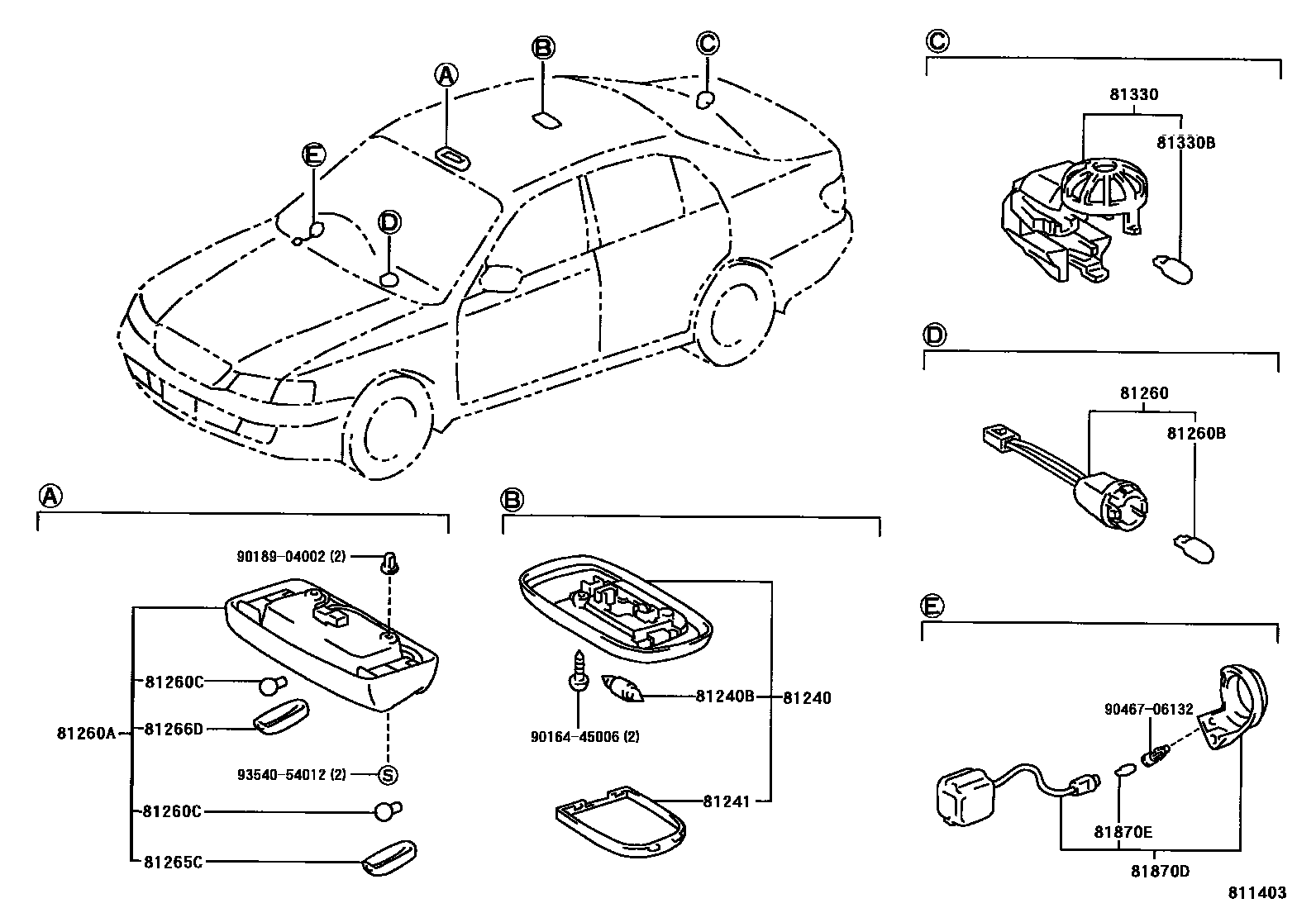

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B3iAT210,ST210199601-199712

LT.GRAY,TRIM1#

sub81240-12060

main81240-12060-B3iAT210,ST210199712

LT.GRAY,TRIM11

sub81240-12060

main81240-12060-B6iAT210,ST210199712

MD.CHARCOAL,TRIM17

sub81240-12060

main81240-12060-E1iAT210,ST210199601-199712

LT.ANTELOPE,TRIM4#

sub81240-12060

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAT210,ST210199601

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iAT210,ST210199601

81260LAMP ASSY, GLOVE BOX

main81260-20240iAT210,ST210199601

81260ALAMP ASSY, MAP

main81260-20260-B0iST210199601-199712

LT.GRAY,TRIM1#

sub81260-20261

sub81260-20260

main81260-20260-B0iAT210,ST210199712

LT.GRAY,TRIM11

sub81260-20261

sub81260-20260

main81260-20260-B4iAT210,ST210199712

MD.CHARCOAL,TRIM17

sub81260-20261

sub81260-20260

main81260-20260-E0iST210199601-199712

LT.ANTELOPE,TRIM4#

sub81260-20261

sub81260-20260

81260BBULB(FOR GLOVE BOX)

main90981-11014iAT210,ST210199601

14V 1.4W

81260CBULB(FOR MAP LAMP)

main90981-12020iST210199601-199712

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-20260iST210199601-199712

81266DLENS, MAP LAMP, NO.2

main81266-20260iST210199601-199712

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iAT210,ST210199601

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iAT210,ST210199601

12V 3.8W

81870DLAMP ASSY, KEY CYLINDER

main81870-20050iST210199601

81870EBULB, KEY CYLINDER LAMP

main90981-11014iST210199601

14V 1.4W

9016445006

main90164-45006

9018904002

main90189-04002

9046706132

main90467-06132

9354054012

main93540-54012

17 parts on this diagram · 1 diagram in section
