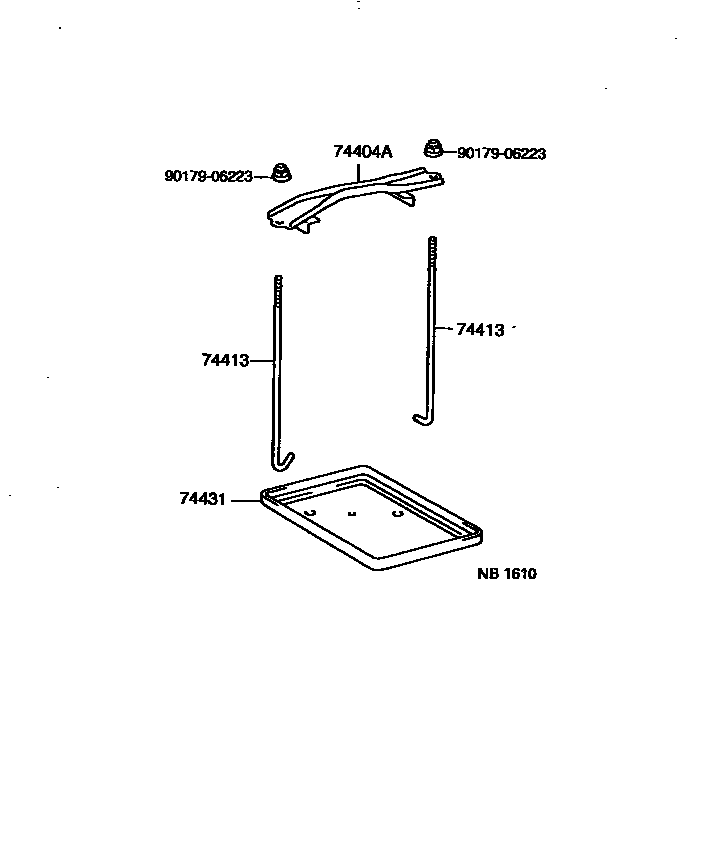

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-20490iAT210,ST210199601

74413BOLT, BATTERY CLAMP

main74451-32070iAT210,ST210199601-200008

main74451-32071iAT210,ST210200008

sub74451-58011

74431TRAY, BATTERY

main74431-20080iAT210,ST210199601

sub74431-14050

9017906223

main90179-06223

4 parts on this diagram · 1 diagram in section
