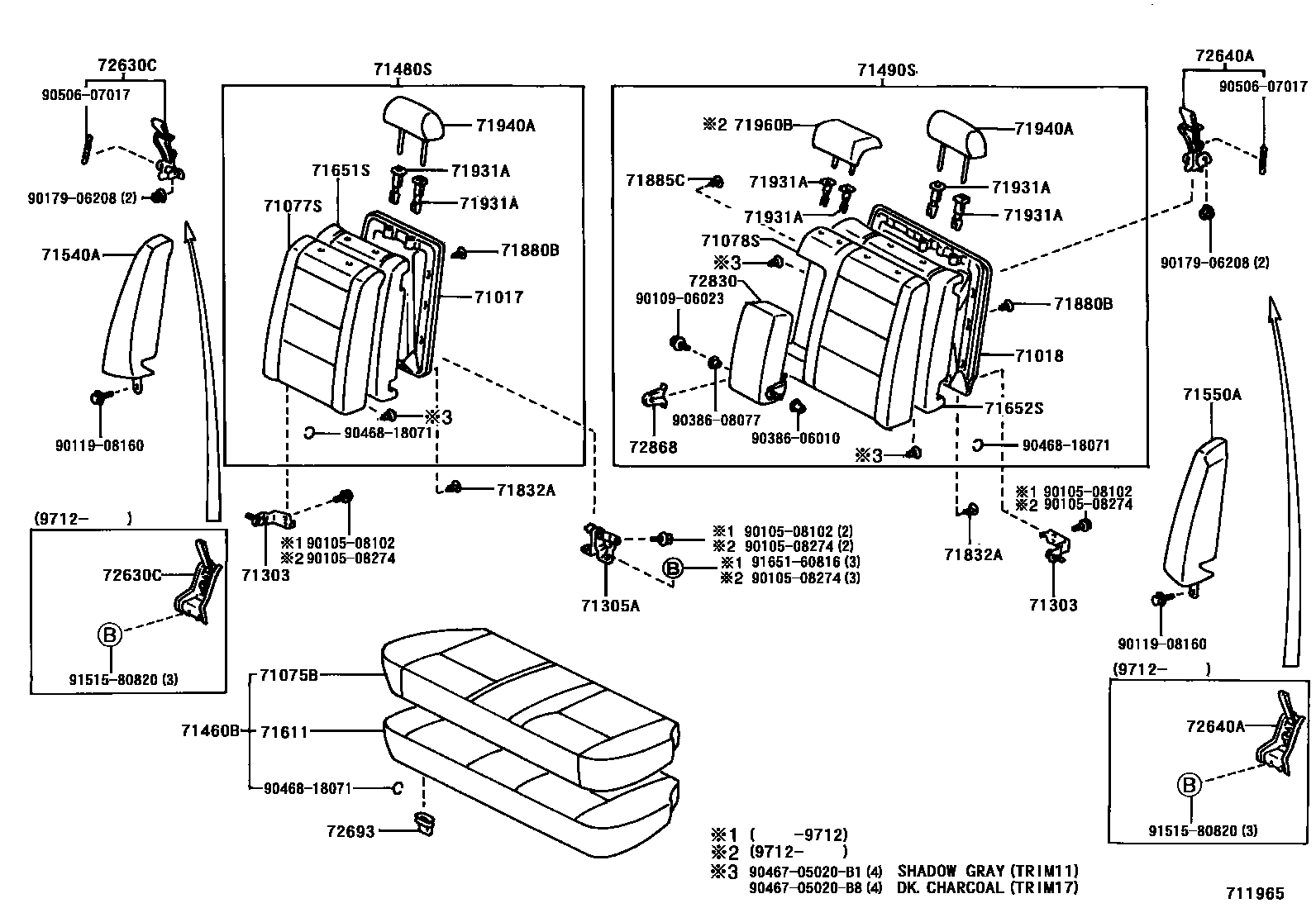

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-20550iAT210,ST210199601-199712

main71017-20551iAT210,ST210199712

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-20240iAT210,ST210199601-199712

main71018-20241iAT210,ST210199712

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-2B680-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71065-2B680-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main71065-2B681-B2iAT210,ST210199712

SHADOW GRAY,TRIM11

main71065-2B681-B3iAT210,ST210199712

DARK CHARCOAL,TRIM17

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2G520-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71077-2G520-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main71077-2G521-B2iAT210,ST210199712

SHADOW GRAY,TRIM11

main71077-2G521-B3iAT210,ST210199712

DARK CHARCOAL,TRIM17

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-2B440-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71078-2B440-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main71078-2B441-B2iAT210,ST210199712

SHADOW GRAY,TRIM11

main71078-2B441-B3iAT210,ST210199712

DARK CHARCOAL,TRIM17

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-20130iAT210,ST210199601

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20210iAT210,ST210199601-199712

main71305-20240iAT210,ST210199712

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-2B860-B1iAT210,ST210199601-199712

***,SHADOW GRAY,TRIM1#

main71560-2B860-E1iAT210,ST210199601-199712

***,ANTELOPE,TRIM4#

main71560-2B861-B0iAT210,ST210199712

***,SHADOW GRAY,TRIM11

main71560-2B861-B4iAT210,ST210199712

***,DARK CHARCOAL,TRIM17

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2H230-B1iAT210,ST210199601-199712

***,SHADOW GRAY,TRIM1#

main71480-2H230-E1iAT210,ST210199601-199712

***,ANTELOPE,TRIM4#

main71480-2H231-B0iAT210,ST210199712

***,SHADOW GRAY,TRIM11

main71480-2H231-B3iAT210,ST210199712

***,DARK CHARCOAL,TRIM17

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-2D120-B1iAT210,ST210199601-199712

***,SHADOW GRAY,TRIM1#

main71490-2D120-E1iAT210,ST210199601-199712

***,ANTELOPE,TRIM4#

main71490-2D121-B0iAT210,ST210199712

***,SHADOW GRAY,TRIM11

main71490-2D121-B3iAT210,ST210199712

***,DARK CHARCOAL,TRIM17

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-20350-B1iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71540-20350-E1iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main71540-20351-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main71540-20351-B3iAT210,ST210199712

DARK CHARCOAL,TRIM17

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-20350-B1iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71550-20350-E1iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main71550-20351-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main71550-20351-B3iAT210,ST210199712

DARK CHARCOAL,TRIM17

71611PAD, REAR SEAT CUSHION

main71503-20150iAT210,ST210199601

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-20730iAT210,ST210199601-199712

main71651-20731iAT210,ST210199712

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-20470iAT210,ST210199601-199712

main71652-20471iAT210,ST210199712

71832ACLIP, REAR SEATBACK CARPET OR MAT

main90467-09066-22iAT210,ST210199601-199712

BLACK,TRIM1#,4#

sub90467-09066

main90467-09066-22iAT210,ST210199712

BLACK,TRIM11,17

sub90467-09066

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-06048-C0iAT210,ST210199712

BLACK,TRIM11,17

sub90467-06048

main90467-06048-C0iAT210,ST210199601-199712

BLACK,TRIM1#,4#

sub90467-06048

71885CCLIP(FOR REAR SEATBACK CARPET)

main90467-05020-B1iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

sub90467-05020

sub90467-05027

main90467-05020-B1iAT210,ST210199712

SHADOW GRAY,TRIM11

sub90467-05020

sub90467-05027

main90467-05020-B8iAT210,ST210199712

DK.CHARCOAL,TRIM17

sub90467-05020

sub90467-05027

main90467-05020-E2iAT210,ST210199601-199712

ANTELOPE,TRIM4#

sub90467-05020

sub90467-05027

71931ASUPPORT, REAR SEAT HEADREST

main71930-32020-B0iAT210,ST210199601-199611

W(LOCK),SHADOW GRAY,TRIM1#

sub71930-32020

main71930-32020-E5iAT210,ST210199601-199611

W(LOCK),ANTELOPE,TRIM4#

sub71930-32020

main71930-44010-B1iAT210,ST210199712

W(LOCK),SHADOW GRAY,TRIM11

sub71930-44010

main71930-44010-B1iAT210,ST210199611-199712

W(LOCK),SHADOW GRAY,TRIM1#

sub71930-44010

main71930-44010-B2iAT210,ST210199712

W(LOCK),DK.CHARCOAL,TRIM17

sub71930-44010

main71930-44010-E0iAT210,ST210199611-199712

W(LOCK),ANTELOPE,TRIM4#

sub71930-44010

main71931-32020-B0iAT210,ST210199601-199712

W/O(LOCK),SHADOW GRAY,TRIM1#

sub71931-32020

main71931-32020-B0iAT210,ST210199712

W/O(LOCK),SHADOW GRAY,TRIM11

sub71931-32020

main71931-32020-E5iAT210,ST210199601-199712

W/O(LOCK),ANTELOPE,TRIM4#

sub71931-32020

main71931-32020-P2iAT210,ST210199712

W/O(LOCK),DK.CHARCOAL,TRIM17

sub71931-32020

71940AHEADREST ASSY, REAR SEAT

main71940-20370-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71940-20370-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main71940-20371-B2iAT210,ST210199712

SHADOW GRAY,TRIM11

main71940-20371-B3iAT210,ST210199712

DARK CHARCOAL,TRIM17

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-20030-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main71960-20030-B1iAT210,ST210199712

DARK CHARCOAL,TRIM17

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-20150-C0iAT210,ST210199601-199712

BLACK,TRIM1#,4#

main72630-20160-C0iAT210,ST210199712-200112

BLACK,TRIM11,17

72640ALOCK ASSY, REAR SEATBACK, LH

main72630-20150-C0iAT210,ST210199601-199712

BLACK,TRIM1#,4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20040iAT210,ST210199601

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-20600-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main72830-20600-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main72830-20601-B2iAT210,ST210199712

SHADOW GRAY,TRIM11

main72830-20601-B3iAT210,ST210199712

DARK CHARCOAL,TRIM17

72868COVER, CENTER ARMREST HINGE, RH

main72868-20040-C0iAT210,ST210199601-199712

BLACK,TRIM1#,4#

main72868-20040-C0iAT210,ST210199712

BLACK,TRIM11,17

9010508102

main90105-08102

9010508274

main90105-08274

9010906023

main90109-06023

9011908160

main90119-08160

9017906208

main90179-06208

9038606010

main90386-06010

9038608077

main90386-08077

9046705020B1

main90467-05020B1

9046705020B8

main90467-05020B8

9046818071

main90468-18071

9050607017

main90506-07017

9151580820

main91515-80820

9165160816

main91651-60816

39 parts on this diagram · 1 diagram in section
