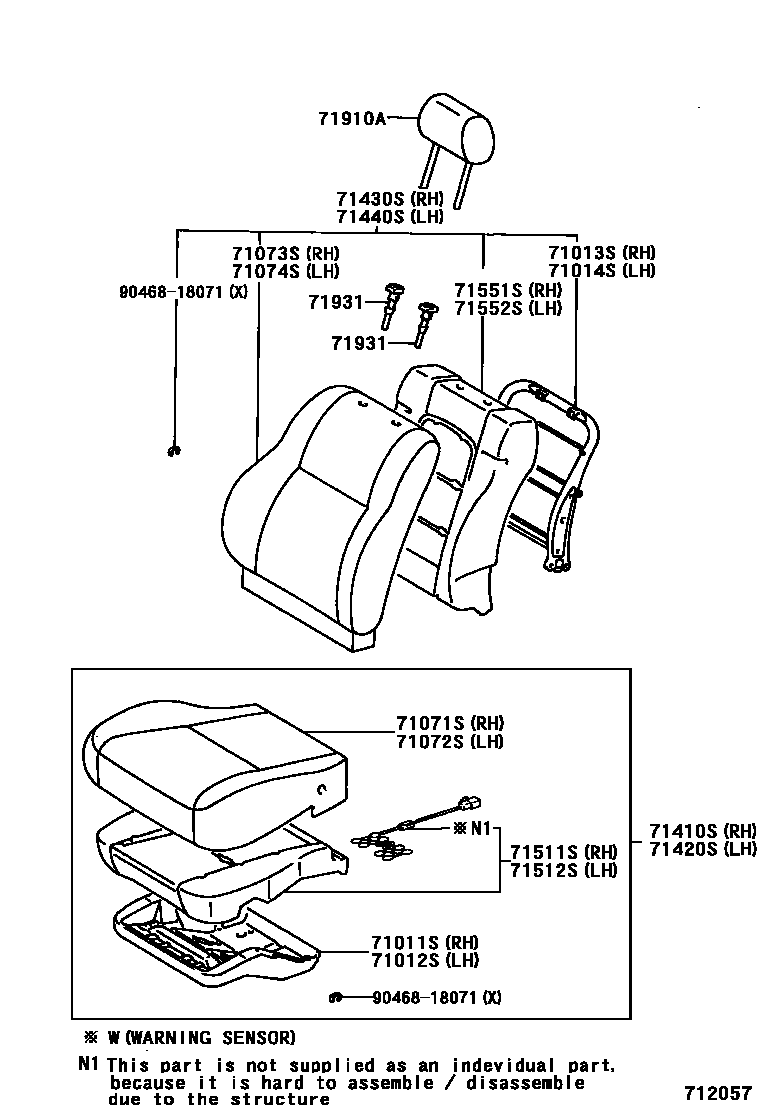

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-20430iAT210,ST210199601

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-20440iAT210,ST210199601

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-20680iAT210,ST210199601-199712

main71013-21060iAT210,ST210199712

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71013-20680iAT210,ST210199601-199712

main71013-21060iAT210,ST210199712

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2G810-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71071-2G810-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main71071-2G811-B2iAT210,ST210199712

SHADOW GRAY,TRIM11

main71071-2G811-B3iAT210,ST210199712

DARK CHARCOAL,TRIM17

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-2G230-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71072-2G230-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main71072-2G231-B2iAT210,ST210199712

SHADOW GRAY,TRIM11

main71072-2G231-B3iAT210,ST210199712

DARK CHARCOAL,TRIM17

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-2H190-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main71073-2H190-B1iAT210,ST210199712

DARK CHARCOAL,TRIM17

main71074-2G050-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71074-2G050-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-2H190-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main71073-2H190-B1iAT210,ST210199712

DARK CHARCOAL,TRIM17

main71074-2G050-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71074-2G050-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-2H480-B1iAT210,ST210199601-199712

***,SHADOW GRAY,TRIM1#

main71410-2H480-E1iAT210,ST210199601-199712

***,ANTELOPE,TRIM4#

main71410-2H481-B0iAT210,ST210199712

***,SHADOW GRAY,TRIM11

main71410-2H481-B4iAT210,ST210199712

***,DARK CHARCOAL,TRIM17

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-2H140-B1iAT210,ST210199601-199712

***,SHADOW GRAY,TRIM1#

main71420-2H140-E1iAT210,ST210199601-199712

***,ANTELOPE,TRIM4#

main71420-2H141-B0iAT210,ST210199712

***,SHADOW GRAY,TRIM11

main71420-2H141-B4iAT210,ST210199712

***,DARK CHARCOAL,TRIM17

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-20090-B0iAT210,ST210199712

***,SHADOW GRAY,TRIM11

main71040-20090-B2iAT210,ST210199712

***,DARK CHARCOAL,TRIM17

main71440-2G580-B1iAT210,ST210199601-199712

***,SHADOW GRAY,TRIM1#

main71440-2G580-E1iAT210,ST210199601-199712

***,ANTELOPE,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71040-20090-B0iAT210,ST210199712

***,SHADOW GRAY,TRIM11

main71040-20090-B2iAT210,ST210199712

***,DARK CHARCOAL,TRIM17

main71440-2G580-B1iAT210,ST210199601-199712

***,SHADOW GRAY,TRIM1#

main71440-2G580-E1iAT210,ST210199601-199712

***,ANTELOPE,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-20760iAT210,ST210199601-199712

main71511-21040iAT210,ST210199712

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71052-21030iAT210,ST210199712

main71512-20160iAT210,ST210199601-199712

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-20460iAT210,ST210199601-199712

main71551-21050iAT210,ST210199712

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-20460iAT210,ST210199601-199712

main71551-21050iAT210,ST210199712

W(SIDE AIR BAG)

71910AHEADREST ASSY, FRONT SEAT

main71910-2D090-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main71910-2D090-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main71910-2D091-B2iAT210,ST210199712

SHADOW GRAY,TRIM11

main71910-2D091-B3iAT210,ST210199712

DARK CHARCOAL,TRIM17

71931SUPPORT, FRONT SEAT HEADREST

main71930-20120-B2iAT210,ST210199601-199611

W(LOCK),SHADOW GRAY,TRIM1#

sub71930-21050

sub71930-20120

main71930-20120-E1iAT210,ST210199601-199611

W(LOCK),ANTELOPE,TRIM4#

sub71930-21050

sub71930-20120

main71930-21050-B0iAT210,ST210199611-199712

W(LOCK),SHADOW GRAY,TRIM1#

sub71930-21050

main71930-21050-E0iAT210,ST210199611-199712

W(LOCK),ANTELOPE,TRIM4#

sub71930-21050

main71930-21060-B0iAT210,ST210199712

W(LOCK),SHADOW GRAY,TRIM11

sub71930-21060

sub71930-20120

main71930-21060-B1iAT210,ST210199712

W(LOCK),DK.CHARCOAL,TRIM17

sub71930-21060

sub71930-20120

main71931-20080-B0iAT210,ST210199601-199712

W/O(LOCK),SHADOW GRAY,TRIM1#

sub71931-20080

main71931-20080-E1iAT210,ST210199601-199712

W/O(LOCK),ANTELOPE,TRIM4#

sub71931-20080

main71931-21010-B0iAT210,ST210199712

W/O(LOCK),SHADOW GRAY,TRIM11

sub71931-21010

main71931-21010-B1iAT210,ST210199712

W/O(LOCK),DK.CHARCOAL,TRIM17

sub71931-21010

9046818071

main90468-18071

19 parts on this diagram · 2 diagrams in section
