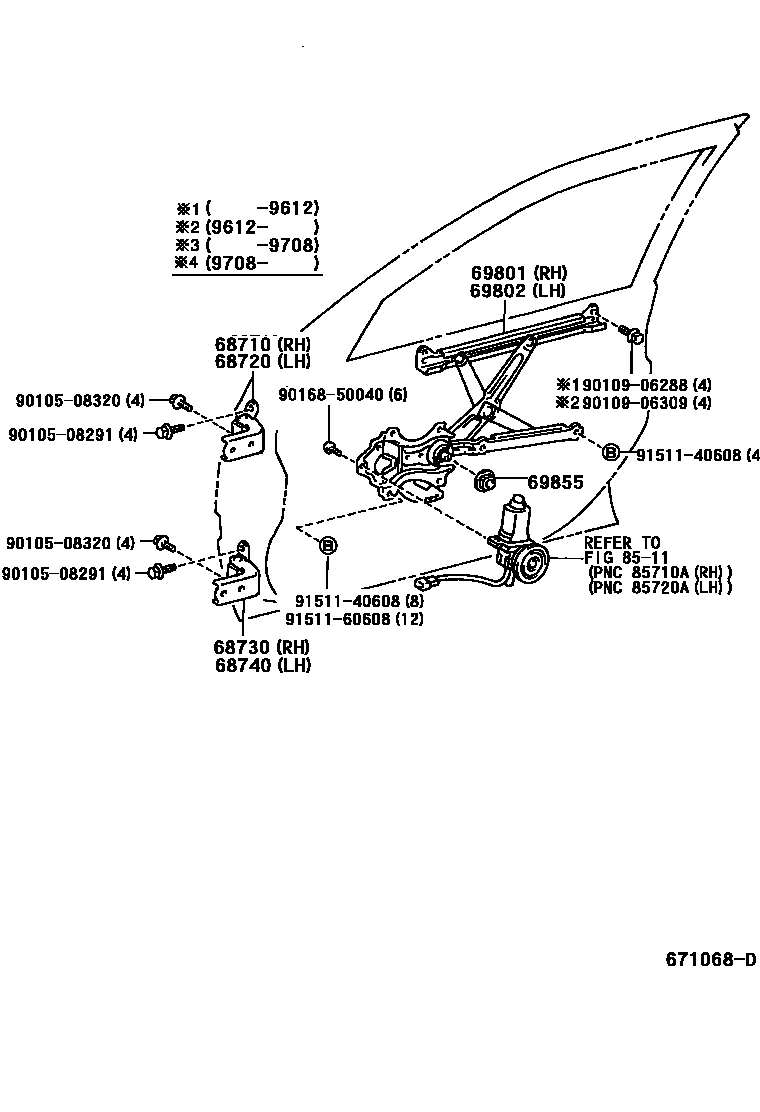

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68740-12110iAT210,ST210199601

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-12110iAT210,ST210199601

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12150iAT210,ST210199601

sub68720-12151

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12150iAT210,ST210199601

sub68710-12151

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20260iAT210,ST210199601-199612

main69801-20280iAT210,ST210199612

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20280iAT210,ST210199601-199612

main69802-20300iAT210,ST210199612

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010iAT210,ST210199601

8511

9010508291

main90105-08291

9010508320

main90105-08320

9010906288

main90109-06288

9010906309

main90109-06309

9016850040

main90168-50040

9151140608

main91511-40608

9151160608

main91511-60608

15 parts on this diagram · 1 diagram in section
