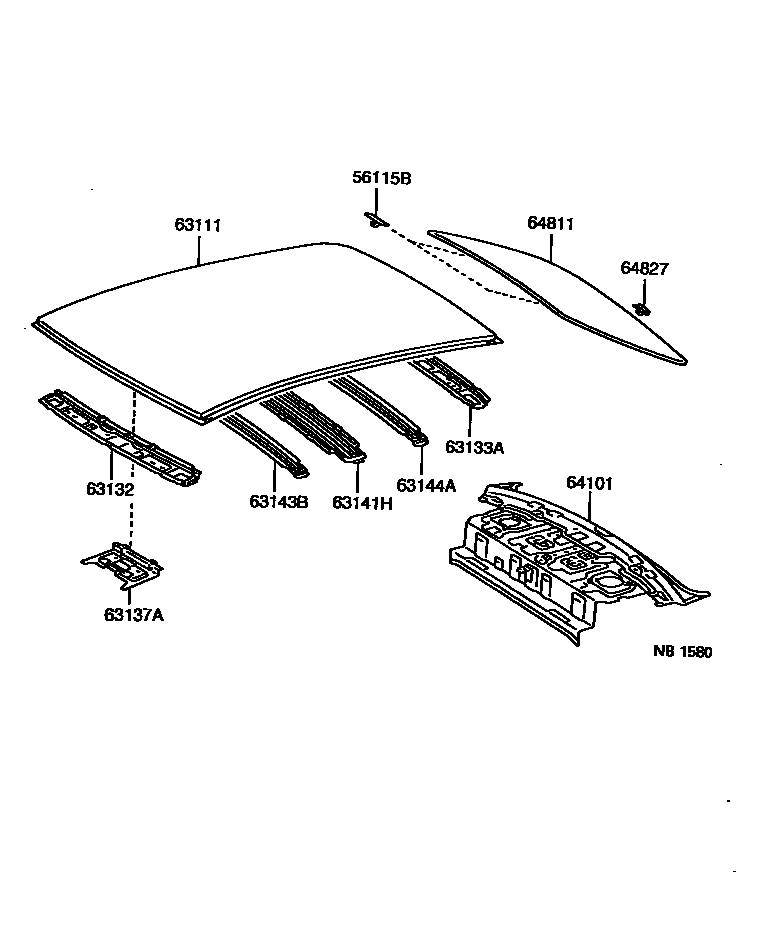

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56116-35050×2iAT210,ST210199601

63111PANEL, ROOF

main63111-20590iAT210,ST210199601

63132PANEL, WINDSHIELD HEADER, INNER

main63132-20240iAT210,ST210199601

63133AFRAME, BACK WINDOW, UPPER

main63133-20250iAT210,ST210199601

63137ABRACKET, DOME LAMP, NO.1

main63137-20090iST210199601-199712

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20220iAT210,ST210199601

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-20110iAT210,ST210199601

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-20050iAT210,ST210199601

64101PANEL SUB-ASSY, UPPER BACK

main64101-2B060iAT210,ST210199601-199708

main64101-2B061iAT210,ST210199708-199712

main64101-2B130iAT210,ST210199712

sub64101-2B140

64811GLASS, BACK WINDOW

main64811-2D420iAT210,ST210199601-199712

*UVCEHTT,T=3.5,GREEN

sub74542-20030

main64811-2D710iAT210,ST210199712

*UVCEHTT,T=3.5,GREEN

64827CLIP, BACK WINDOW GLASS, RH

main64827-20040iAT210,ST210199601

11 parts on this diagram · 1 diagram in section
