SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
55714CPANEL, COWL TOP SIDE, LH
58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58331EBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61047BREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER RH
61048AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61147CEXTENSION, FRONT BODY PILLAR, OUTER RH
61148EXTENSION, FRONT BODY PILLAR, OUTER LH
61211RAIL, ROOF SIDE, OUTER RH
W/O(RADIO) & W(4 SPEAKER)
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
61325REINFORCEMENT, CENTER BODY PILLER, CENTER
61326REINFORCEMENT, CENTER BODY PILLER, CENTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61402CPANEL SUB-ASSY, ROCKER, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
61628BEXTENSION, QUARTER PANEL, UPPER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61818ASEAL, ROOF SIDE INNER UPPER COVER
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61838BPLATE, NOISE CONTROL, NO.5
61838EPLATE, NOISE CONTROL, NO.5
62151BPAD, COWL SIDE SILENCER
62553DPAD, PILLAR, NO.3
QUARTER
62554BPAD, PILLAR, NO.4
sub61824-12130
64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH
64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH
66243APROTECTOR, REAR BODY, NO.1
9015950105
main90159-50105
9033330002
main90333-30002
9033340001
main90333-40001
9095001056
main90950-01056
9095001864
main90950-01864
9095001866
main90950-01866
9095001871
main90950-01871
9095001872
main90950-01872

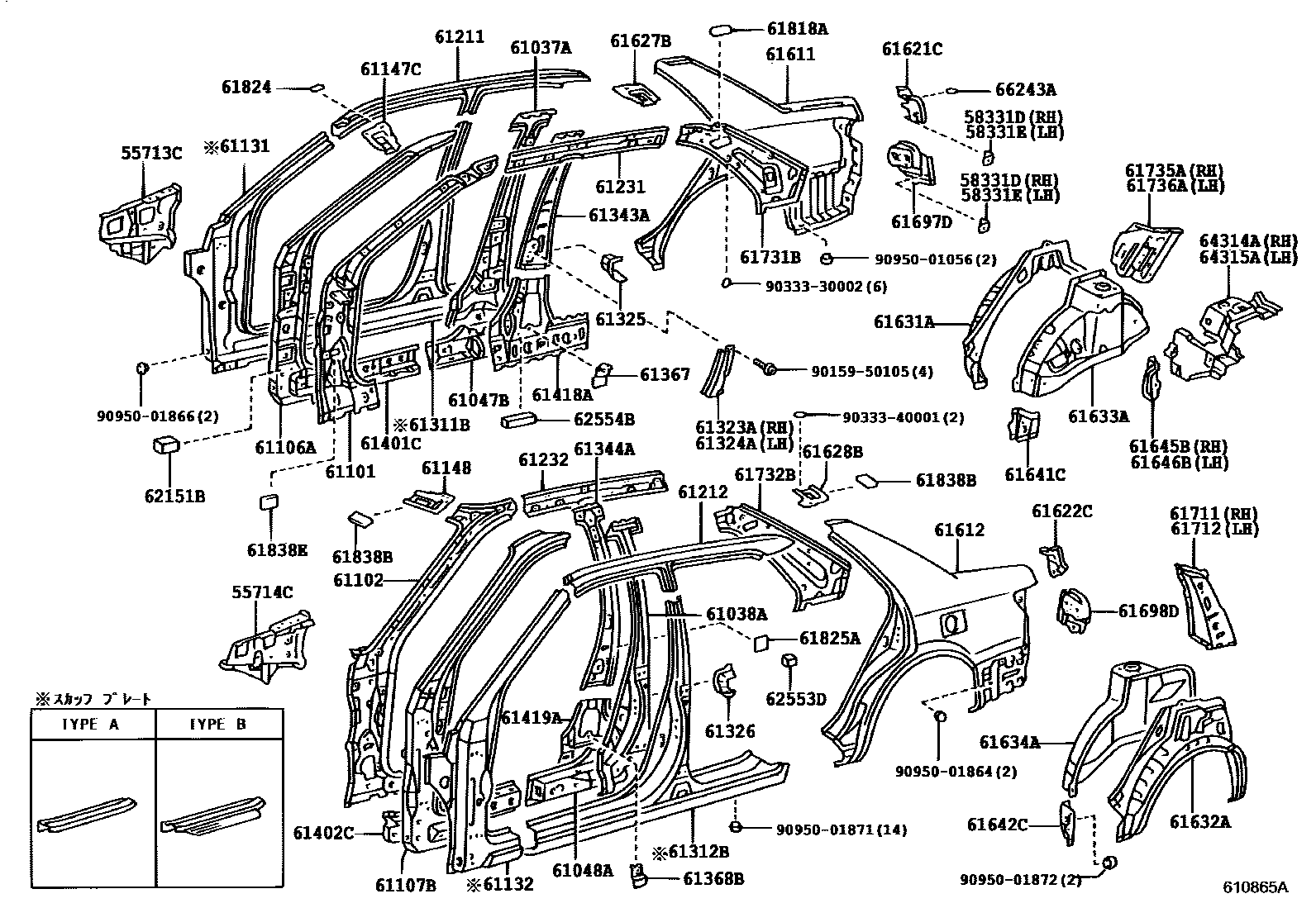

75 parts on this diagram · 1 diagram in section
