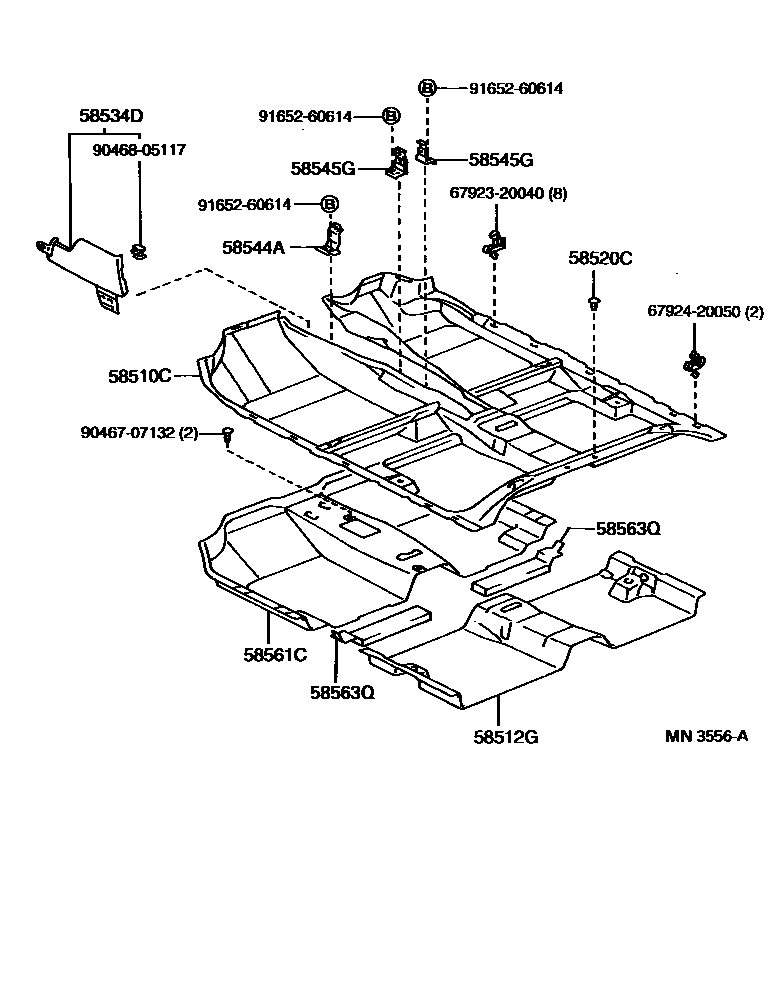

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2D870-B0iAT210,ST210199601-199712

BLUISH GRAY,TRIM1#

main58510-2D870-B0iAT210,ST210199712

BLUISH GRAY,TRIM11

main58510-2D870-B1iAT210,ST210199712

DARK CHARCOAL,TRIM17

main58510-2D870-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

58512GSILENCER, FRONT FLOOR, NO.2

main58512-20280iAT210,ST210199601-199711

sub58512-20290

main58512-20290iAT210,ST210199711

sub58512-20291

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0iAT210,ST210199601-199712

BLACK,TRIM1#,4#

sub90467-06016

sub90467-07049

main90467-06016-C0iAT210,ST210199712

BLACK,TRIM11,17

sub90467-06016

sub90467-07049

58534DCOVER, FLOOR CARPET, CENTER LH

main58534-20020-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

sub58534-20020

main58534-20020-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

sub58534-20020

main58534-20020-B1iAT210,ST210199712

DK.CHARCOAL,TRIM17

sub58534-20020

main58534-20020-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

sub58534-20020

58544ABRACKET, FLOOR CARPET, LH

main58544-20060iAT210,ST210199601

58545GBRACKET, FLOOR CARPET, NO.2 RH

main58545-20030iAT210,ST210199601

58561CSILENCER, FRONT FLOOR, NO.1

main58561-20010iAT210,ST210199601

sub58561-20011

58563QSILENCER, FRONT FLOOR, NO.3

main58563-20020iAT210,ST210199601-199712

main58563-21010iAT210,ST210199712

6792320040CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-20040

6792420050CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-20050

9046707132

main90467-07132

9046805117

main90468-05117

9165260614

main91652-60614

13 parts on this diagram · 1 diagram in section
