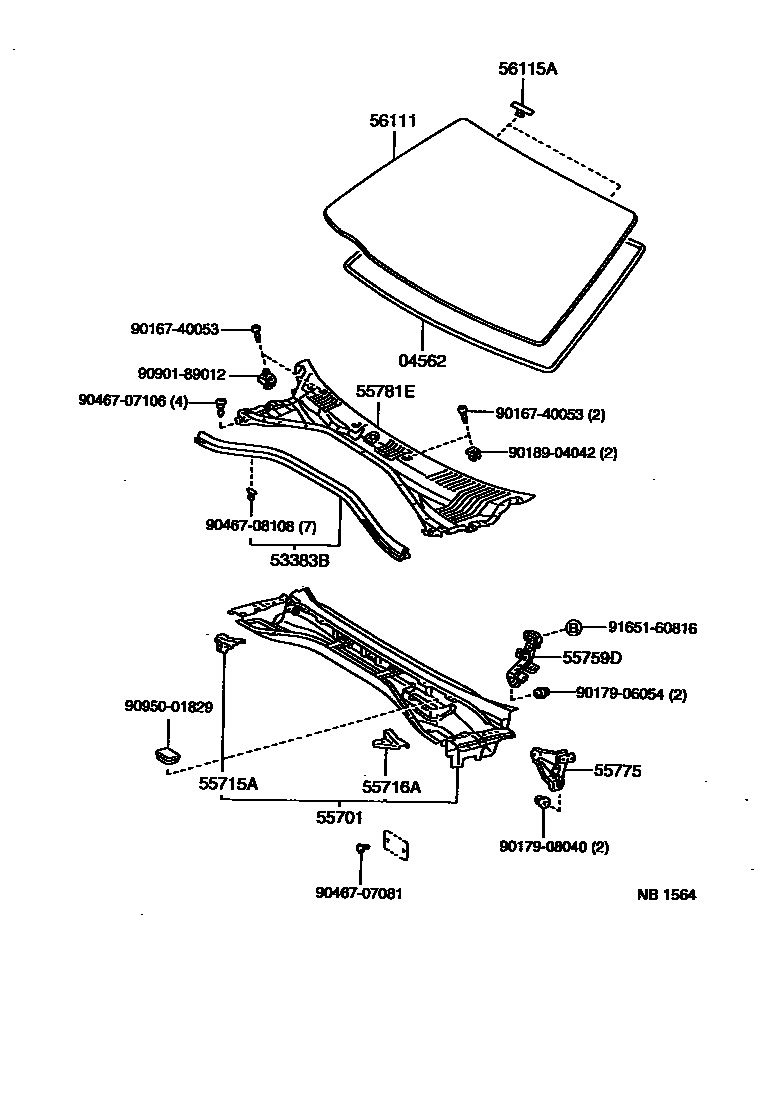

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAT210,ST210199601

53383BSEAL, HOOD TO COWL TOP

main53383-20180iAT210,ST210199601-200008

main53383-20210iAT210,ST210200008

55701PANEL SUB-ASSY, COWL

main55700-2B090iAT210,ST210199601-199712

main55700-2B200iAT210,ST210199712

55715ABRACE, COWL TOP TO APRON, RH

main55715-20120iAT210,ST210199601

55716ABRACE, COWL TOP TO APRON, LH

main55716-20090iAT210,ST210199601

55759DBRACKET, COWL TOP INNER STAY MOUNTING

main55759-20070iAT210,ST210199601

55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH

main55775-20080iAT210,ST210199601

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-20230iAT210,ST210199601

56111GLASS, WINDSHIELD

main56111-2B600iAT210,ST210199601

*TL,T=4.7,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56116-35050iAT210,ST210199601

9016740053

main90167-40053

9017906054

main90179-06054

9017908040

main90179-08040

9018904042

main90189-04042

9046707081

main90467-07081

9046707106

main90467-07106

9046708108

main90467-08108

9090189012

main90901-89012

9095001829

main90950-01829

9165160816

main91651-60816

20 parts on this diagram · 1 diagram in section
