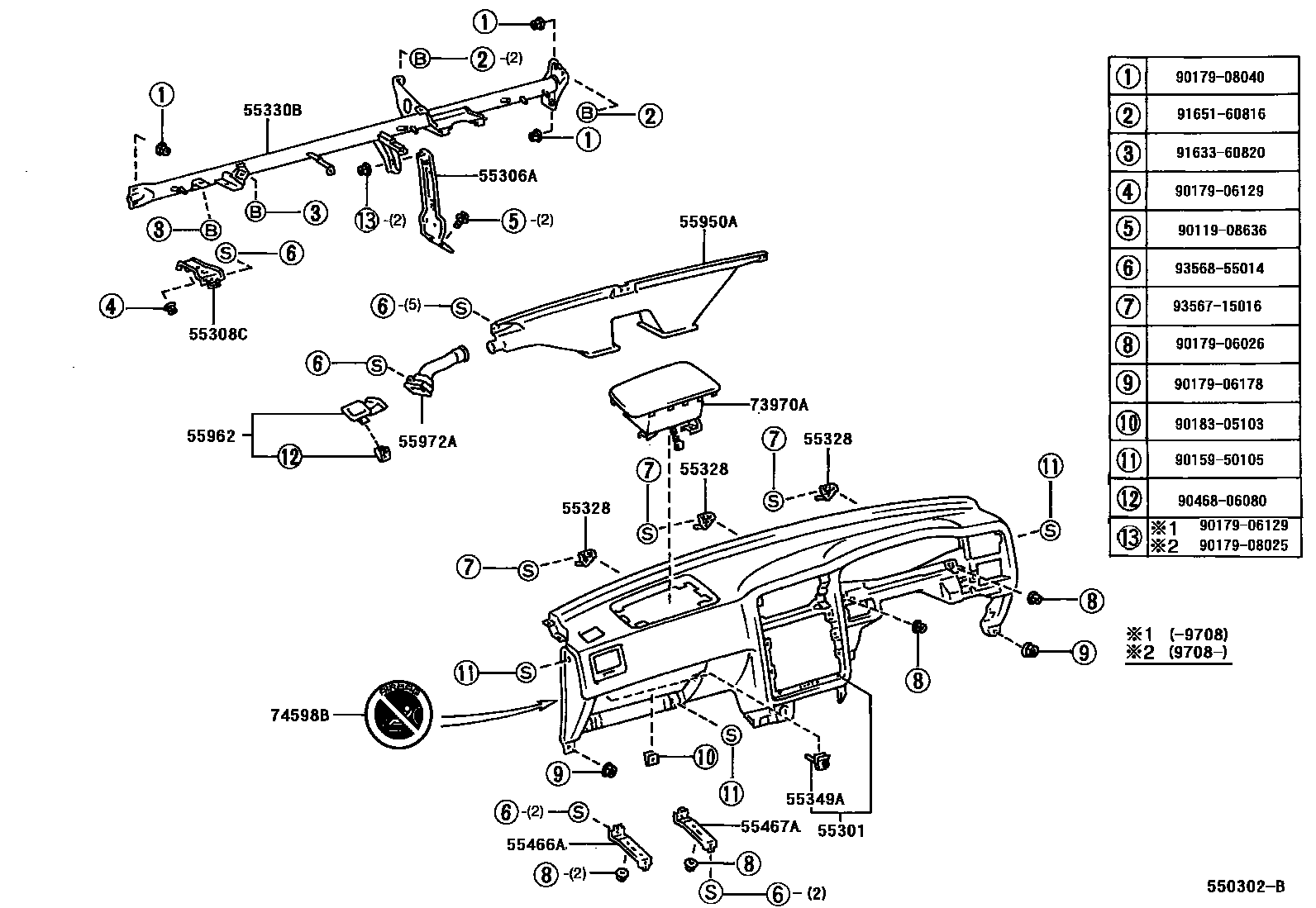

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
SHADOW GRAY,TRIM1#
ANTELOPE,TRIM4#
W(AUTOMATIC LIGHT CONTROL),SHADOW GRAY,TRIM1#
W(AUTOMATIC LIGHT CONTROL),ANTELOPE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55328PIN, INSTRUMENT PANEL, NO.1
CENTER
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55466ARETAINER, INSTRUMENT PANEL SAFETY PAD
55467ARETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2
55950ANOZZLE ASSY, DEFROSTER
55962NOZZLE, SIDE DEFROSTER, NO.2
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
74598BLABEL, PASSENGER AIRBAG CAUTION
9011908636
9015950105
9017906026
9017906129
9017906178
9017908025
9017908040
9018305103
9046806080
9163360820
9165160816
9356715016
9356855014
26 parts on this diagram · 2 diagrams in section
