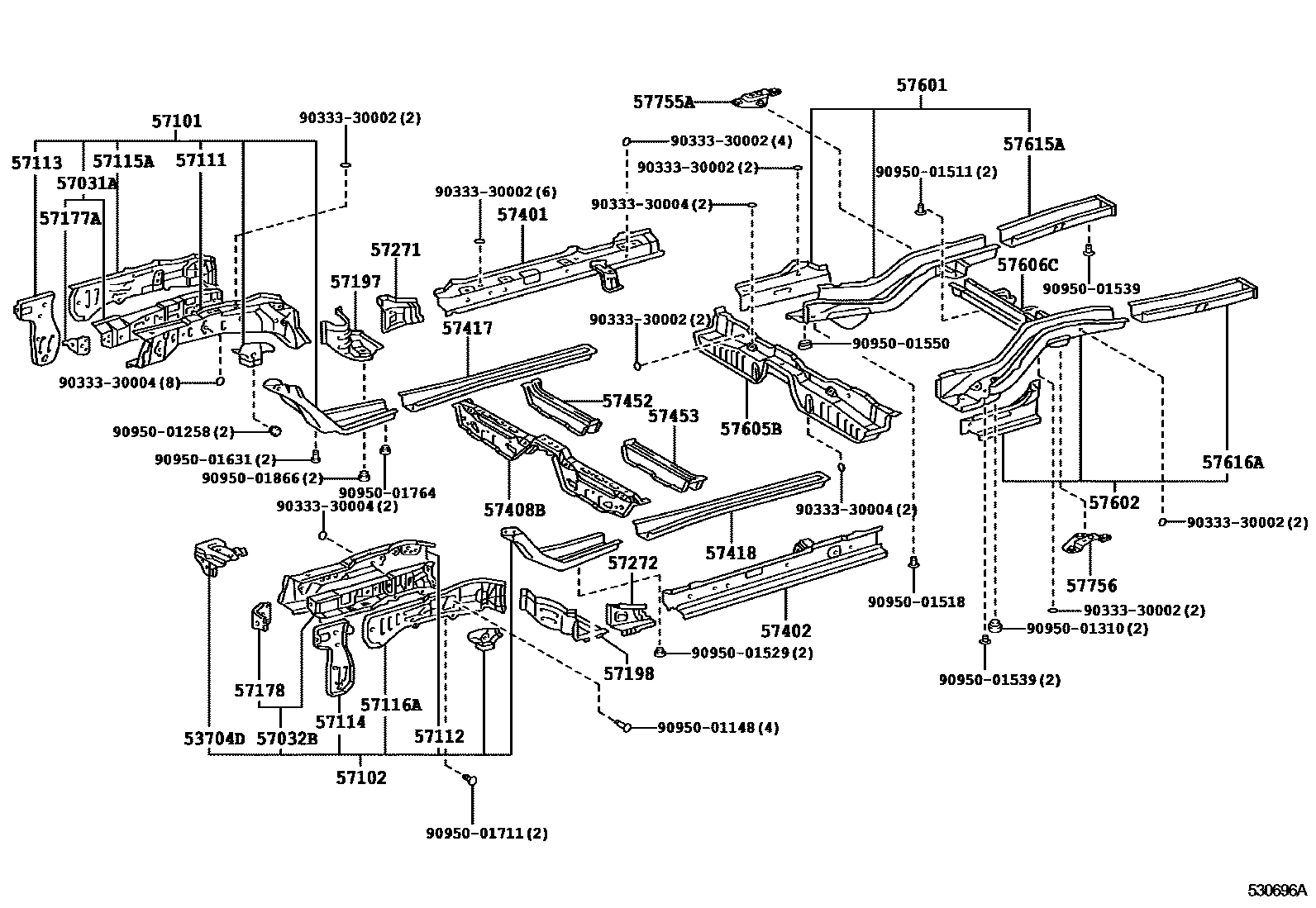

FLOOR SIDE MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53771-20080iAT210,ST210199601-199708

main53771-20081iAT210,ST210199708-200008

sub74451-32071

main53771-20120iAT210,ST210200008

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-20040iAT210199601-199708

main57031-20041iAT210199708

main57031-20050iST210199601-199708

main57031-20051iST210199708

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-20030iAT210,ST210199601-199602

main57032-20031iAT210,ST210199602-199708

main57032-20032iAT210,ST210199708

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20924iAT210199601-199612

main57101-20925iST210199601-199612

main57101-20934iAT210199612-199712

main57101-20935iST210199612-199712

main57101-20939iAT210199712

main57101-20940iST210199712

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20922iAT210,ST210199601-199602

main57102-20930iAT210,ST210199602-199612

main57102-20936iAT210,ST210199612-199712

main57102-20944iAT210,ST210199712

57111MEMBER, FRONT SIDE, RH

main57111-20250iAT210,ST210199601-199708

main57111-20280iAT210,ST210199708

57112MEMBER, FRONT SIDE, LH

main57112-20260iAT210,ST210199601-199708

main57112-20261iAT210,ST210199708

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-20180iAT210,ST210199601

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-20160iAT210,ST210199601

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-20180iAT210,ST210199601

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-20200iAT210,ST210199601

57177APLATE, FRONT SIDE MEMBER, NO.7 RH

main57177-20060iAT210,ST210199601

57178PLATE, FRONT SIDE MEMBER, NO.7 LH

main57177-20060iAT210,ST210199601

57197BOX, TORQUE, FRONT RH

main57197-20070iAT210,ST210199601

57198BOX, TORQUE, FRONT LH

main57198-20080iAT210,ST210199601

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-20050iAT210,ST210199601

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-20050iAT210,ST210199601

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-20370iAT210,ST210199601-199708

main57401-20371iAT210,ST210199708

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-20400iAT210,ST210199601-199708

main57402-20401iAT210,ST210199708

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-20130iAT210,ST210199601

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20100iAT210,ST210199601

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20100iAT210,ST210199601

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-20060iAT210,ST210199601

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-20090iAT210,ST210199601-199708

main57453-20091iAT210,ST210199708

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20900iAT210,ST210199601-199910

main57601-20902iAT210,ST210199910

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20903iAT210,ST210199601-199910

main57602-20905iAT210,ST210199910

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-20150iAT210,ST210199601

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20900iAT210,ST210199601

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20917iAT210,ST210199601

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-20916iAT210,ST210199601

57755APLATE, REAR SUSPENSION MEMBER MOUNTING, RH

main57755-20020iAT210,ST210199601

57756PLATE, REAR FLOOR NO.2 CROSSMEMBER

main57756-20020iAT210,ST210199601

9033330002

main90333-30002

9033330004

main90333-30004

9095001148

main90950-01148

9095001258

main90950-01258

9095001310

main90950-01310

9095001511

main90950-01511

9095001518

main90950-01518

9095001529

main90950-01529

9095001539

main90950-01539

9095001550

main90950-01550

9095001631

main90950-01631

9095001711

main90950-01711

9095001764

main90950-01764

9095001866

main90950-01866

46 parts on this diagram · 1 diagram in section
