RADIATOR GRILLE

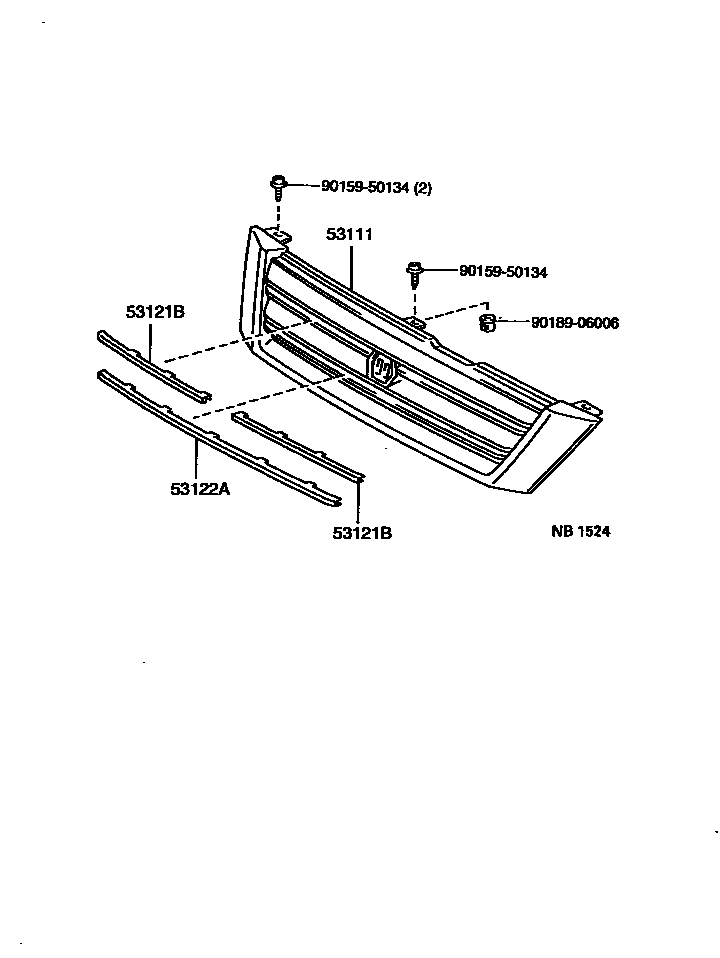

Parts diagram

53111GRILLE, RADIATOR

main53111-20850-A0i199601-199712

SUPER WHITE 2,040

main53111-20850-B0i199601-199712

SILVER PEARL ME.,1A7

main53111-20850-D0i199601-199712

MAGENTA MC.,3L3

main53111-20850-E0i199601-199712

BEIGE M.M.,4N3

main53111-20850-G0i199601-199712

GRAYISH GREEN M.M.,6N0

main53111-20850-G1i199601-199712

DK.GREEN M.M.,6P2

main53111-20850-J0i199601-199712

DK.BLUE M.M.,8L3

main53111-20880-A0i199712

SUPER WHITE 2,040

main53111-20880-B0i199712

CRYSTAL SILVER PEARL,1C1 ,2EG

main53111-20880-E0i199712

FLAXEN MM,4M7

main53111-20880-G0i199712-200101

GRAYISH GREEN M.M.,6N0

main53111-20880-G1i199712-200101

DK.GREEN M.M.,6P2

main53111-20880-J0i199712-200101

DK.BLUE M.M.,8L3

main53111-20880-J1i200101

DK.BLUE M.M.,8P4

53121BMOULDING, RADIATOR GRILLE, UPPER

main53121-20200i199601-199712

RH

main53124-20030i199601-199712

LH

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-20140i199601-199712

9015950134

main90159-50134

9018906006

main90189-06006

5 parts on this diagram · 2 diagrams in section
