SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20320iAT210,ST210199601

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20110iAT210,ST210199601-199805

sub51204-20111

main51204-20111iAT210,ST210199805

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20080iAT210,ST210199601-199912

sub51206-21030

main51206-21030iAT210,ST210199912

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iAT210,ST210199601

51441CCOVER, ENGINE UNDER, RH

main51441-20380iAT210,ST210199601

51442CCOVER, ENGINE UNDER, LH

main51442-20450iAT210,ST210199601

51963BHOOK, TRANSPORT, FRONT RH

main51963-20130iAT210,ST210199601

51967BHOOK, TRANSPORT, REAR RH

main51967-20180iAT210,ST210199601

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20010iAT210,ST210199601

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20010iAT210,ST210199601

52295BBRACE, REAR SUSPENSION MEMBER, RH

main52295-20030iAT210,ST210199601

5305

9011906665

main90119-06665

9011908963

main90119-08963

9011910483

main90119-10483

9011910722

main90119-10722

9011910752

main90119-10752

9011912336

main90119-12336

9011914044

main90119-14044

9011914047

main90119-14047

9012908001

main90129-08001

9015960383

main90159-60383

9018906006

main90189-06006

9018906193

main90189-06193

9095001392

main90950-01392

9095001398

main90950-01398

9095001529

main90950-01529

9095001611

main90950-01611

9095001641

main90950-01641

91626B0616

main91626-B0616

91645C0825

main91645-C0825

91651B0614

main91651-B0614

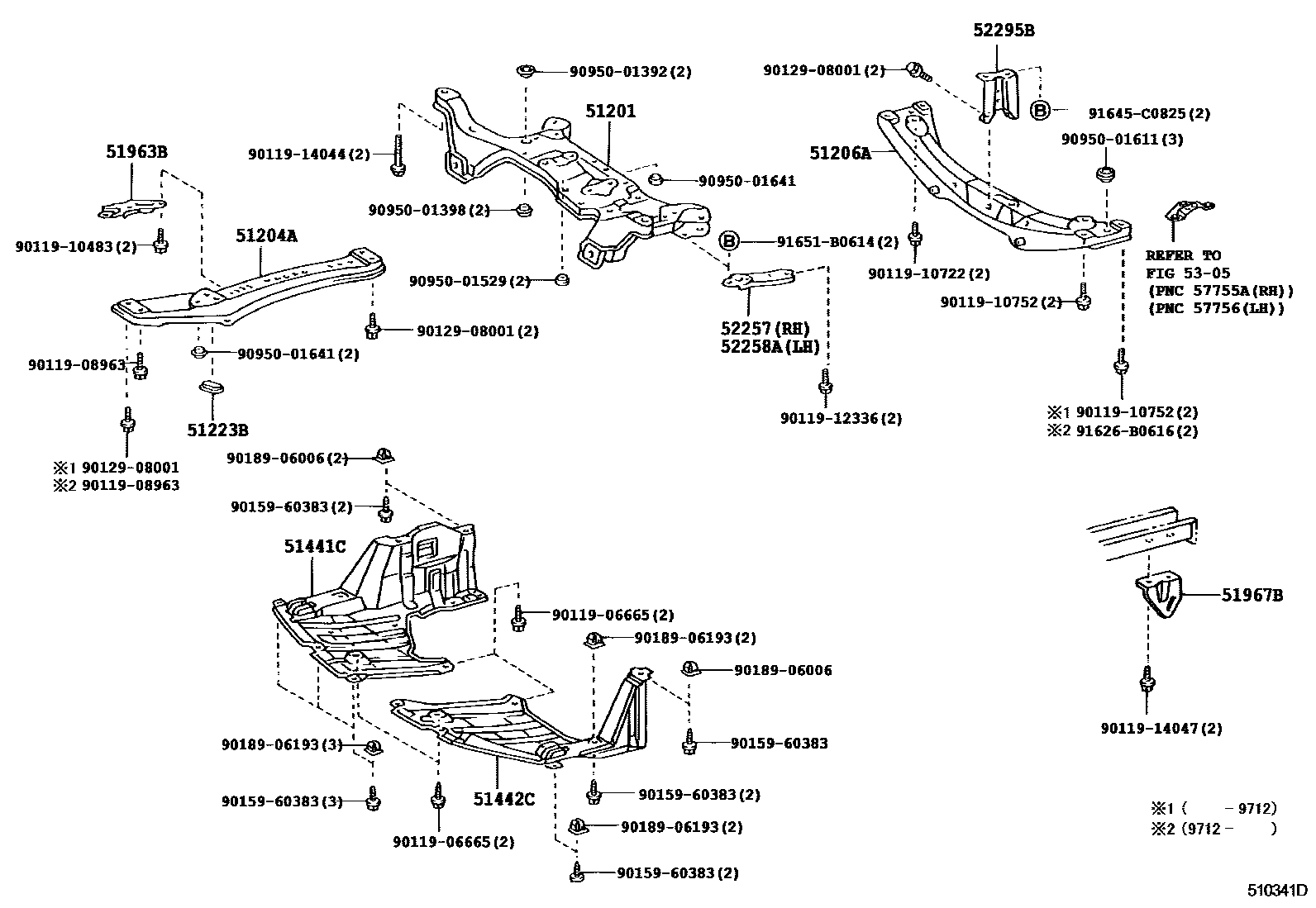

32 parts on this diagram · 1 diagram in section
