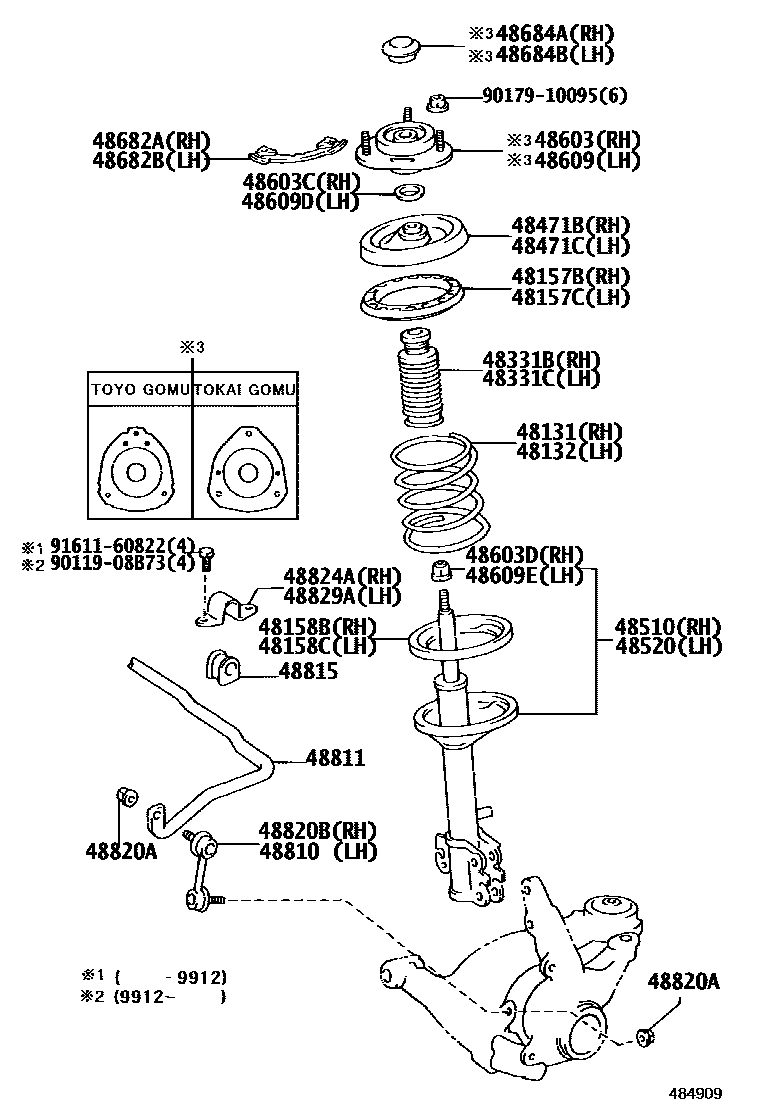

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
L=353.0
L=361.5
L=358.3
L=345.0
48132SPRING, FRONT COIL, LH
L=353.0
L=361.5
L=358.3
L=345.0
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
TOYO GOMU
TOKAI GOMU
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
TOYO GOMU
TOKAI GOMU
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
TOYO GOMU
TOKAI GOMU
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
TOYO GOMU
TOKAI GOMU
48810LINK ASSY, FRONT STABILIZER, LH
sub48810-44010
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
sub48820-44010
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908B73
main90119-08B73
9017910095
main90179-10095
9161160822
main91611-60822
32 parts on this diagram · 1 diagram in section
