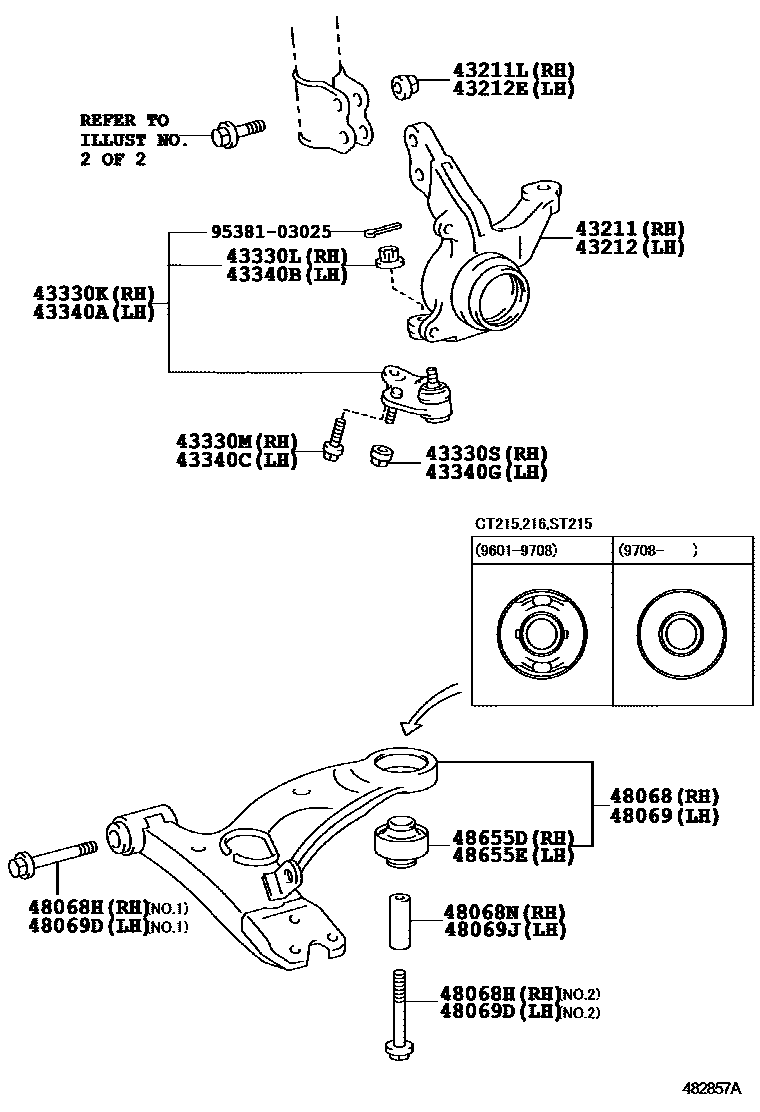

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-20300iAT210,ST210199601-199804

sub43211-20301

main43211-20301iAT210,ST210199804

sub43211-59055

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iAT210,ST210199601-199711

main90179-15004iAT210,ST210200111-200112

main90179-15006iAT210,ST210199711-200111

43212KNUCKLE, STEERING, LH

main43212-20300iAT210,ST210199601-199804

sub43212-20301

main43212-20301iAT210,ST210199804

sub43212-59055

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iAT210,ST210199601-199711

main90179-15004iAT210,ST210200111-200112

main90179-15006iAT210,ST210199711-200111

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29375iAT210,ST210199601

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAT210,ST210199601

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12122iAT210,ST210199601-199806

main90105-12156iAT210,ST210199806

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12052iAT210,ST210199601-199806

main90179-12070iAT210,ST210199806

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29375iAT210,ST210199601

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAT210,ST210199601

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12122iAT210,ST210199601-199806

main90105-12156iAT210,ST210199806

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12052iAT210,ST210199601-199806

main90179-12070iAT210,ST210199806

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-20220iAT210,ST210199601-199708

sub48068-20221

main48068-20221iAT210,ST210199708

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14023iAT210,ST210199601

ARM NO.1

main90119-14046iAT210,ST210199601

ARM NO.2

48068NCOLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90389-19002iAT210,ST210199601

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-20220iAT210,ST210199601-199708

sub48069-20221

main48069-20221iAT210,ST210199708

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14023iAT210,ST210199601

ARM NO.1

main90119-14046iAT210,ST210199601

ARM NO.2

48069JCOLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90389-19002iAT210,ST210199601

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-20220iAT210,ST210199601-199708

main48655-20221iAT210,ST210199708

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-20220iAT210,ST210199601-199708

main48655-20221iAT210,ST210199708

9538103025

main95381-03025

21 parts on this diagram · 2 diagrams in section
