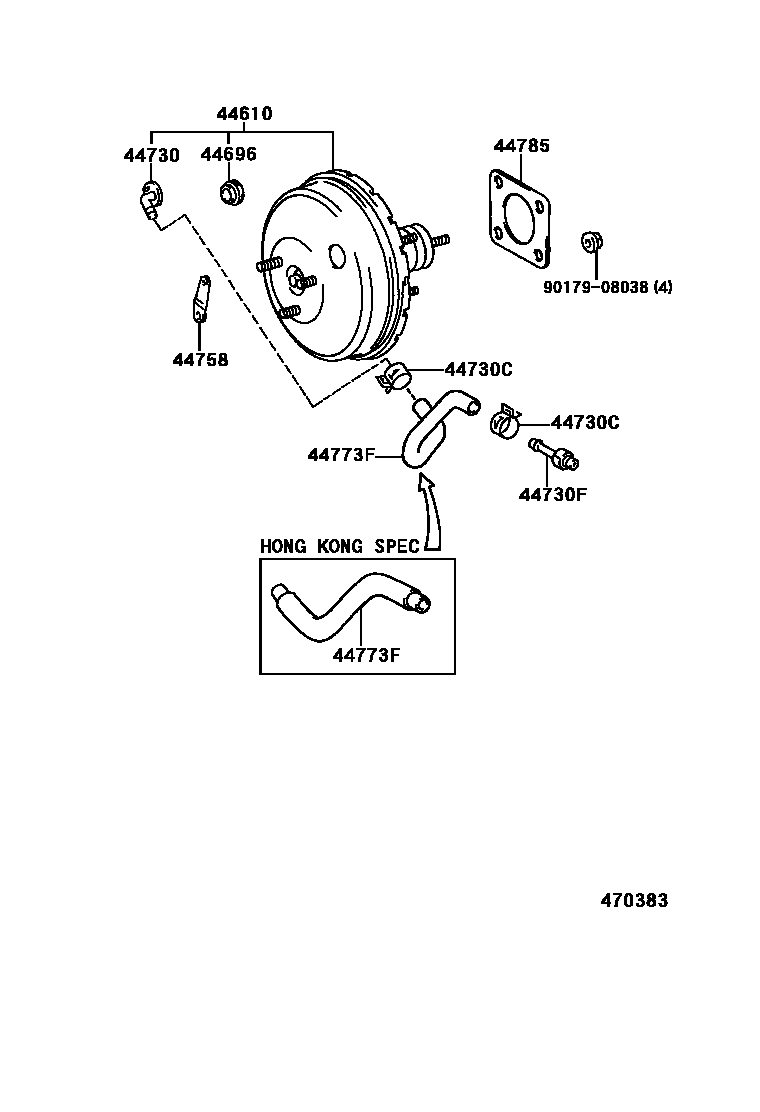

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-21070iAT210,ST210199708

main44610-2D750iAT210,ST210199601-199708

sub44610-21070

44696GROMMET, CHECK VALVE

main90480-24439iAT210,ST210199601-199712

main90480-24517iAT210,ST210199712

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iAT210,ST210199601-199712

main44730-28010iAT210,ST210199712

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iAT210,ST210199601

sub96134-51500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAT210,ST210199601

44758BRACKET, VACUUM CHECK VALVE

main44758-20290iAT210,ST210199601

44773FHOSE, UNION TO CHECK VALVE

main44773-20810iAT210199601

main44773-20820iST210199605-199712

HONG KONG SPEC

main44773-2B080iST210199601

44785GASKET, BRAKE BOOSTER

main44785-20020iAT210,ST210199601

9017908038

main90179-08038

9 parts on this diagram · 1 diagram in section
