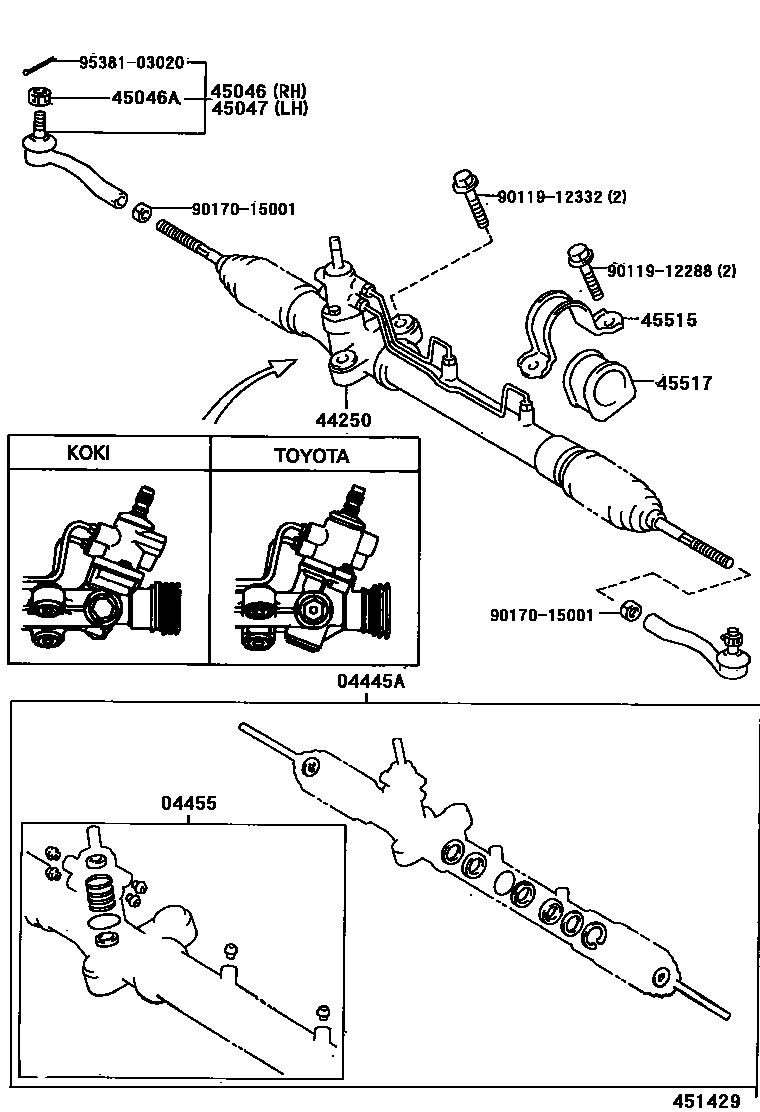

FRONT STEERING GEAR & LINK

0001 1 0002 1TOYOTA 0003 1TOYODA KOKI

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20161iST210199601-200112

main04445-20170iAT210,ST210199604-200112

TOYOTA

main04445-20210iAT210199601-199604

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20080iAT210199601-199604

main04455-20120iST210199601-200112

main04455-20130iAT210,ST210199604-200112

TOYOTA

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20610iAT210,ST210199604-199606

TOYOTA

main44250-20611iAT210,ST210199606-200112

TOYOTA

main44250-20620iST210199601-199605

main44250-20621iAT210,ST210199605-200112

TOYODA KOKI

45046END SUB-ASSY, TIE ROD, RH

main45046-29335iAT210,ST210199601-200112

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAT210,ST210199601

45047END SUB-ASSY, TIE ROD, LH

main45047-29105iAT210,ST210199601-200112

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20160iAT210,ST210199601

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20150iST210199601-199801

main45517-20190iAT210199601-199604

sub45517-44010

main45517-20250iAT210,ST210199801-200112

TOYODA KOKI

main45517-20260iAT210,ST210199801-200112

TOYOTA

9011912288

main90119-12288

9011912332

main90119-12332

9017015001

main90170-15001

9538103020

main95381-03020

12 parts on this diagram · 3 diagrams in section
