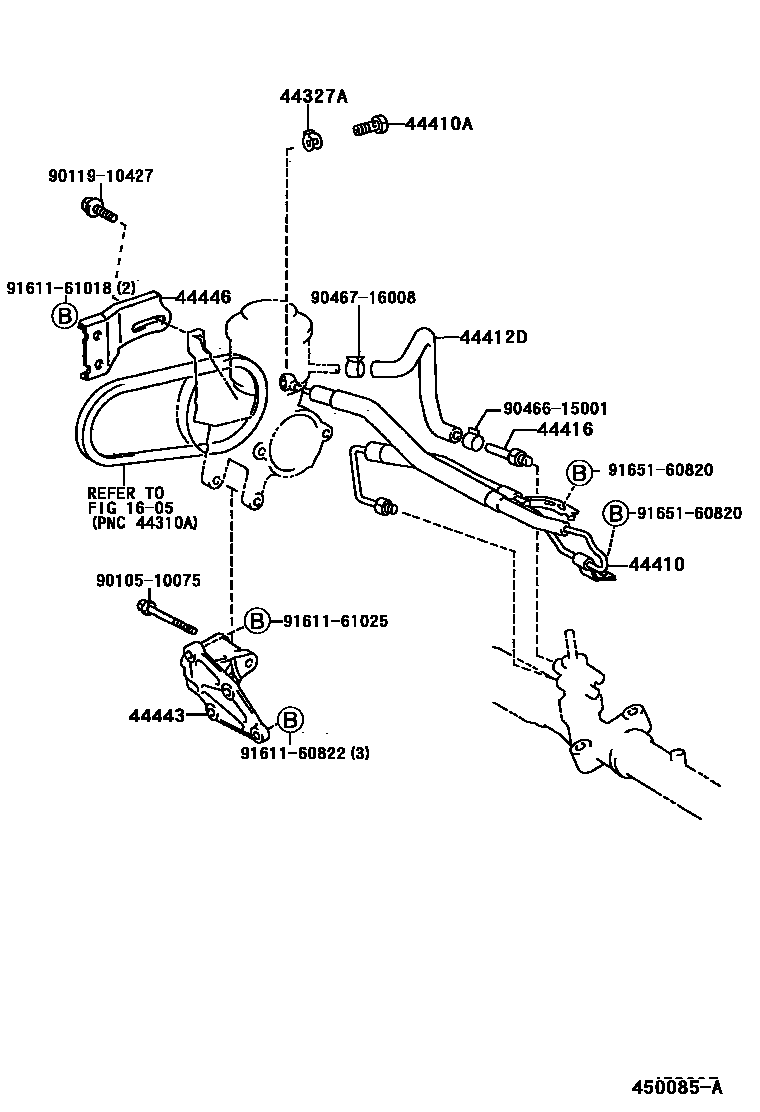

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAT210,ST210199601

44410TUBE ASSY, PRESSURE FEED

main44410-2B160iAT210199601

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iST210199608

main90401-16008iST210199608-199712

HONG KONG SPEC,W(OIL PRESSURE SWITCH)

main96341-41603iAT210199901

44412DHOSE, RETURN, NO.1

main44412-20190iAT210199601

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iAT210,ST210199601

44443BRACKET, PUMP

main44443-12050iAT210199601

main44443-32070iST210199601

44446STRUT, ADJUSTING

main44446-12060iAT210199601

9010510075

main90105-10075

9011910427

main90119-10427

9046615001

main90466-15001

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9165160820

main91651-60820

16 parts on this diagram · 2 diagrams in section
