FRONT AXLE HUB

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-20080iAT210,ST210199601

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-20080iAT210,ST210199601

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12020iAT210,ST210199601

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12020iAT210,ST210199601

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-20131iAT210,ST210199601

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAT210,ST210199601

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38003iAT210,ST210199601

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iAT210,ST210199601

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-22001iAT210,ST210199709

main90179-22020iAT210,ST210199601-199709

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-20131iAT210,ST210199601

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAT210,ST210199601

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38003iAT210,ST210199601

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iAT210,ST210199601

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-22001iAT210,ST210199709

main90179-22020iAT210,ST210199601-199709

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90311-52020iAT210,ST210199601

43511HSEAL, OIL (FOR FRONT AXLE HUB INNER RH)

main90311-56029iAT210,ST210199601

43512DISC, FRONT

main43512-20450iAT210,ST210199601-199712

sub43512-32301

main43512-20470iAT210,ST210199712-199912

sub43512-21010

main43512-21010iAT210,ST210199912

sub43512-20701

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90311-52020iAT210,ST210199601

43512GSEAL, OIL (FOR FRONT AXLE HUB INNER LH)

main90311-56029iAT210,ST210199601

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iAT210,ST210199601

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iAT210,ST210199601

9538104030

main95381-04030

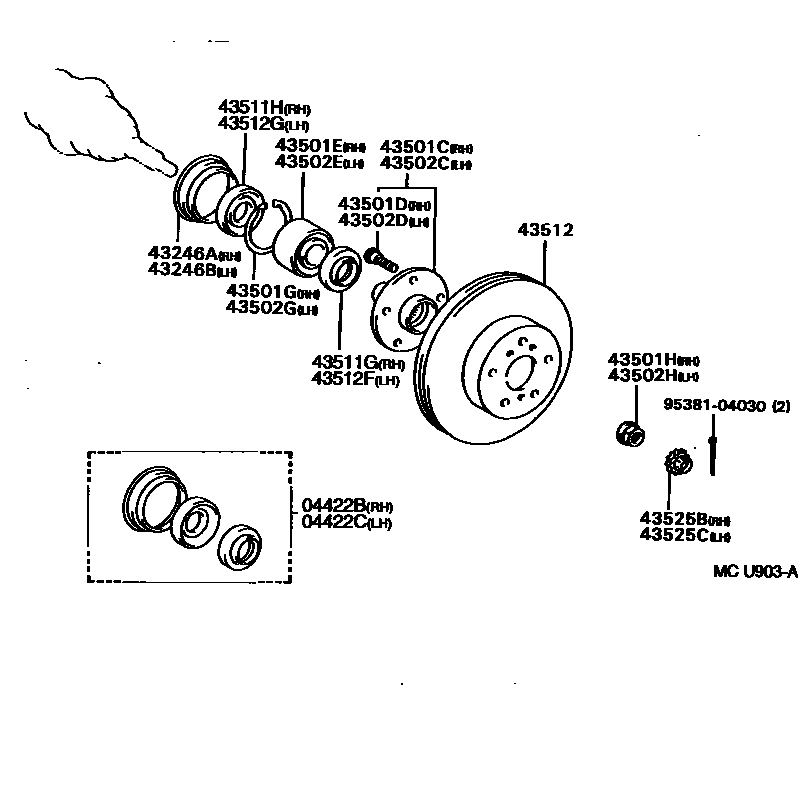

22 parts on this diagram · 1 diagram in section
