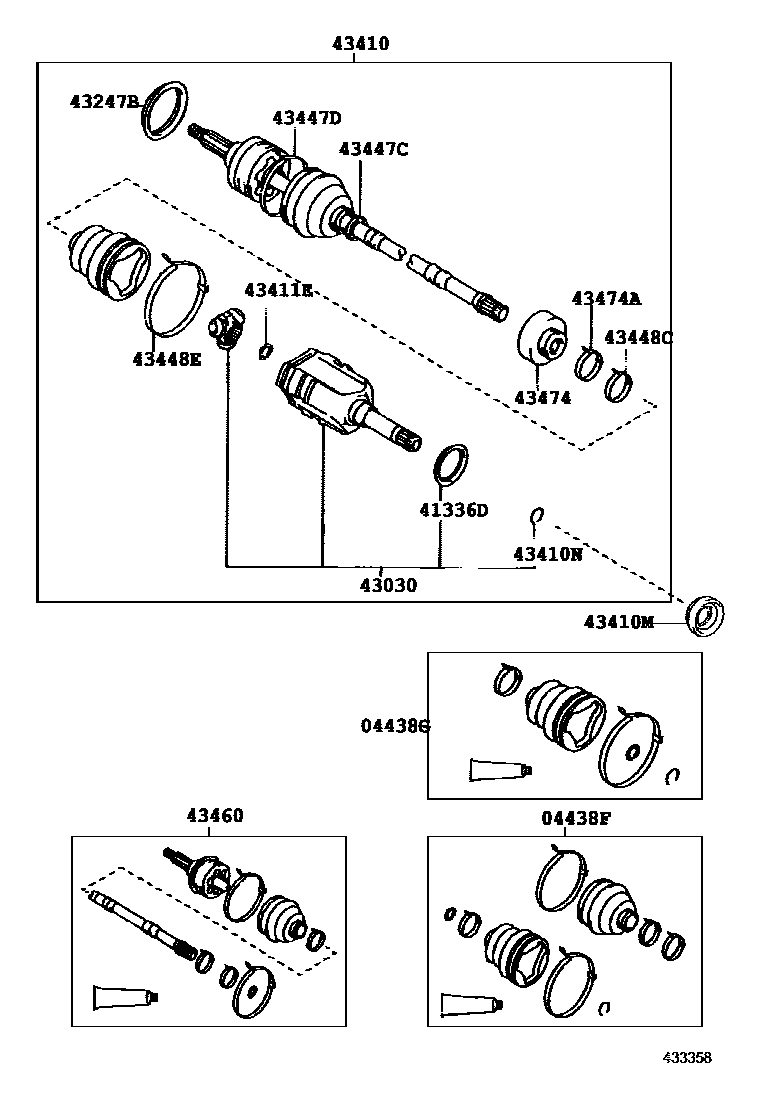

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0006 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12172iAT210199601-199810

sub04428-12270

main04438-12290iST210199601-199804

sub04438-20131

main04438-12481iST210200104

sub04428-12250

main04438-20131iST210199804-199901

sub04438-20134

main04438-20132iST210199901-200104

sub04438-20133

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12410iAT210199601-199810

sub04438-12840

main04438-12420iST210199601-199804

sub04438-20121

main04438-12470iST210200104

sub04438-32240

main04438-20121iST210199804-200104

sub04438-12470

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iAT210..ATM199601-199810

main41336-20011iST210199601-199908

sub41336-20050

main41336-20050iST210199908

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-20030iST210199601-199806

sub43030-32060

main43030-32060iST210199806

main43403-12040iAT210..ATM199601-199808

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iAT210,ST210199601

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20450iAT210199601-199709

sub43410-20451

sub90178-22001

main43410-20451iAT210199709-200112

sub43410-20452

main43410-20580iST210199601-199712

sub43410-20581

sub90178-22001

main43410-20581iST210199712-199901

sub43410-20582

main43410-20582iST210199901-200104

sub43410-20583

main43410-20583iST210200104-200112

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34012iAT210..ATM199601-199908

main90311-34016iAT210..MTM199601-199810

main90311-34023iAT210199908

main90311-35019iST210199601-199908

main90311-35045iST210199908

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iST210199601

main90521-26004iAT210199601-199810

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iAT210,ST210199601-199810

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150iST210200104

ID=29.6

sub42345-12190

main42345-16010iAT210199601-199712

ID=32.5

main42345-16030iST210199601-199712

main42345-20100iST210199901-200104

ID=31.1

main90949-01078iAT210199712

ID=32.7

main90949-01947iST210199712-199901

ID=35.45

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12140iST210200104

ID=92.0

sub42345-12180

main42345-16040iST210199601-199712

ID=91.9

main42345-20120iST210199901-200104

ID=90.6

main90949-01076iST210199712-199901

ID=92.2

sub42345-12160

main90949-01080iAT210199601-199808

ID=88.2

main90949-01946iST210199712-199901

ID=91.9

sub42345-12160

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iAT210,ST210199601-199712

main90949-01078iAT210,ST210199712-199808

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iAT210,ST210199601-199712

main90949-01076iAT210..ATM199712-199808

sub42345-12160

main90949-01076iST210199712

ID=92.2

sub42345-12160

main90949-01946iST210199712

ID=91.9

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29167iAT210199601-199709

sub43460-29168

sub90178-22001

main43460-29168iAT210199709-199810

sub43460-80095

main43470-19655iST210199601-199709

sub43470-19656

sub90178-22001

main43470-19656iST210199709-199804

sub43470-19657

main43470-19657iST210199804-199901

sub43470-19658

main43470-19658iST210199901-200104

sub43470-19659

main43470-19659iST210200104

43474DAMPER, DRIVE SHAFT

main43474-12040iAT210..ATM199704-199810

sub43474-12130

main43474-20050iAT210199601-199704

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-16030iAT210199601-199810

16 parts on this diagram · 5 diagrams in section
