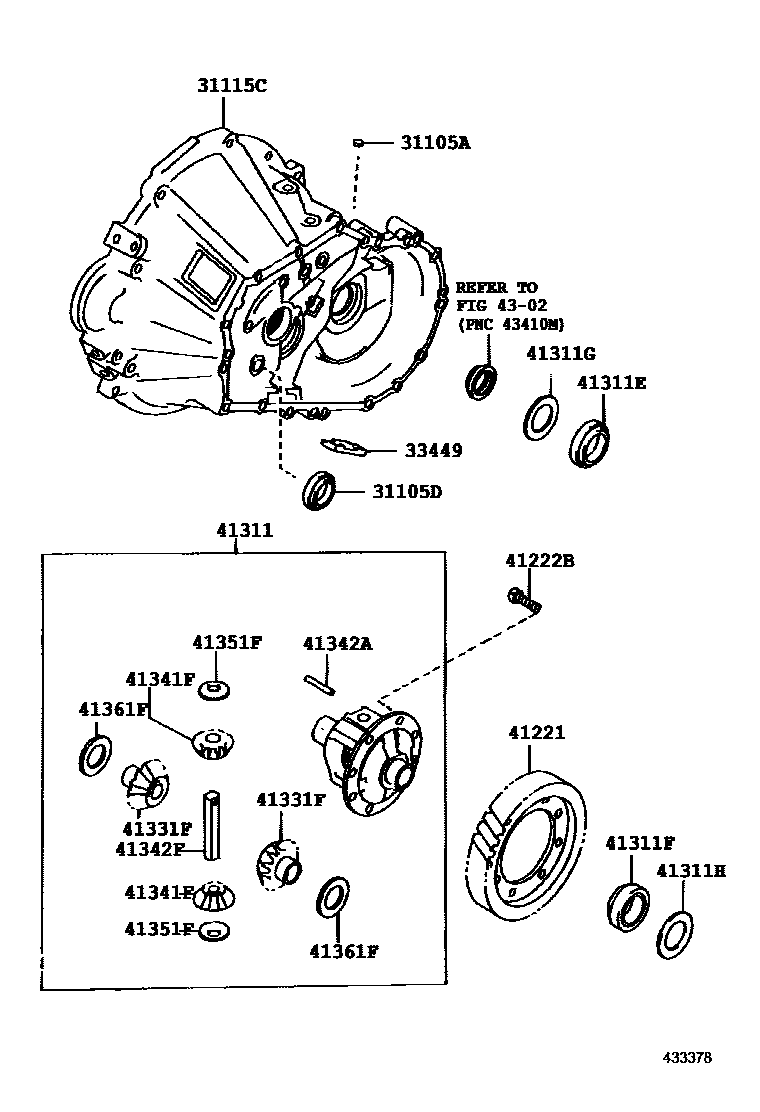

FRONT AXLE HOUSING & DIFFERENTIAL
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
33449MAGNET, TRANSMISSION
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CASE, FRONT DIFFERENTIAL
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.10
T=2.00,MARK V
T=2.60,MARK 15
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK V
T=2.35,MARK A
T=2.40,MARK B
T=2.45,MARK C
T=2.50,MARK D
T=2.55,MARK E
T=2.60,MARK F
T=2.65,MARK G
T=2.70,MARK H
T=2.75,MARK J
T=2.80,MARK K
T=2.85,MARK L
T=2.90,MARK M
T=2.10,MARK Q
T=2.15,MARK R
T=2.20,MARK S
T=2.25,MARK T
T=2.30,MARK U
T=2.05,MARK W
T=2.00,MARK 01
T=2.05,MARK 02
T=2.10,MARK 03
T=2.15,MARK 04
T=2.20,MARK 05
T=2.25,MARK 06
T=2.30,MARK 07
T=2.35,MARK 08
T=2.40,MARK 09
T=2.45,MARK 10
T=2.50,MARK 11
T=2.55,MARK 12
T=2.60,MARK 13
T=2.65,MARK 14
T=2.70,MARK 15
T=2.75,MARK 16
T=2.80,MARK 17
T=2.85,MARK 18
T=2.90,MARK 19
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
4302
18 parts on this diagram · 3 diagrams in section
