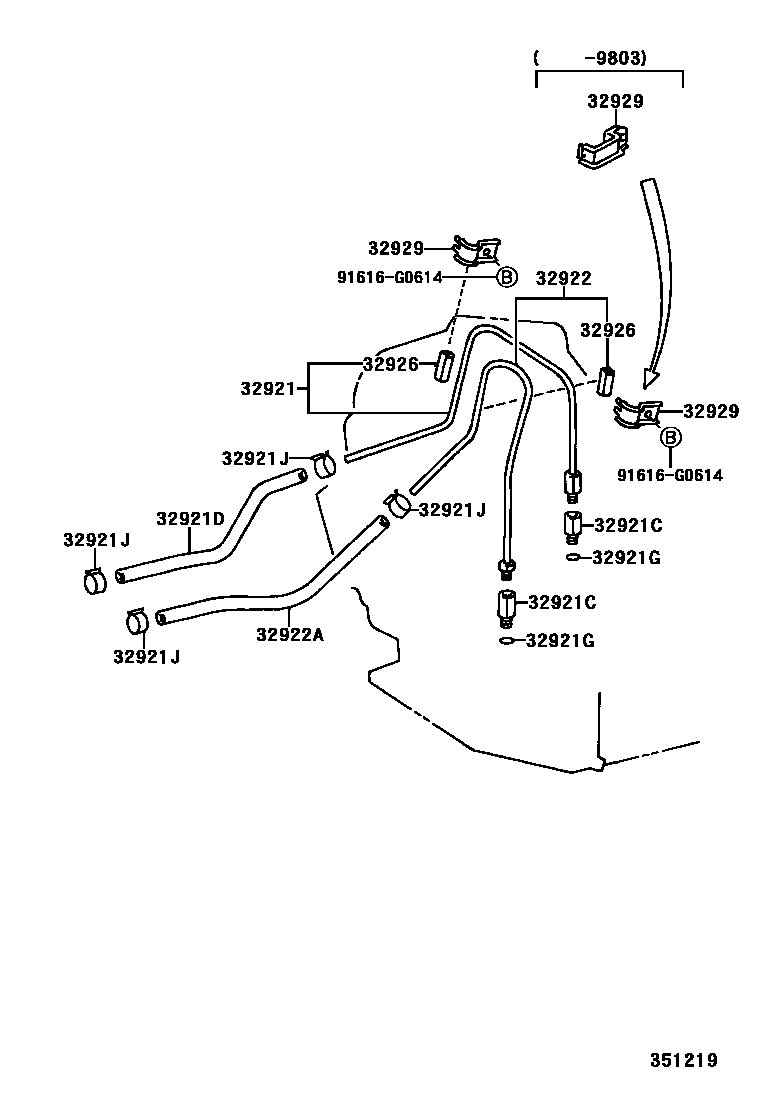

OIL COOLER & TUBE (ATM)

0001 1A245E 0002 1A241E 0003 1A247E

32921TUBE, OIL COOLER INLET, NO.1

main32921-20390iST210199601-199712

main32921-20410iAT210..ATM199601-199803

main32921-20470iAT210..ATM199803

main32921-21040iST210199712

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iST210199601-199712

main90404-14019iST210199712

main90404-16032iAT210..ATM199601

32921DHOSE(FOR OIL COOLER INLET)

main90445-15047iST210199712

main90445-15052iST210199601-199712

main90445-17117iAT210..ATM199601-199803

main90445-17124iAT210..ATM199803

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iST210199601-199712

main90301-11006iAT210..ATM199601-199712

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iST210199601

sub96135-51300

main90467-16013iAT210..ATM199601

sub90467-16022

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20410iST210199601-199712

main32922-20420iAT210..ATM199601-199803

main32922-20500iAT210..ATM199803

main32922-21050iST210199712

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15047iST210199712

main90445-15048iST210199601-199712

main90445-17117iAT210..ATM199601-199803

main90445-17124iAT210..ATM199803

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iST210199601

L=35,ID=8

main32926-30020iAT210..ATM199601

L=35,ID=10

32929CLAMP, FLEXIBLE HOSE, NO.2

main32924-20080iAT210..ATM199803

sub32924-48010

main32929-22050iAT210..ATM199601-199803

91616G0614

main91616-G0614

10 parts on this diagram · 3 diagrams in section
