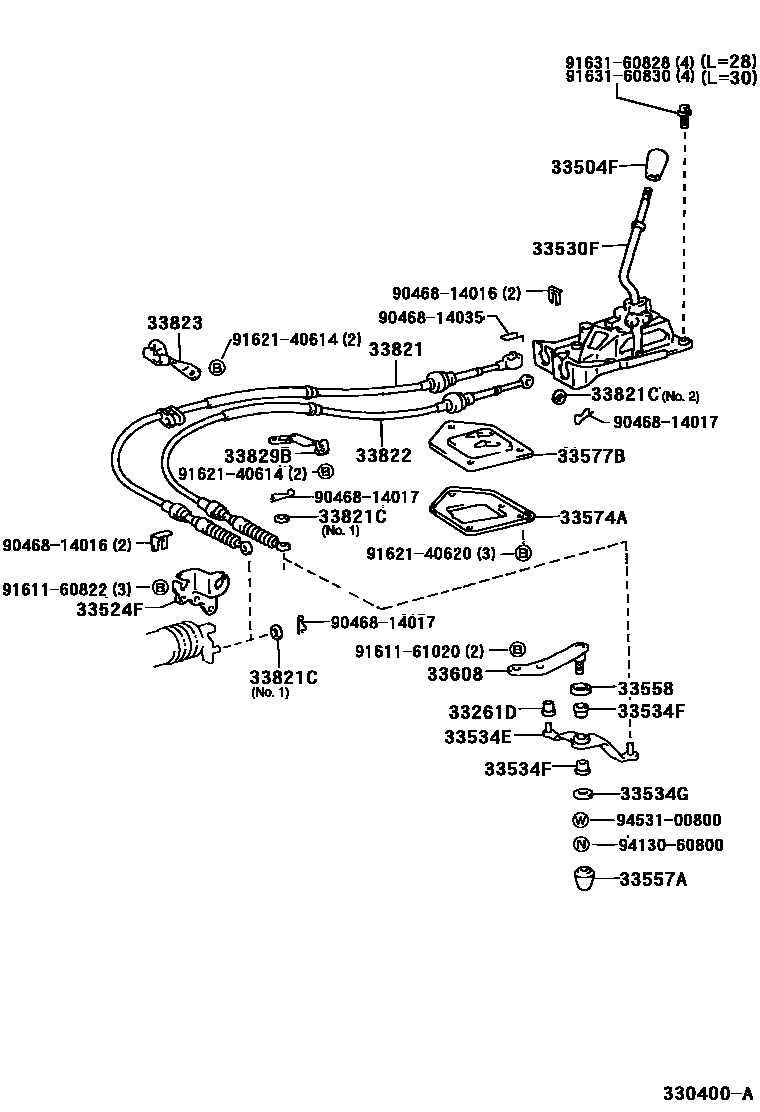

SHIFT LEVER & RETAINER
33261DBUSH (FOR SHIFT & SELECT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#,4#
BLACK,TRIM11,17
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33574ARETAINER, SHIFT CABLE GROMMET, NO.1
33577BCOVER, CONTROL SHAFT HOLE
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
OD=30,NO.1
NO.2
OD=18
33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33829BCLAMP, TRANSMISSION CONTROL CABLE
NO.1
NO.2
NO.1
9046814016
main90468-14016
9046814017
main90468-14017
9046814035
main90468-14035
9161160822
main91611-60822
9161161020
main91611-61020
9162140614
main91621-40614
9162140620
main91621-40620
9163160828
main91631-60828
9163160830
main91631-60830
9413060800
main94130-60800
9453100800
main94531-00800
28 parts on this diagram · 3 diagrams in section
