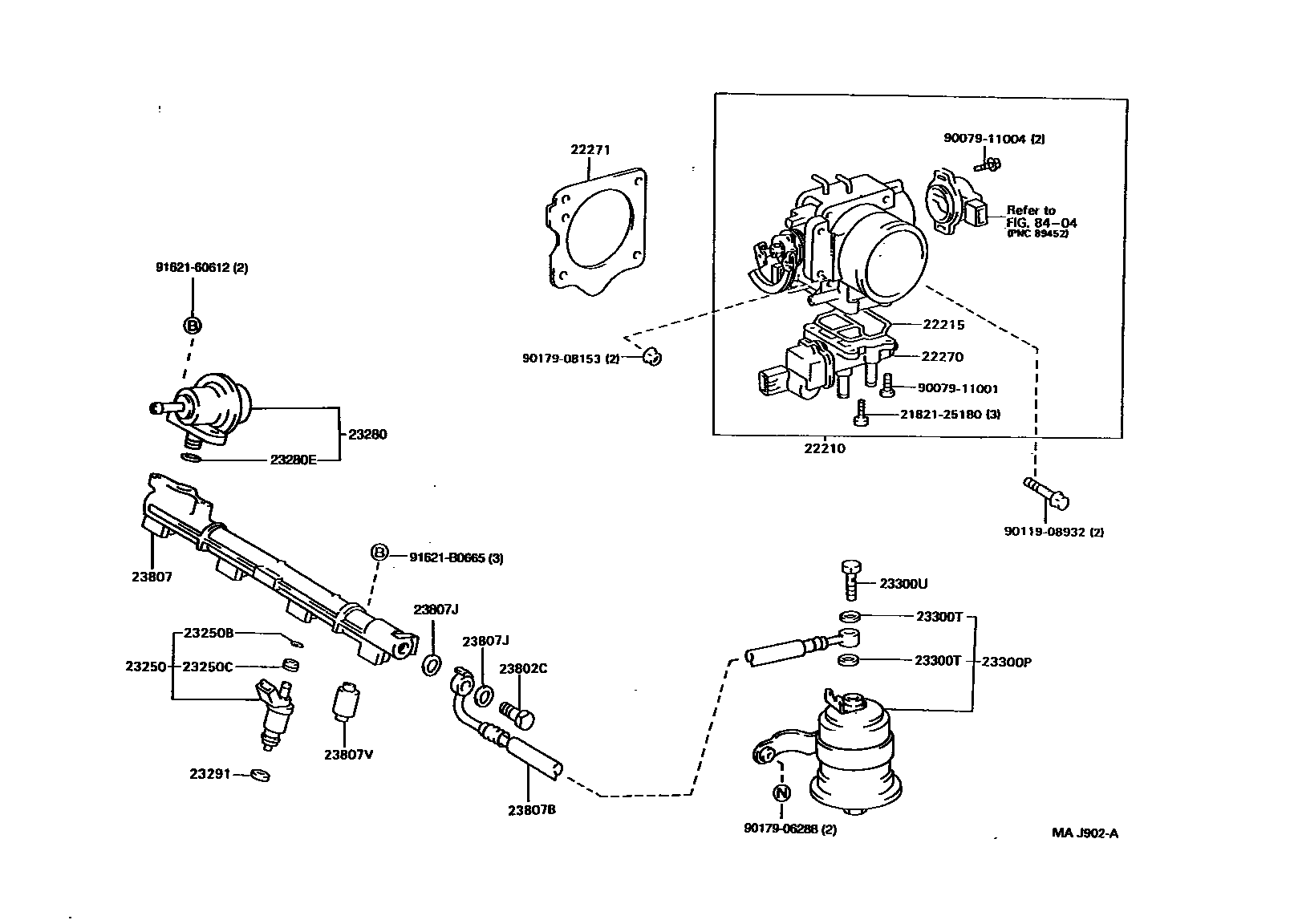

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W(EGR) 0007 1

22210BODY ASSY, THROTTLE

main22210-16870i4AFE..AT210199601-199810

main22210-1A060i4AFE..AT210199810

main22210-7A300i3SFE..ST210199601-199712

W(EGR)

main22210-7A560i3SFE..ST210199601-199607

main22210-7A610i3SFE..ST210199607-199712

main22210-7A650i3SFE..ST210199712

22215GASKET, THROTTLE BODY COVER

main22215-74400i4AFE..AT210199601

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-16060i4AFE..AT210199601-199810

main22270-16090i4AFE..AT210199810

main22270-74140i3SFE..ST210199601-199712

W(EGR)

main22270-74270i3SFE..ST210199601-199607

main22270-74350i3SFE..ST210199607

22271GASKET, THROTTLE BODY

main22271-15020i4AFE..AT210199601

main22271-74022i3SFE..ST210199601-199712

W(EGR)

main22271-74070i3SFE..ST210199601

23250INJECTOR ASSY, FUEL

main23209-15040×4i4AFE..AT210199810

main23209-16170×4i4AFE..AT210199601-199810

main23209-74100×4i3SFE..ST210199601-199712

W(EGR)

main23209-74170×4i3SFE..ST210199601

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i4AFE..AT210199601-199812

main90301-07024×4i4AFE..AT210199812

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i3SFE..ST210199601

23280REGULATOR ASSY, FUEL PRESSURE

main23280-15020i4AFE..AT210199810

main23280-16150i4AFE..AT210199601-199810

main23280-74100i3SFE..ST210199607

W(EGR)

main23280-74151i3SFE..ST210199607-199712

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AFE..AT210199601-199812

main90301-07024i4AFE..AT210199812

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i3SFE..ST210199601

23300PFILTER, FUEL(FOR EFI)

main23300-19465i4AFE..AT210199601

23300TGASKET(FOR FUEL FILTER)

main90430-12026×2i4AFE..AT210199601

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4AFE..AT210199601-199608

main96341-11200i4AFE..AT210199608

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i3SFE..ST210199601

main90401-12097i4AFE..AT210199601

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-15050i4AFE..AT210199810

sub23814-15051

main23814-16140i4AFE..AT210199601-199810

sub23814-16160

main23814-74110i3SFE..ST210199601

sub23814-74080

23807BHOSE, FUEL DELIVERY PIPE

main23271-15310i4AFE..AT210199810

main23271-16160i4AFE..AT210199601-199810

main23271-74570i3SFE..ST210199601

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026×2i4AFE..AT210199601

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-06017×3i4AFE..AT210199601-199810

main90561-08020×2i4AFE..AT210199810

main90561-08053×2i3SFE..ST210199601

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911001

main90079-11001

9007911004

main90079-11004

9011908932

main90119-08932

9017906288

main90179-06288

9017908153

main90179-08153

9162160612

main91621-60612

91621B0665

main91621-B0665

27 parts on this diagram · 7 diagrams in section
