IGNITION COIL & SPARK PLUG / GLOW PLUG

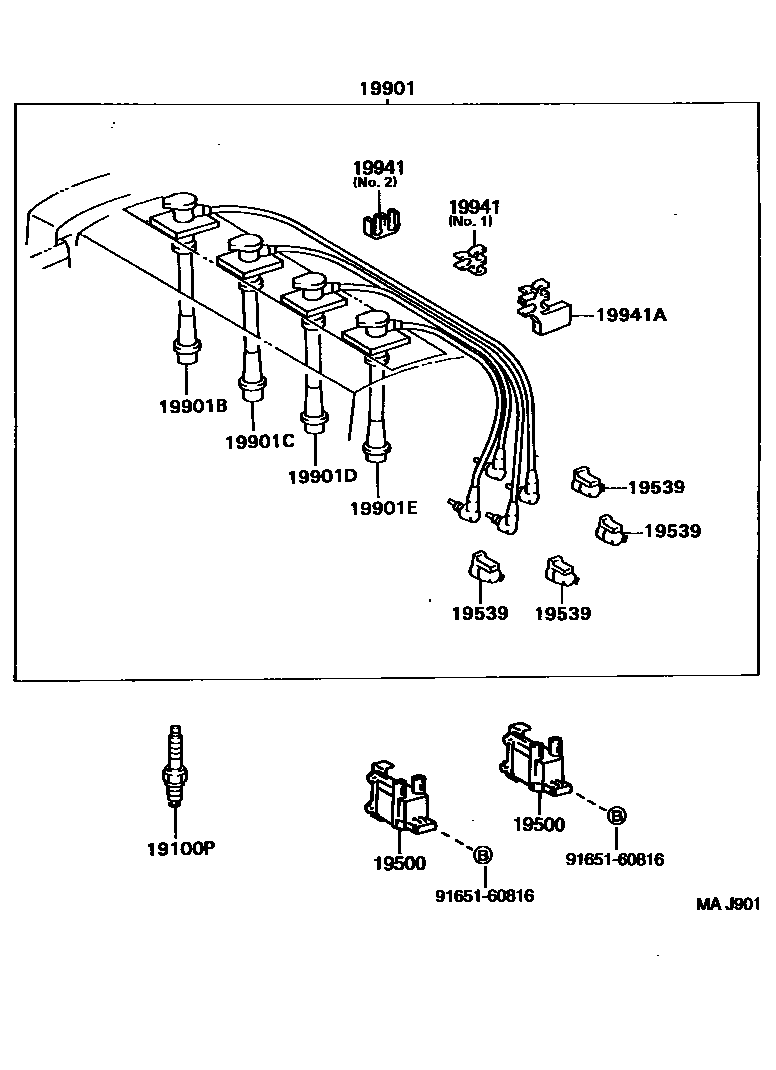

Parts diagram
19100PPLUG, SPARK
main90919-01166i199810
K20R-U
main90919-01184i199601-199712
K20R-U11,W(EGR)
main90919-01198i199601
K20TR11
main90919-01200i199601-199810
PK16TR13
main90919-01201i199601-199810
BKR5EKPB13
19500COIL ASSY, IGNITION
main19500-16020i199601-199810
19539HOLDER, RESISTIVE CODE, NO.4
main19531-46010i199601-199810
NO.2,3
main19532-50010i199810
NO.2,3
main19539-11010i199810
NO.4
main19539-46010i199601
NO.1
main19539-50010i199601-199810
NO.4
main19539-74040i199601-199712
W(EGR)
main19539-74050i199601
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-22327i199810
sub90919-22419
main90919-22370i199601-199712
W(EGR)
main90919-22381i199601-199810
main90919-22386i199601-199808
sub90919-22400
main90919-22400i199808
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-15211i199810
sub90919-15590
main90919-15409i199601-199712
W(EGR)
main90919-15466i199601-199808
sub90919-15546
main90919-15470i199601-199810
main90919-15546i199808
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-15210i199810
sub90919-15591
main90919-15411i199601-199712
W(EGR)
main90919-15465i199601-199808
sub90919-15547
main90919-15471i199601-199810
main90919-15547i199808
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-15209i199810
sub90919-15592
main90919-15410i199601-199712
W(EGR)
main90919-15464i199601-199808
sub90919-15548
main90919-15472i199601-199810
main90919-15548i199808
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-15208i199810
sub90919-15593
main90919-15261i199601-199712
W(EGR)
main90919-15463i199601-199808
sub90919-15549
main90919-15473i199601-199810
main90919-15549i199808
19941CLAMP, RESISTIVE CORD, NO.1
main90464-00561i199601
NO.1
main90464-00655i199601
NO.2
19941ACLAMP(FOR RESISTIVE CORD)
main90929-01273i199601
9165160816
main91651-60816

11 parts on this diagram · 3 diagrams in section
