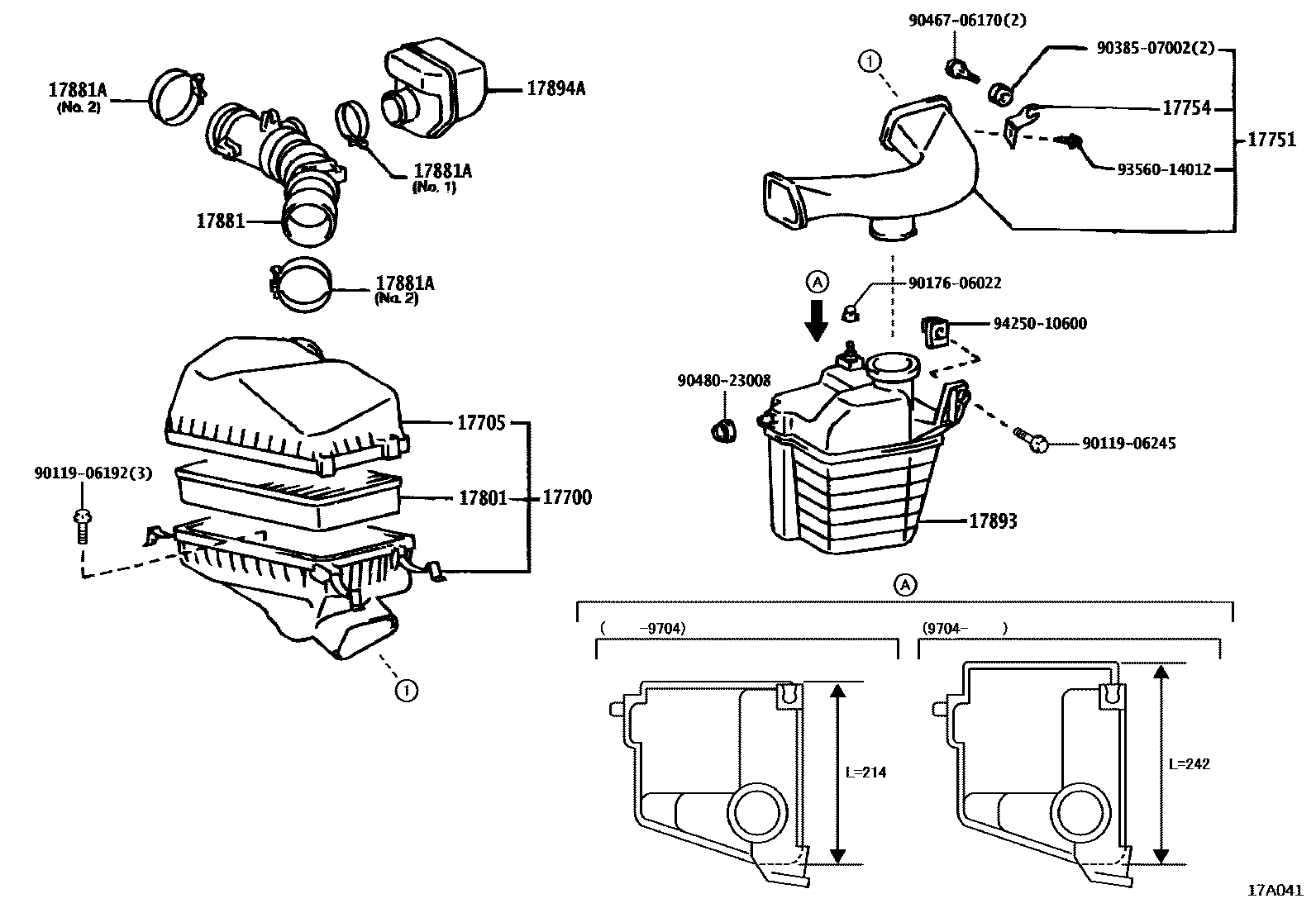

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-1A010i3SFE..ST210199601

17705CAP SUB-ASSY, AIR CLEANER

main17705-16500i3SFE..ST210199601

17751INLET, AIR CLEANER, NO.1

main17751-16110i3SFE..ST210199601

sub17751-64070

17754STAY, AIR CLEANER INLET

main17754-16010i3SFE..ST210199601

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74020i3SFE..ST210199601

17881HOSE, AIR CLEANER, NO.1

main17881-16380i4AFE..AT210199601-199810

main17881-16381i4AFE..AT210199810

main17881-74670i3SFE..ST210199601

main17881-74710i3SFE..ST210199601-199712

W(EGR)

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10530i3SFE..ST210199601

NO.1

main96111-10710×2i4AFE..AT210199601

NO.2

17893RESONATOR, INTAKE AIR

main17893-16130i3SFE..ST210199601-199704

main17893-74430i3SFE..ST210199704

17894ARESONATOR, INTAKE AIR, NO.2

main17894-16080i4AFE..AT210199601

main17894-74070i3SFE..ST210199601

main17894-74080i3SFE..ST210199601-199712

W(EGR)

9011906192

main90119-06192

9011906245

main90119-06245

9017606022

main90176-06022

9038507002

main90385-07002

9046706170

main90467-06170

9048023008

main90480-23008

9356014012

main93560-14012

9425010600

main94250-10600

17 parts on this diagram · 2 diagrams in section
