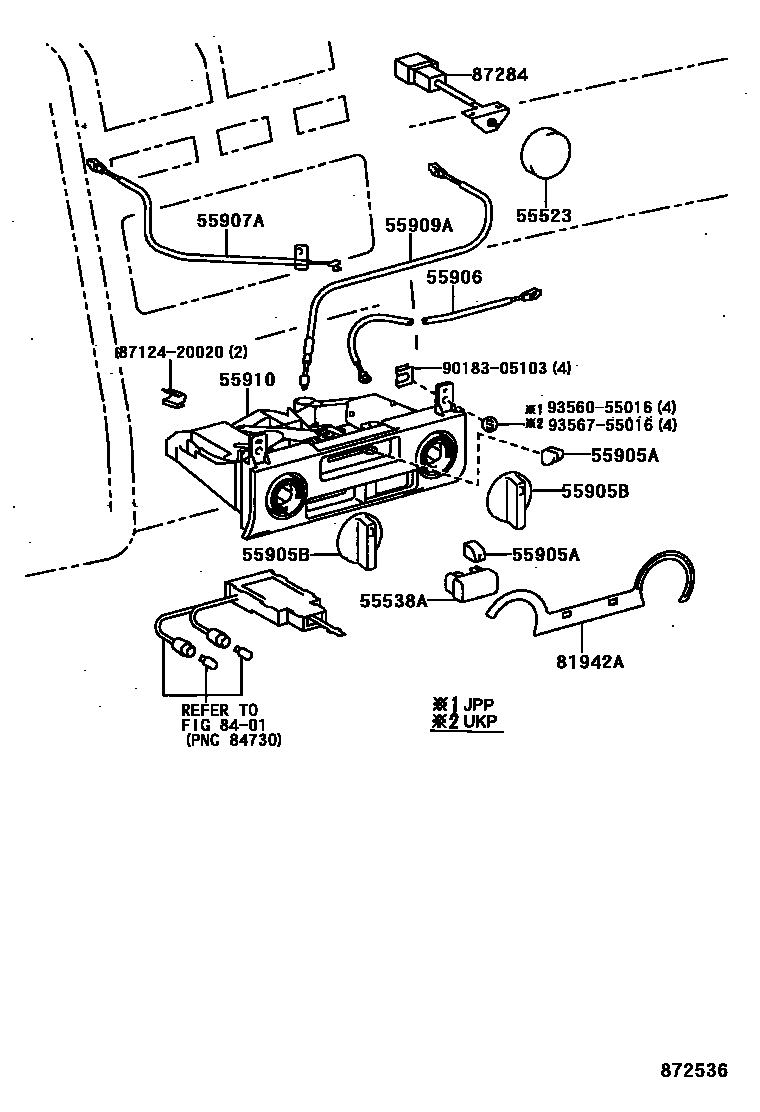

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER CONTROL TYPE 0002 1PUSH CONTROL TYPE 0003 1AIR DUCT

55523COVER, HEATER CONTROL OPENING

main55523-20030iAT190,CT190,ST191..JPP199203-199212

55538ACOVER, COOLER SWITCH HOLE

main55538-20070iAT190,CT190,ST191..JPP199203-199606

55905AKNOB, HEATER CONTROL

main55905-2B040×2iAT190,CT190,ST191..JPP199203-199606

55905BKNOB, HEATER CONTROL, NO.2

main55905-2B070×2iAT190..JPP199703-199711

sub55905-60160

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-20300iAT190..JPP199703-199711

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20290iAT190..JPP..LHD..MTM..XL199203-199212

MEMBER OF EUROPE SPEC OR HEATER & BOOST VENTILATOR

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20170iAT190,ST191..JPP..RHD199203-199211

main55909-20180iAT190..JPP..LHD..MTM..XL199203-199211

*EX-USSR

main55909-20210iAT190,ST191..JPP..RHD199606-199607

main55909-20220iAT190,CT190,ST191..JPP..LHD199212-199703

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-20600iAT190,ST191..JPP..RHD199203-199211

W(HEATER)

main55910-20601iAT190,ST191..JPP..RHD199211-199212

W(HEATER)

main55910-20620iAT190,ST191..JPP..RHD199606-199607

BOOST VENTILATOR

main55910-20630iAT190..JPP..ATM..XL;AT190,CT190,ST191..JPP..LHD..GL199203-199211

W(HEATER)

main55910-20631iAT190..JPP..LHD..MTM..XL199211-199212

W(HEATER)

main55910-20640iAT190,CT190,ST191..JPP..LHD199203-199212

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-20390iAT190,ST191..JPP..RHD199212-199402

W(HEATER) & DEALER OPT

main81942-20400iAT190,ST191..JPP..RHD199203-199212

main81942-20410iAT190..JPP..ATM..XL;AT190,CT190,ST191..JPP..LHD..GL199203-199212

W(HEATER)

main81942-20420iAT190,CT190,ST191..JPP..LHD199212-199703

BOOST VENTILATOR

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-20170iAT190,CT190,ST191..JPP199203-199606

8712420020CLAMP, HEATER

main87124-20020

9018305103

main90183-05103

9356055016

main93560-55016

9356755016

main93567-55016

15 parts on this diagram · 3 diagrams in section
