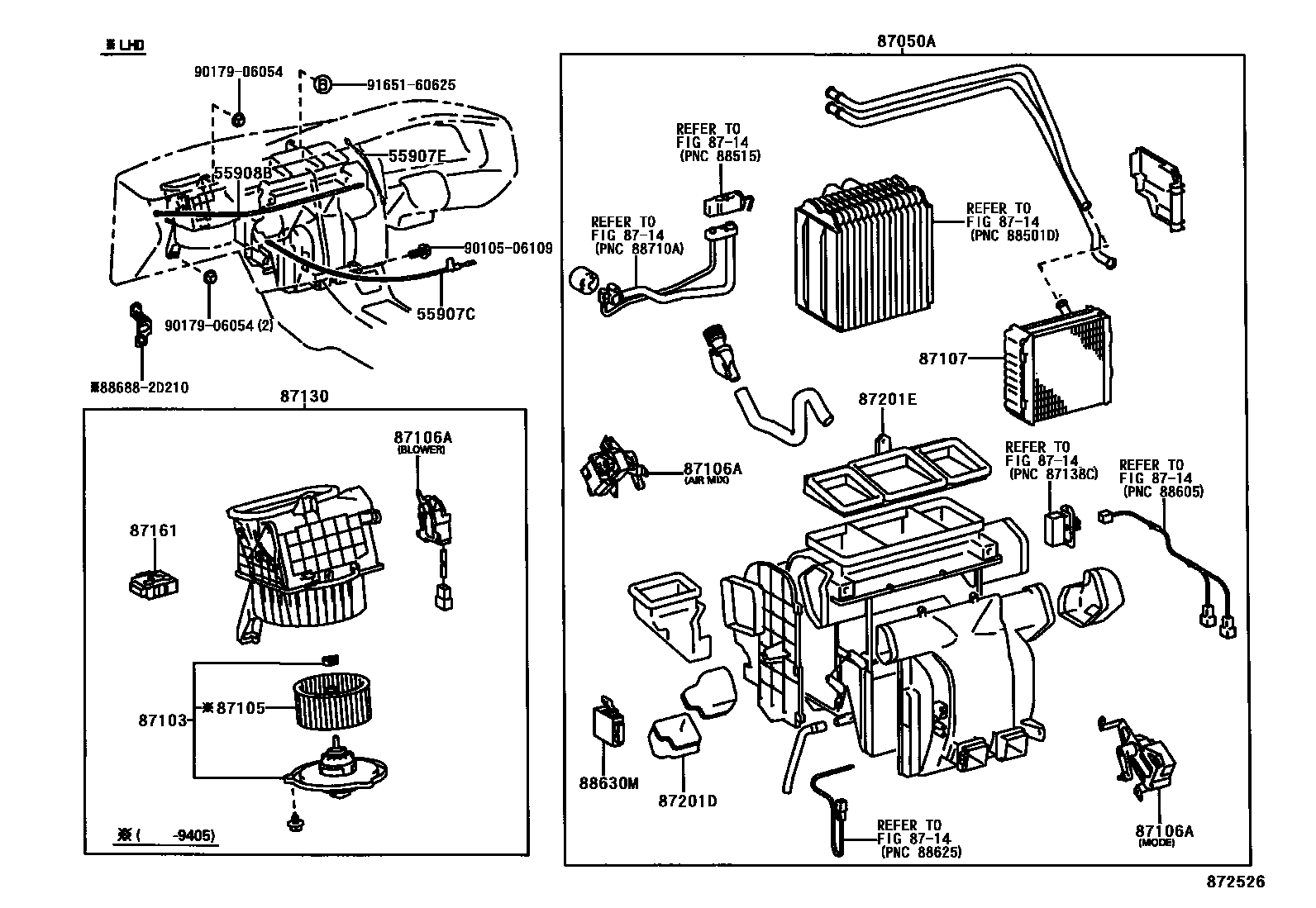

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER
55907CCABLE SUB-ASSY, WATER VALVE CONTROL
W(HEATER)
W(*PHC)
55907ECABLE SUB-ASSY, WATER VALVE CONTROL, NO.2
55908BCABLE SUB-ASSY, AIR INLET DAMPER CONTROL
87050ARADIATOR ASSY, AIR CONDITIONER
W(AIR CONDITIONER)
W(HEATER)
W(*PHC)
W(AIR CONDITIONER)
*EX-USSR,MAKER OPT
*EX-USSR,MAKER OPT
*EX-USSR
*EX-USSR
W(AIR CONDITIONER)
87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87106ASERVO SUB-ASSY, DAMPER
AIR MIX
MODE
87107UNIT SUB-ASSY, HEATER RADIATOR
EUROPE SPEC
EUROPE SPEC
87130BLOWER ASSY, HEATER, FRONT
W(BOOST VENTILATOR)
W(INT WIPER & HEATER & BOOST VENTILATOR)
sub87130-20550
W(*PHC)
8714
87161AMPLIFIER, HEATER SERVO MOTOR
87201DDUCT SUB-ASSY, AIR
87201EDUCT SUB-ASSY, AIR, NO.2
88630MRELAY ASSY, COOLER
886882D210BRACKET, COOLER DIAPHRAGM
main88688-2D210
9010506109
main90105-06109
9017906054
main90179-06054
9165160625
main91651-60625
18 parts on this diagram · 2 diagrams in section
