SPEAKER

0001 1 0002 1

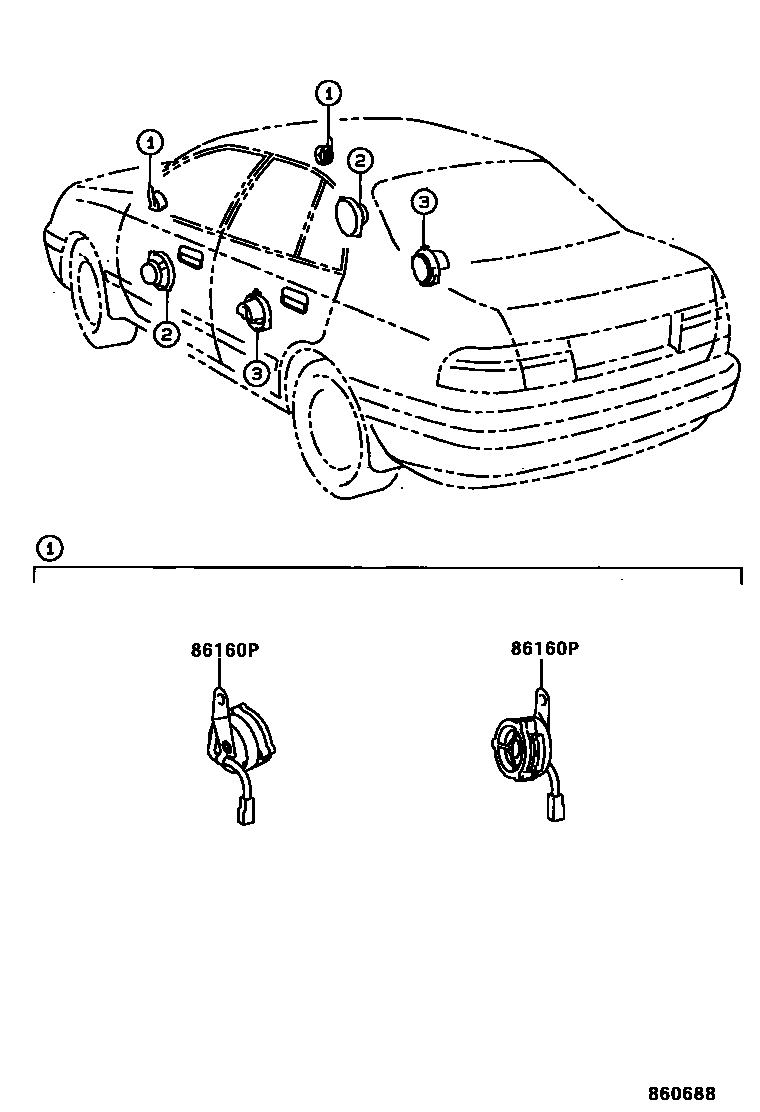

86160SPEAKER ASSY, FRONT NO.1

main86160-0W010iST191..JPP..GL;AT190,CT190..JPP199410-199607

20W,PHILIPS

main86160-20810iAT190,CT190,ST191..JPP199203-199607

20W

main86160-20830iAT190,ST191..JPP199203-199607

10W

main86160-2B100iAT190,CT190,ST191..JPP..GL199205-199607

15W

86160PSPEAKER ASSY, FRONT NO.2

main86160-20840iAT190,ST191..JPP199203-199607

RH

main86160-20850iAT190,CT190,ST191..JPP..GL199203-199607

LH

2 parts on this diagram · 2 diagrams in section
