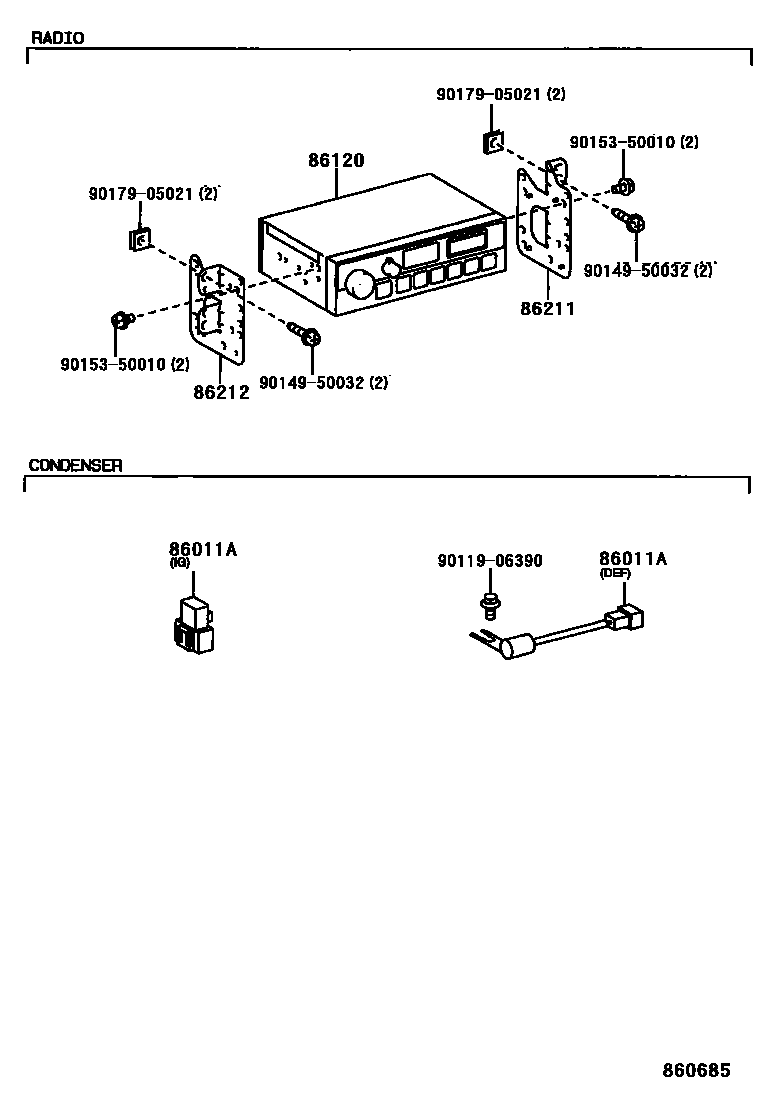

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04083iST191..JPP199203-199606

IG

main90980-04097iAT190,ST191..JPP199204-199607

CTR STOP LAMP

main90980-04097iAT190,CT190..JPP199212-199402

W(*HSL),IG

main90980-04097iAT190,CT190..JPP199212-199402

W(*HSL),CTR STOP LAMP

main90980-04111iAT190,CT190,ST191..JPP..SED199203-199204

W(*HSL),IG

main90980-04112iAT190..JPP..RHD..XL199203-199212

W/OW(*HSL)

main90980-04112iAT190..JPP..RHD..XL199203-199212

DEF

main90980-04119iAT190,CT190,ST191..JPP199212-199607

DEF

main90980-04119iAT190..JPP199607-199711

86120RECEIVER ASSY, RADIO

main86120-17280iAT190..JPP;ST191..JPP..GL199203-199805

MATSUSHITA,ID=57201,AM/FM W/CASSETTE,2 SPEAKER

main86120-17280iST191..JPP..XL199402-199606

MATSUSHITA,ID=57201

main86120-17290iAT190..JPP..XL199203-199601

MATSUSHITA,ID=57402,AF/FM MPX ETR W/CASSETTE, 4-SPEAKER

main86120-17290iAT190,ST191..JPP..SED..GL199203-199805

MATSUSHITA,ID=57402,AM/FM ETR W/CASSETTE

main86120-17290iCT190..JPP199203-199601

MATSUSHITA,ID=57402,AM/FM 6 SPEAKERS

main86120-1A020iAT190..JPP;ST191..JPP..SED..GL199203-199805

FUJITSU TEN,ID=12201,AM/FM MPX ETR, 2-SPEAKER

main86120-2A070iAT190,CT190..JPP;ST191..JPP..SED..GL199203-199805

MATSUSHITA,AM/FM, 2-SPEAKER

main86120-2A190iAT190..JPP;ST191..JPP..SED..GL199203-199402

MATSUSHITA,ID=57202,MW/SW 5-PB, 2-SPEAKER

sub86120-35100

main86120-2A190iAT190..JPP;ST191..JPP..GL199402-199805

MATSUSHITA,ID=57202,MW/SW 5-SP,2-SPEAKER

sub86120-35100

main86120-2B360iAT190,CT190..JPP;ST191..JPP..SED..GL199203-199805

MATSUSHITA,ID=57400,MW/FM W/CASSETTE & ARI,2 SPEAKER

main86120-35080iAT190,CT190,ST191..JPP..SED199203-199402

MATSUSHITA,ID=52100,AM,2 SPEAKER

sub86120-60N00

main86120-35090iAT190,CT190..JPP;ST191..JPP..SED..GL199203-199805

MATSUSHITA,ID=57400,LW/MW/FM ETR W/CASSETTE & ARI,2 SPEAKER

main86120-35110iAT190,CT190..JPP;ST191..JPP..SED..GL199203-199402

MATSUSHITA,ID=52101,AM, 4-SPEAKER

86211BRACKET, RADIO, NO.1

main86211-20310iAT190,ST191..JPP..RHD199203-199711

main86211-20320iAT190,CT190,ST191..JPP..LHD199203

86212BRACKET, RADIO, NO.2

main86212-20300iAT190,ST191..JPP..RHD199203-199711

main86212-20310iAT190,CT190,ST191..JPP..LHD199203

9011906390

main90119-06390

9014950032

main90149-50032

9015350010

main90153-50010

9017905021

main90179-05021

8 parts on this diagram · 2 diagrams in section
