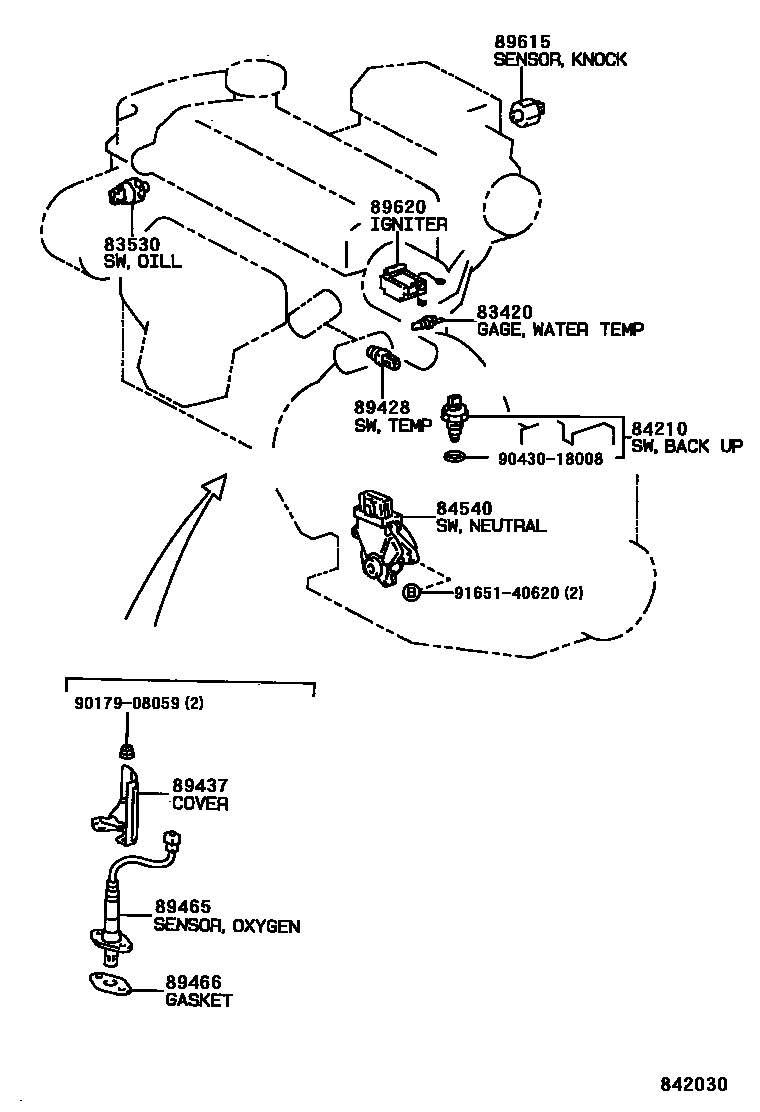

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSON 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL SWITCH 0006 1INSTRUMENT PANEL SWITCH 0007 1COWL 0008 1COWL 0009 1COMBINATION SWITCH 0010 1COMBINATION SWITCH 0011 1ROOF,DOOR,FLOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAT190..JPP199203-199205

main83420-16040iST191..JPP199205-199606

NIPPONDENSO

main83420-20020iCT190..JPP199203-199601

main83420-20030iST191..JPP199205-199606

YAZAKI

sub83420-16040

main83420-20040iAT190..JPP199212-199411

NIPPONDENSO

main83420-20040iAT190..JPP199205-199711

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iST191..JPP199803

DENSO

main83530-30051iAT190..JPP199203-199205

sub83530-60050

main83530-30090iAT190..JPP199205-199711

sub83530-60020

main83530-30090iST191..JPP199203-199411

NIPPONDENSO

sub83530-60020

main83530-30090iST191..JPP199203-199402

YAZAKI

sub83530-60020

main83530-30100iCT190..JPP199203-199601

sub83530-60010

main83530-60020iST191..JPP199711-199803

main83530-60020iST191..JPP199803

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT190,ST191..JPP..MTM199203-199606

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAT190..JPP..ATM199302-199607

TOKAIRIKA

main84540-12210iAT190..JPP..ATM199302-199402

MATSUSITA

main84540-12210iAT190..JPP..ATM199402-199607

MATSUSHITA

main84540-16040iST191..JPP..ATM199203-199606

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAT190..JPP199203-199711

AISIN

main89428-33010iCT190,ST191..JPP199203-199606

89437COVER, SENSOR

main89437-20050iAT190..JPP..RHD;ST191..JPP..RHD..SED..GL199203-199402

89465SENSOR, OXYGEN

main89465-20300iAT190..JPP..RHD199211-199711

main89465-39435iST191..JPP..RHD..SED..GL199203-199711

89466GASKET, OXYGEN SENSOR

main89466-20020iAT190..JPP..RHD;ST191..JPP..RHD..SED..GL199203-199711

89615SENSOR, KNOCK CONTROL

main89615-12030iAT190..JPP..RHD..XL199402-199409

THAILAND SPEC,TOYOTA

sub89615-22050

main89615-12030iAT190..JPP..RHD..XL199402-199409

SINGAPORE SPEC,TOYOTA

sub89615-22050

main89615-12030iAT190..JPP..RHD..XL199402-199711

SINGAPORE SPEC OR THAILAND SPEC,TOYOTA

sub89615-22050

main89615-12030iAT190..JPP..RHD199203-199402

TOYOTA

sub89615-22050

main89615-20030iST191..JPP199203-199606

TOYOTA

sub89615-32040

main89615-22030iAT190..JPP..RHD..XL199402-199711

SINGAPORE SPEC OR THAILAND SPEC,MATUSITA

main89615-22030iAT190..JPP..RHD199203-199402

MATUSITA

main89615-22030iAT190..JPP..RHD..XL199402-199409

THAILAND SPEC,MATUSITA

main89615-22030iAT190..JPP..RHD..XL199402-199409

SINGAPORE SPEC,MATUSITA

main89615-33020iST191..JPP199203-199606

NIPPONDENSO

sub89615-32030

89620IGNITER ASSY

main89620-12440iAT190..JPP199203-199711

main89621-16020iST191..JPP199203-199606

sub89621-26010

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

13 parts on this diagram · 11 diagrams in section
