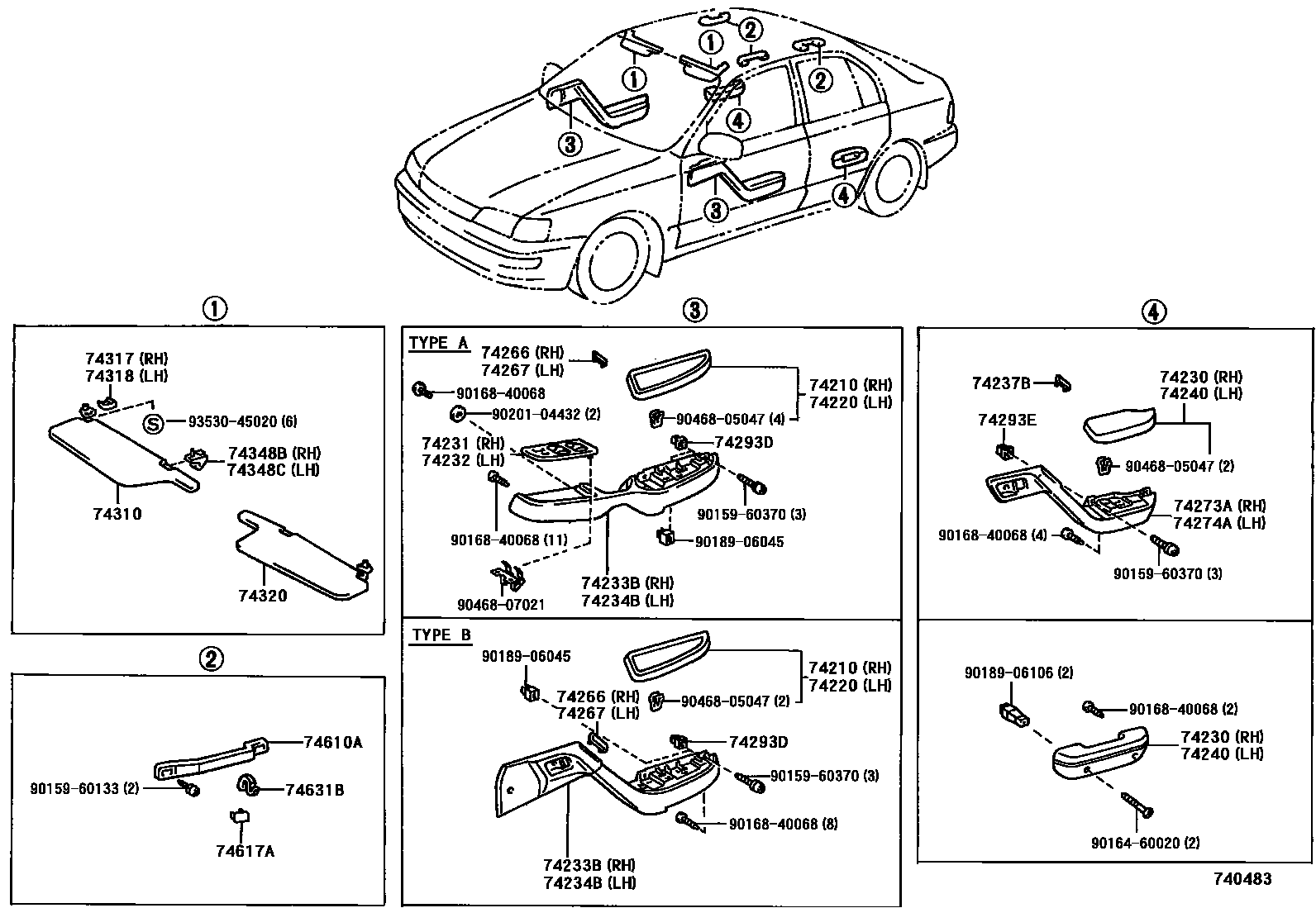

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
74220ARMREST ASSY, FRONT, LH
74230ARMREST ASSY, REAR, RH
CKD SPEC & W(SPEAKER),BLACK,TRIM2#
CKD SPEC & W(SPEAKER),DK.BLUE,TRIM8#
SHADOW GRAY,TRIM1#
W(POWER WINDOW),SHADOW GRAY,TRIM1#
W(POWER WINDOW),BLACK,TRIM2#
BLACK,TRIM2#
ANTELOPE,TRIM4#
W(POWER WINDOW),DK.BLUE,TRIM8#
DK.BLUE,TRIM8#
74231PANEL, FRONT ARMREST BASE, UPPER RH
BLACK,TRIM2#,8#
BLACK,TRIM2#
BLACK,TRIM2#,4#,8#
BLACK,TRIM1#
BLACK,TRIM1#,8#
ANTELOPE,TRIM4#
ANTELOPE,TRIM8#
DK.BLUE,TRIM8#
74232PANEL, FRONT ARMREST BASE, UPPER LH
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM1#,8#
BLACK,TRIM1#
DK.BLUE,TRIM8#
74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH
TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#
NEW ZEALAND SPEC OR W(POWER WINDOW);TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#
NEW ZEALAND SPEC;TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#
NEW ZEALAND SPEC;TYPE B:REFER TO ILLUSTRATION,ANTELOPE,TRIM4#
TYPE B:REFER TO ILLUSTRATION,ANTELOPE,TRIM4#
TYPE B:REFER TO ILLUSTRATION,DK.BLUE,TRIM8#
NEW ZEALAND SPEC;TYPE B:REFER TO ILLUSTRATION,DK.BLUE,TRIM8#
TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#
TYPE A:REFER TO ILLUSTRATION & W(POWER WINDOW),SHADOW GRAY,TRIM1#
TYPE A:REFER TO ILLUSTRATION & W(POWER WINDOW),BLACK,TRIM2#
TYPE A:REFER TO ILLUSTRATION & W(POWER WINDOW),ANTELOPE,TRIM4#
TYPE A:REFER TO ILLUSTRATION & W(POWER WINDOW),DK.BLUE,TRIM8#
TYPE A:REFER TO ILLUSTRATION,DK.BLUE,TRIM8#
74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH
TYPE A:REFER TO ILLUSTRATION & W(POWER WINDOW),SHADOW GRAY,TRIM1#
TYPE A:REFER TO ILLUSTRATION & W(POWER WINDOW),BLACK,TRIM2#
TYPE A:REFER TO ILLUSTRATION & W(POWER WINDOW),DK.BLUE,TRIM8#
TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#
TYPE B:REFER TO ILLUSTRATION,ANTELOPE,TRIM4#
TYPE B:REFER TO ILLUSTRATION,DK.BLUE,TRIM8#
74237BCAP, DOOR ARMREST BASE
DK.BLUE,TRIM8#
74240ARMREST ASSY, REAR, LH
SHADOW GRAY,TRIM1#
W(POWER WINDOW),SHADOW GRAY,TRIM1#
W(POWER WINDOW),BLACK,TRIM2#
BLACK,TRIM2#
ANTELOPE,TRIM4#
DK.BLUE,TRIM8#
W(POWER WINDOW),DK.BLUE,TRIM8#
74266CAP, DOOR ARMREST, RH
74267CAP, DOOR ARMREST, LH
74273APANEL, REAR DOOR ARMREST BASE, LOWER RH
SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#
74274APANEL, REAR DOOR ARMREST BASE, LOWER LH
DK.BLUE,TRIM8#
74293DPLATE, FRONT DOOR ARMREST, NO.1
74293EPLATE, REAR DOOR ARMREST, NO.1
74310VISOR ASSY, RH
W(MOON ROOF),GRAY,TRIM2#
W(MOON ROOF),GRAY,TRIM2#,8#
W(MOON ROOF),GRAY,TRIM1#,8#
W(MOON ROOF),GRAY,TRIM1#
W(MOON ROOF),ANTELOPE,TRIM4#
W(MOON ROOF),GRAY,TRIM2#,8#
W(MOON ROOF),GRAY,TRIM1#,8#
GRAY,TRIM2#,8#
GRAY,TRIM2#
GRAY,TRIM1#
GRAY,TRIM1#,8#
ANTELOPE,TRIM4#
GRAY,TRIM1#
GRAY,TRIM2#,8#
GRAY,TRIM1#,8#
74317COVER, VISOR BRACKET, RH
74318COVER, VISOR BRACKET, LH
74320VISOR ASSY, LH
W(MOON ROOF),GRAY,TRIM1#,8#
W(MOON ROOF),GRAY,TRIM1#
W(MOON ROOF),GRAY,TRIM2#,8#
GRAY,TRIM1#,8#
GRAY,TRIM2#,8#
GRAY,TRIM1#
W(MOON ROOF),GRAY,TRIM2#,8#
W(MOON ROOF),GRAY,TRIM2#
W(MOON ROOF),GRAY,TRIM1#,8#
W(MOON ROOF),GRAY,TRIM1#
W(MOON ROOF),ANTELOPE,TRIM4#
74348BHOLDER, VISOR, RH
74348CHOLDER, VISOR, LH
74610AGRIP SUB-ASSY, ASSIST
GRAY,TRIM2#,8#
GRAY,TRIM1#,8#
ANTELOPE,TRIM4#
74617APLUG, ASSIST GRIP
74631BHOOK, COAT
9015960133
9015960370
9016460020
9016840068
9018906045
9018906106
9020104432
9046805047
9046807021
9353045020
34 parts on this diagram · 1 diagram in section
